50mm Ball Valve Type Non-Clog Blast Gate for Workshop Dust Extraction Network

Model details

Platform
Printables
Price
Free
License
CC-BY-NC-SA
Non-commercial use only, with credit; share remixes under the same license.
Formats
3MFSTL
  • 32 Likes
  • 206 Downloads
  • 0 Makes
  • 2 Comments
  • 1 316 Views

Author:Tomac

Published

Download on Printables

Description

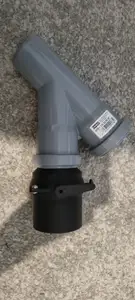

I adapted the model from PeterH1500 (many thanks!) to the gray KG pipes which have a diameter of 50mm.

I made the following changes: - Inlet diameter changed to 50mm - Changed the diameter of the outlet so that a 50 mm pipe can be inserted - I hollowed out the ball so that not so much material is used. - All parts have been reduced to 50% of the size. - Some more smal changes

The ball should be printed with support structure (e.g. tree).
