Spool Holder Bearings

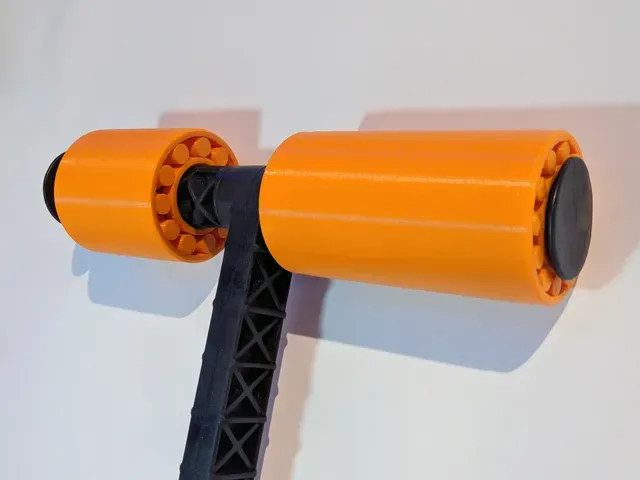

I've designed two bearings that you can slide on the stock i3 MK3S spool holder, since this design isn't working very well. The bearings are for ColorFabb 750 gram spools and for the spools that Prusa ships with their printers (I believe these are all 750 gram silver PLA spools).

The tolerances on the bearings are pretty tight (±0.15mm), so make sure that your printer is capable of printing these. I printed mine in Dutch Orange PLA from ColorFabb, with the stock PLA/PHA profile in PrusaSlicer at 0.2mm layer height, and I didn't have any issues.

You probably need to "loosen" the rollers a bit after printing, which can be done by trying to gently pry them apart. Once every roller is free, you can feel the bearing spinning freely.

Support

If you'd like to support me for the 3D models I distribute for free, you can use my AliExpress affiliate link: https://s.click.aliexpress.com/e/_oFT8Gq6

Whenever you buy something through this link, I get a small kickback without costs for you ;)

Thanks for your support!

Print Settings

Printer Brand: Prusa

Printer: I3 MK3S

Rafts: No

Supports: No

Resolution: 0.2mm

Infill: 15%

Filament: ColorFabb PLA/PHA Dutch Orange
