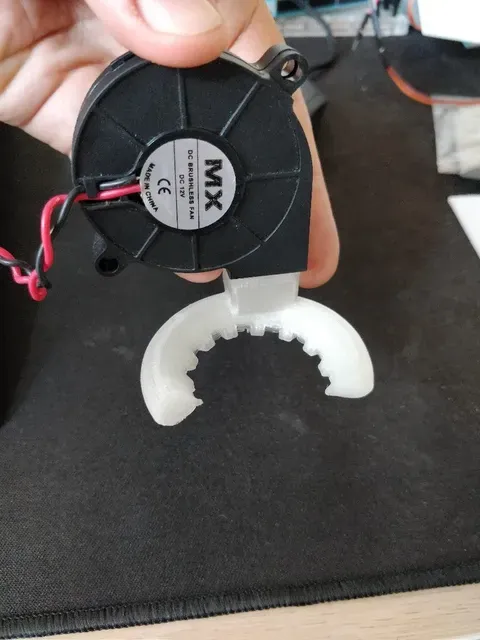

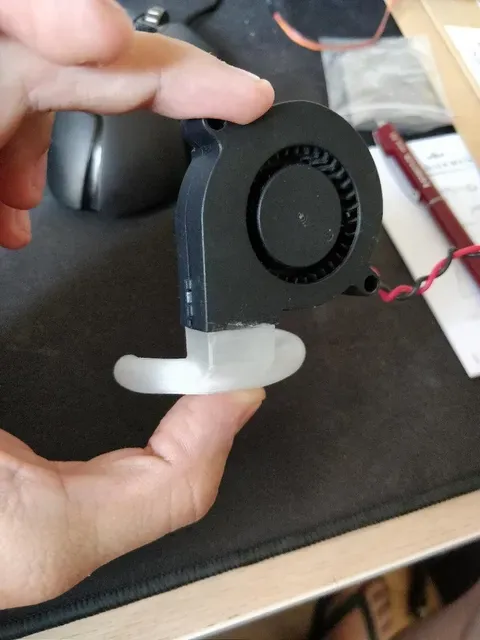

Yet Another Anycubic i3 Mega Fanduct (YAAIMF) for 5015 blower fan

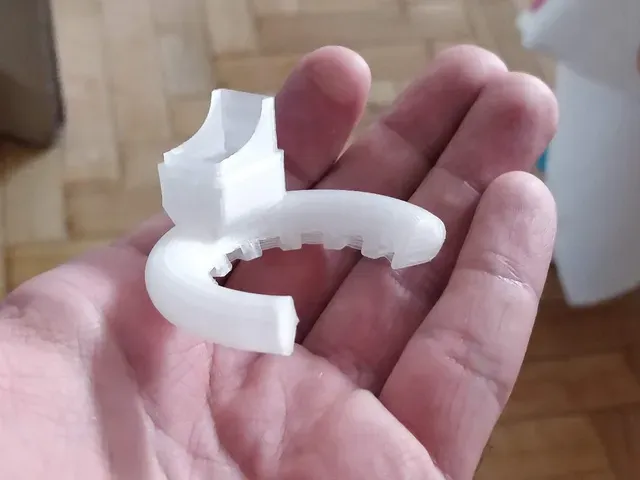

Circular fanduct with a cut to allow a better view of the nozzle (and good access to it), for Anycubic i3 Mega modified printhead with 5015 blower.

High airflow and multiple stream directions.

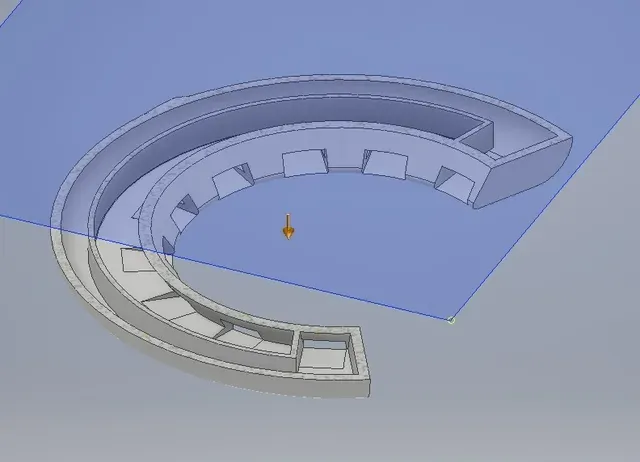

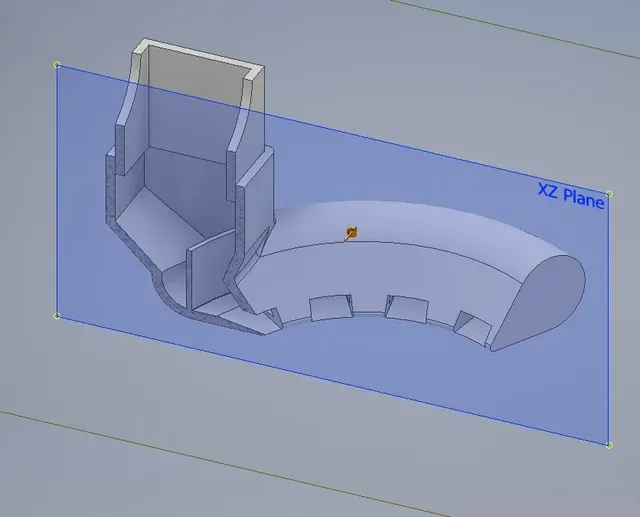

The final stream holes have a dedicated channel, for better airflow routing.

The diameter and the cut on the duct has been optimized to fit the bulkier E3D V6 original block.

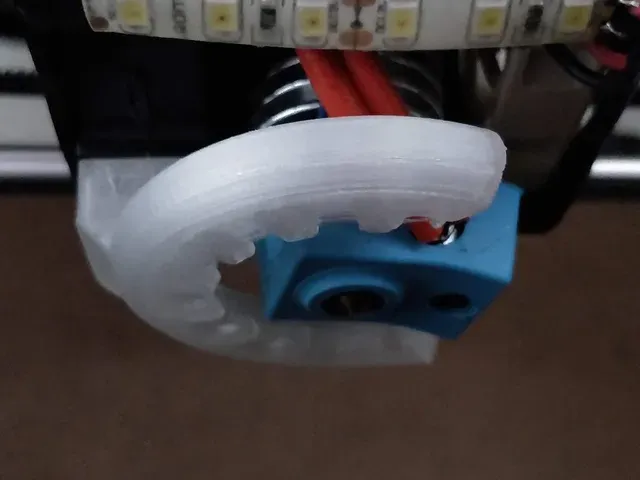

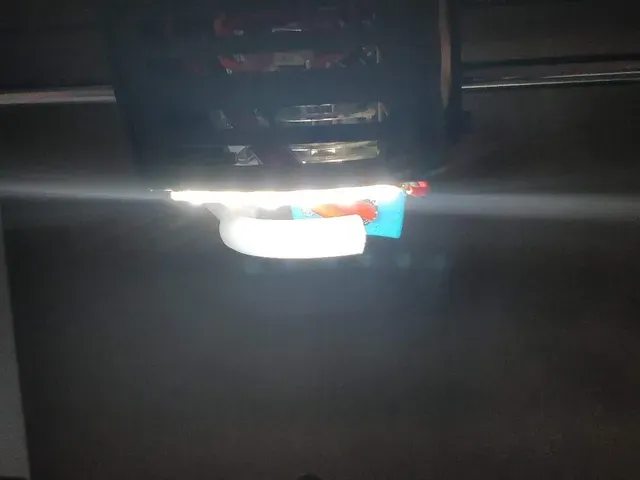

I have it installed on this printhead: https://www.thingiverse.com/thing:2706092

UPDATE:

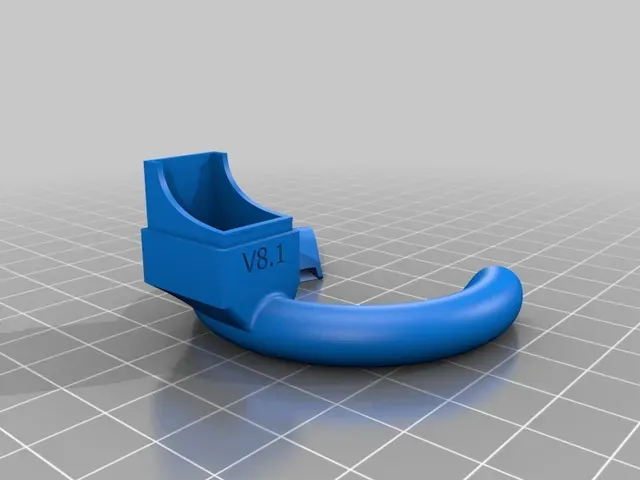

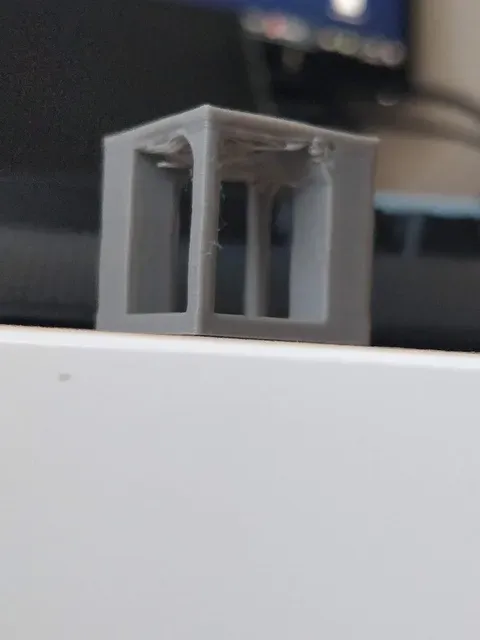

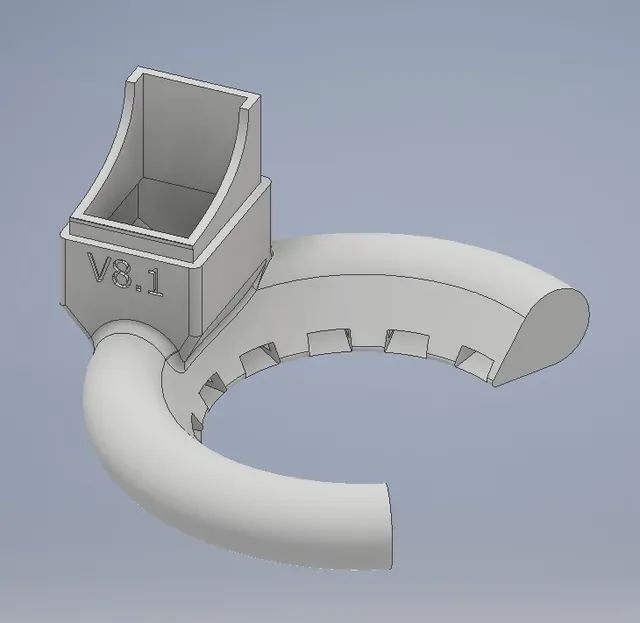

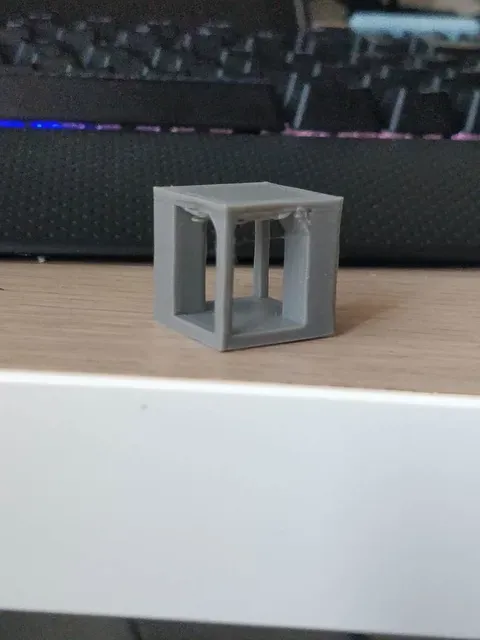

V8.1: Improved airflow redirect to the tip of the hotend by modifying openings angle. Attached pictures of the stress test cube printed with this version.

V8.1LF: Modified for Lower Airflow, so it does not hit the nozzle, as some users have noted.

V8.1ULF: Ultra Low Flow version, with airflow directed even lower.

Print Settings

Printer:

Anycubic i3 Mega

Rafts: No

Supports:

No

Resolution: 0.2

Notes:

ABS or PETG

Category: 3D Printer Parts
