Geeetech A10 Power Supply Cover for 92 mm Fan (maybe Ender 3)

Geeetech A10 Cover for the Power Supply to mount a 92 mm cooling fan.

This may also fit on an Ender 3, but you have to check that beforehand.

Warning: Opening a Power Supply is very dangerous. So don't open it if you don't know exactly what you are doing.

THERE ARE 5 DIFFERENT OPTIONS:

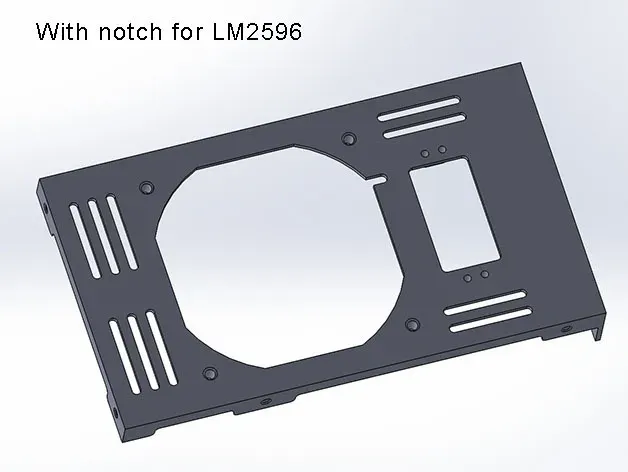

1: PSU-Cover for threaded inserts and with notch for LM2596 enclosure

2: PSU-Cover for threaded inserts but without notch for LM2596 enclosure

3: PSU-Cover without threaded inserts but with notch for LM2596 enclosure

4: PSU-Cover without threaded inserts and without notch for LM2596 enclosure

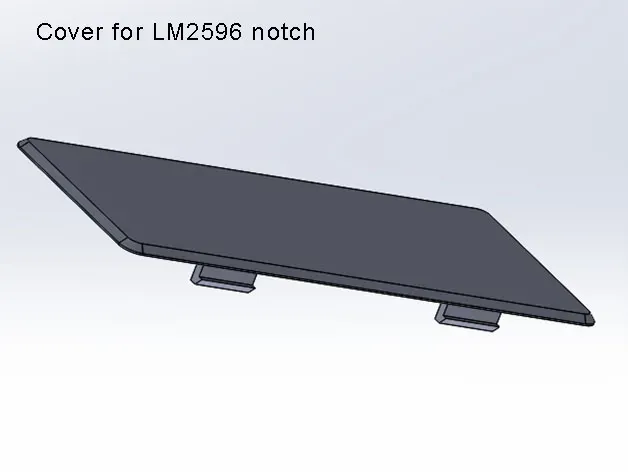

5: Cover for LM2596 enclosure notch. Just in case you already printed the PSU-Cover with LM2596 notch, but don't need to mount an LM2596 enclosure anymore.

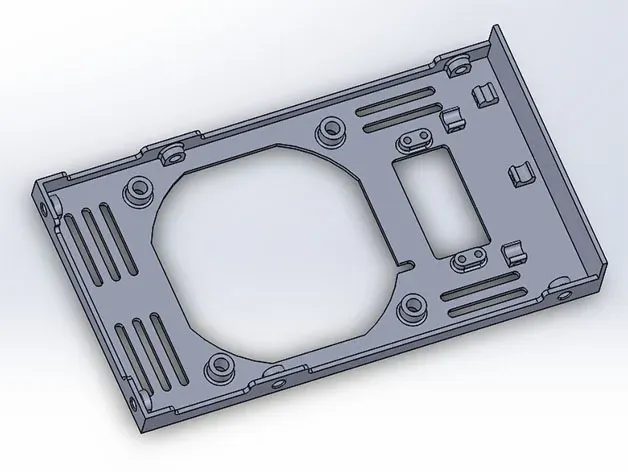

PSU-COVER WITH THREADED INSERTS:

This cover is desigened to be mounted with threaded inserts. Also the mounting holes for the 92 mm Fan are meant for threaded inserts. You can find some Info about threaded inserts on the YouTube channel of CNC-Kitchen.

PSU-COVER WITHOUT THREADED INSERTS:

This cover has smaller screw holes so you can screw directly into the plastic and don't need to attach threaded inserts in order to mount this cover and the fan.

ADDITIONAL PARTS NEEDED:

4 Screws M4x12mm (for the fan)

1 Cooling fan 92 mm. I'm using a Noctua NF-A9 FLX, but any other 92 mm fan should fit too.

OPTIONAL ADDITIONAL PARTS (depends on the type of cover you choose):

4 Screws M3x10mm (for M2596 Buck Converter Enclosure)

4 Threaded inserts M4x8x6 (for the fan)

6 Threaded Inserts M3x6x5

1 LM2596 Buck Converter Enclosure https://www.thingiverse.com/thing:4096861

1 Buck Converter
