Subaru Impreza GC8 Replacement Parts Number: 66201FC020 and 66201FC030

2024/01/12 - Update. The resin printed part became brittle and unfortunately broke after almost a year of use. Perhaps a ‘thicker’ version or different resin would hold up longer.

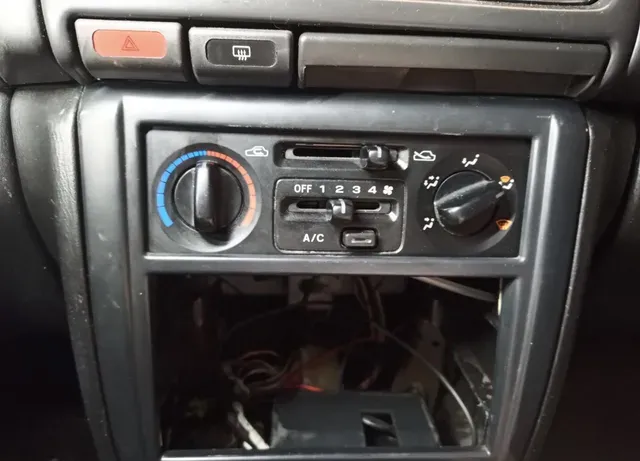

2023/01/28 Replacement brackets to hold heater instrument control in place. Contains direct replacement for out-of-production parts 66201FC020 and 66201FC020.

I needed this part to convert to double-din console, European Subaru dealer couldn't order this part anymore. Original part is 1mm thick, recreated part is 2mm thick due to needed sturdiness and fits fine, without spacing.

Print in resin or be wary of print direction and warping temperatures for inside of car.

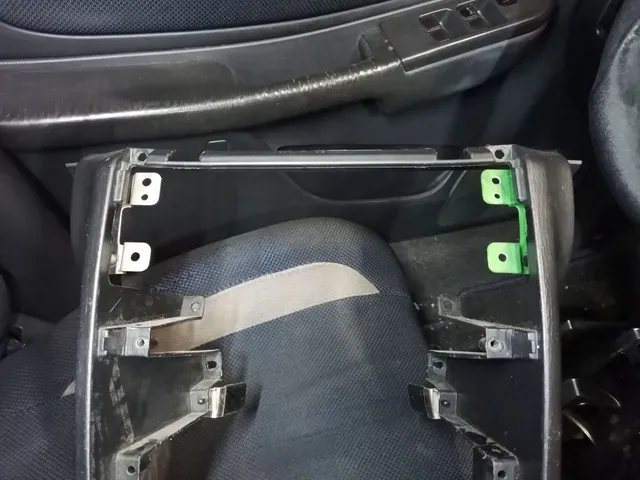

Double holes should be on top:

66201FC020 is left hand side (LH) 66201FC030 is right hand side (RH)

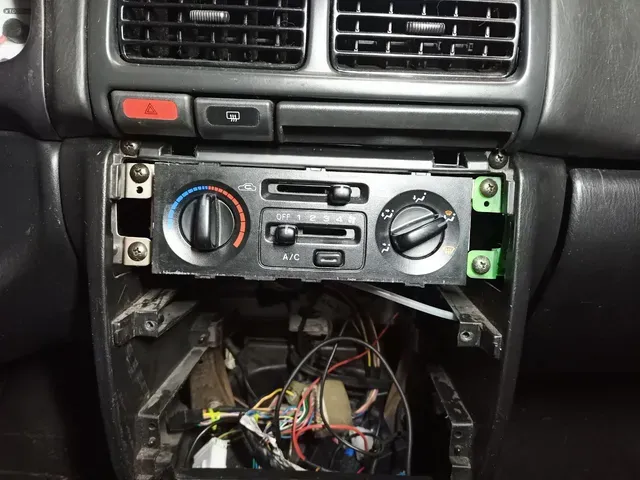

Installation Advice:

- Insert into center sidewall first, since these are blind screws otherwise. Screw and bracket need to be fit tightly, otherwise heater control panel will move forward slightly creating a gap with the panel. - Insert center console back into dash. - Move heater instrument in place and screw in place - Place dash front panel and click in place - Put gear shift panel in back place - Put handbrake panel back in place
