E-Stop Key Cap

Model details

Platform
Printables
Price
Free
License
CC-BY-NC-SA
Non-commercial use only, with credit; share remixes under the same license.
Formats
STLSTEP
  • 1 525 Likes
  • 2 432 Downloads
  • 50 Makes
  • 58 Comments
  • 21 398 Views

Author:Adam Cook

Published

Download on Printables

Description

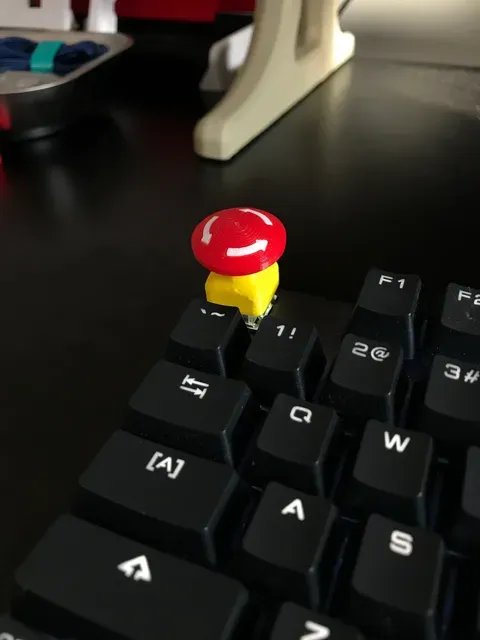

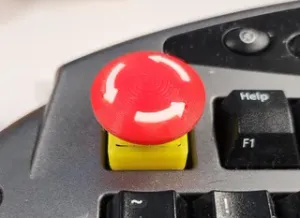

Here is an E-stop key cap

I printed mine out of PETG though PLA is probably okay.

No Supports for any of the components needed

I printed my parts at 0.2 layers with a 0.4 nozzle. If you want finer detail you can try a smaller nozzle diameter.

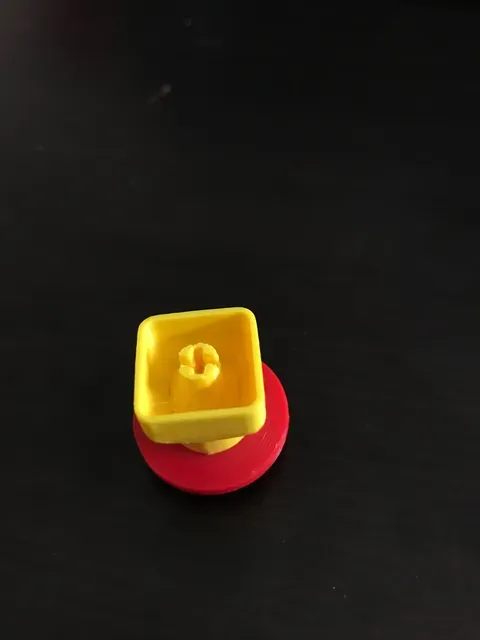

You will probably need to glue the mushroom part of the button onto the base.

I have provided two base models, one with a small amount of support that would need to be cut off after its printed and the other without support. I printed the no support version without issue but if you have issues with the middle piece detaching from the build plate I would try the base with support.

Happy printing and thank you for the support!
