Marble run - Base Tile & Elevation System (Height stones) (Gravitrax compatible)

Update 12.08.2025:

- Added Pillars in 50mm, 60mm, 80mm, and 90mm - NOTE: The “Pillars height” is not its actual height, but the total height of the tower you get using it. Example: Base + Pillar50 + Head (Another Base) has a total Height of 50mm Update 15.02.2023:

- Added a blind_plug.stl to close unused entrances. This is sometimes required for elements like this funnel Update 13.02.2023:

- Fixed missing stabilizer elements in Balcony_B - Added simple Base Tile in 5mm and 10mm. - May get used as simple height stone as well Update 12.02.2023:

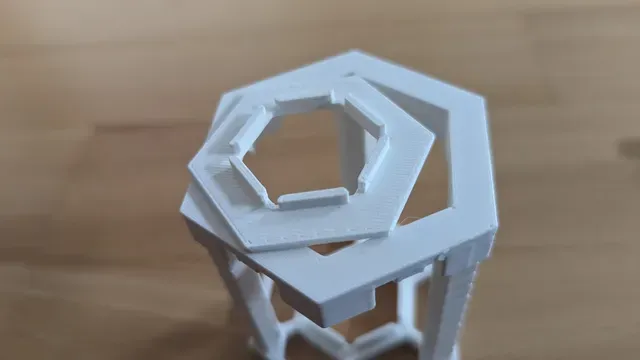

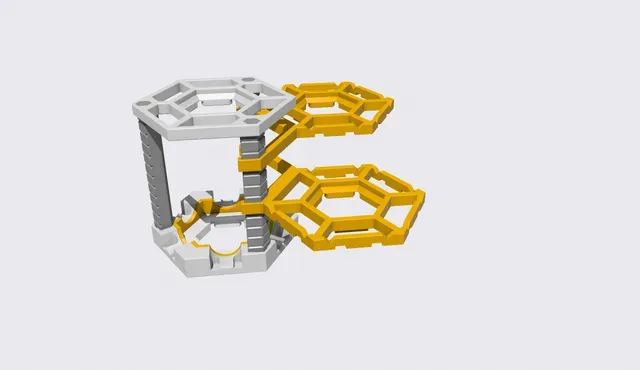

- Improved the Balcony System. - Added a second balcony variant - you can clip balconys all around the hexagon now. - Use 2 balcony clips to increase stability. - Balcony clips are comaptible to my grid system and thus can be extended to bridges or plates. - Added a few more pillar sizes up to 24mm Compatibility

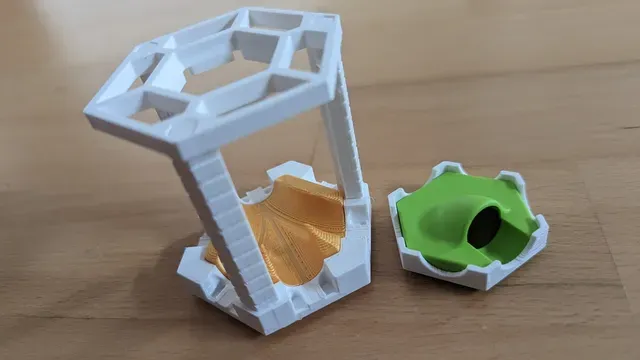

- Gravitrax ( incl. Green insets with inset adapter) - JDO Solutions Insets - JDO Solutions Elevation System - All other custom Insets that use the original dimensions - My Bridges, Platforms and height stones as well as all my other marble run designs Differences to existing solutions

- Like all my marble run designs, the connectors are tighter to ensure a good and stable connection between all parts. - Easy print without support or gluing (special connector design) - Compatible with all kinds of insets (there are adapters) - Option to attach balconies - Tighter connection to rail elements. Print

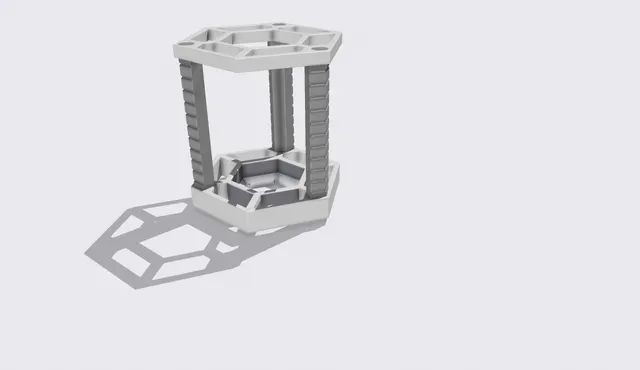

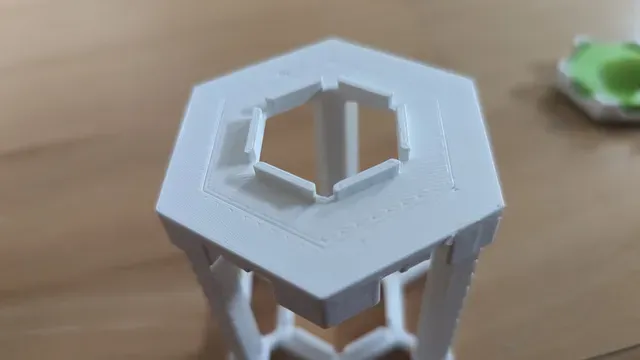

- Can be printed in 0.3mm DRAFT without any isssues. - Print 3 Pillars, Base Tile, Connector and a head element and simply push everything together. There should be a tight fit.

Note: I am in no way affiliated with Ravensburger or Gravitrax. All parts are my own (derived) creations and serve a purpose or function that the original parts can not. However, they are compatible with most Gravitrax components or alternative Gravitrax-like marble run models. I do this purely as a hobby with no intention of making a profit.
