Harbor Freight 56610 Small Parts Organizer Divider Improvement

Harbor Freight sells a small organizer box that looks like it would be perfect for sorting small screws. Unfortunately, the designer didn't think things through very well and there is a sizable gap above the top of the dividers that allow tiny pieces to escape their compartments. This design addresses that flaw.

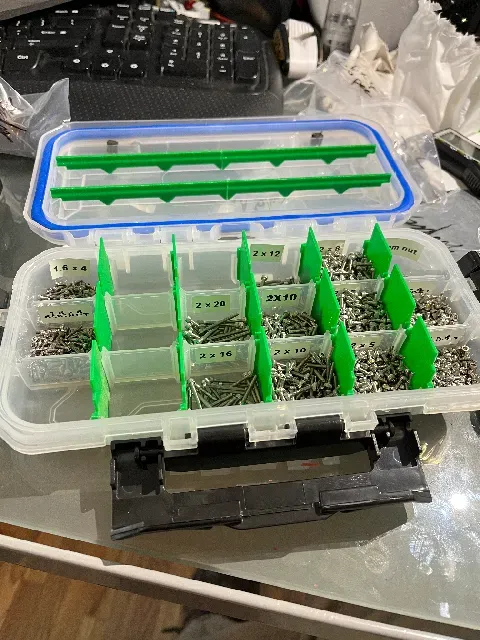

The three vertical dividers are direct replacements for the original dividers that are not tall enough. You will need 5 of each. The horizontal divider slips over the existing horizontal divider that is part of the lid. To simplify printing, the horizontal divider has been split in half; you will need to print 4 copies.

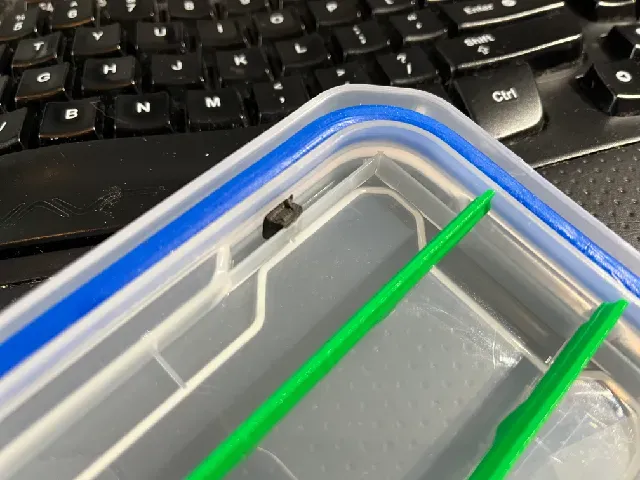

The "front" of the lid contains a gap above the outer two dividers that is not addressed by this design. I stuck a small piece of 6mm thick foam in the gap since that was easier than addressing the issue via printing.

Print Settings

Printer Brand:

Creality

Printer: Ender 3 Pro

Rafts:

No

Supports: No

Resolution:

.2mm

Infill: 100%

Filament: PrintBed PLA Red and Green

Notes:

The vertical dividers should be printed laying down on their flat side so no supports are needed.

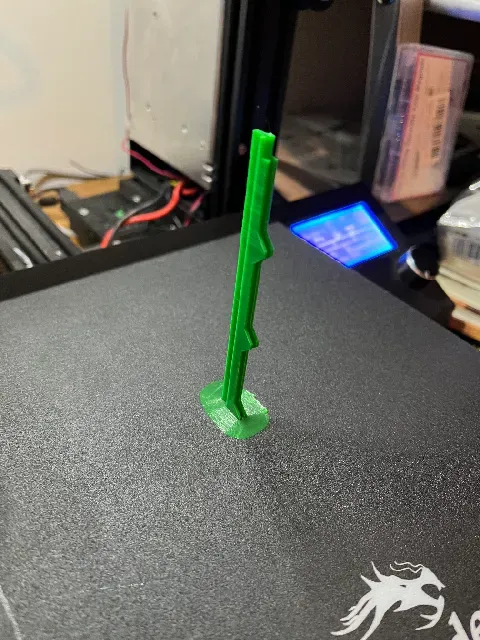

The horizontal divider should be printed vertically with the flat side down; no supports should be required as long as your printer can handle 45° overhangs. You will need to print 4 copies; I would recommend printing them individually to reduce the risk of printing issues since they are rather tall.
