QRP dipole antenna for ham radio, or short wave listening

Model details

Platform
Printables
Price
Free
License
CC-BY-NC
Print and modify for yourself with credit; no selling the model or prints.
Formats
STLSTEPF3D
  • 125 Likes
  • 649 Downloads
  • 5 Makes
  • 23 Comments
  • 4 373 Views

Author:3dprintguy

Published

Download on Printables

Description

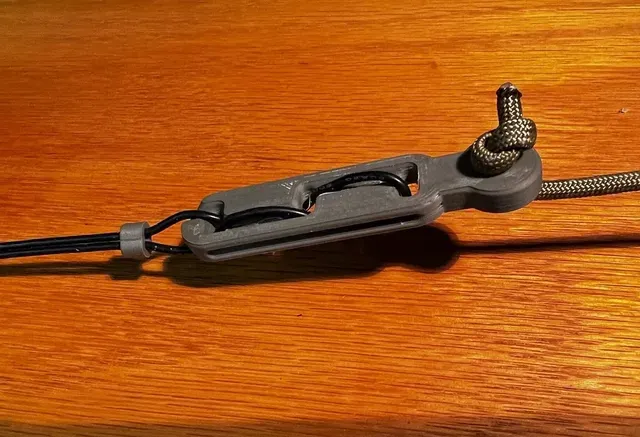

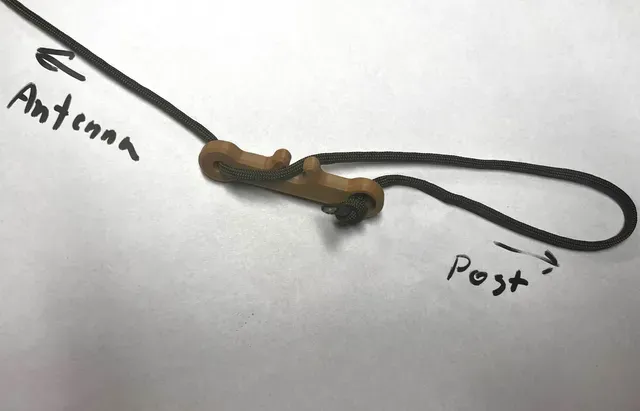

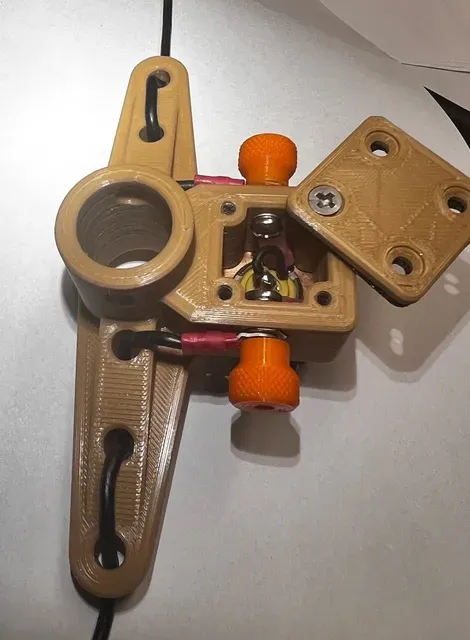

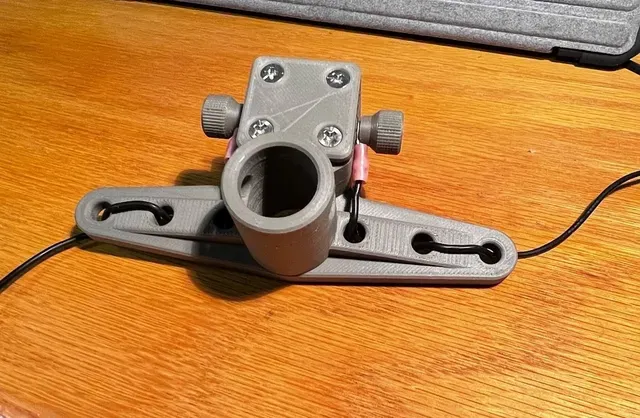

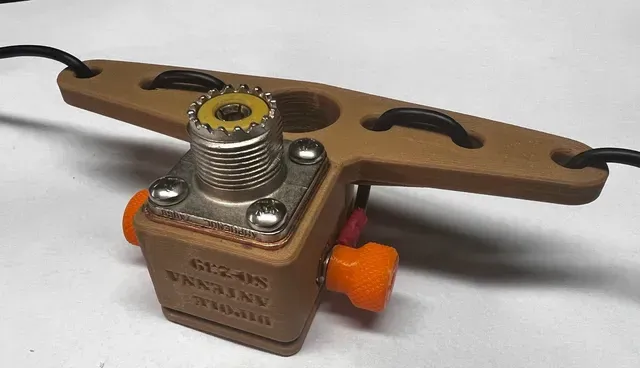

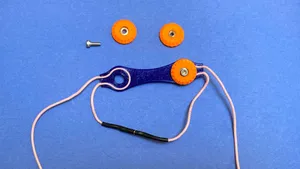

All components to print a center insulator, end insulators, and line tensioners to build a QRP dipole antenna for ham radio. I designed this for use with 6-32 screws, 18 gauge wire, SO-239 connector and 550 parachute cord. The antenna works well for temporary antenna applications. It can be mounted on a pole (the mast diameter socket is .73") or hung from a tree or structure. The antenna parts print well with PLA or nylon except the gasket which is best printed in TPU. I added an optional cap file to give the option of not using countersunk screws. Added 3 STL files to print spacers of different thickness to give more room for wiring if desired.

Note, user GuyO created a very useful adapter to allow this insulator to the attached to (3/4") NEMA electrical conduit. Link below.

https://www.printables.com/model/692598-dipole-antenna-pole-adapter/related

Tags

hamradioqrpdipolehamradioantennapotashortwaveshortwavelistening
