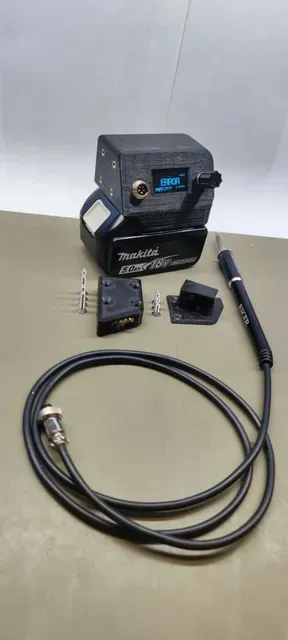

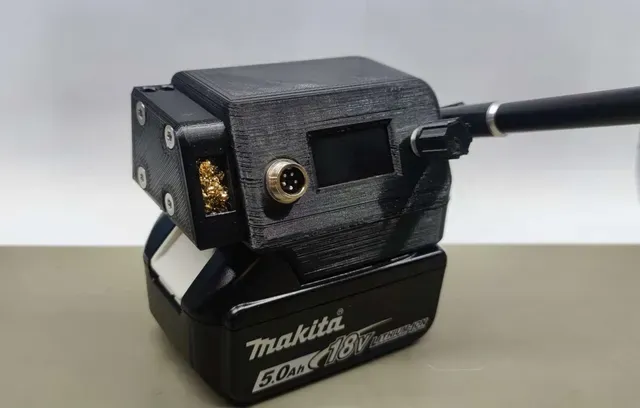

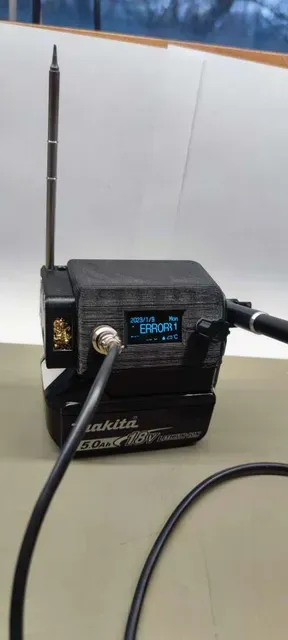

Makita 18V LXT battery T12 soldering station V2.0

This is my second attempt so build a portable soldering station for the makita LXT 18V battery environment.

I improved the old version a little bit. It's still not perfect, but it works for me.

There are some new features:

- ON/Off switch - Threads on the sides for additional modules - Iron stand module - Tip cleaner module(also holds two spare tips) If you want to add new modules, feel free and get creative.

I added a step of the whole thing, if you need to improve/modify it.

You will need the following parts:

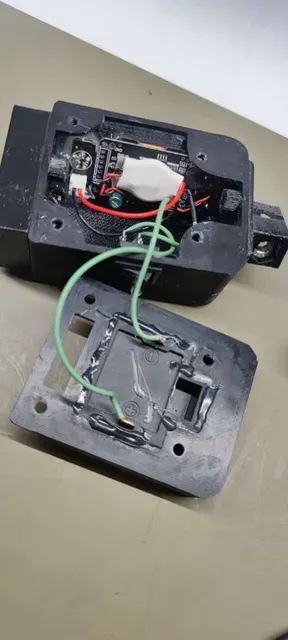

- KSGER STM32 OLED V2.01 Temperature Controller (AliExpress: https://bit.ly/3jZalin) - Makita Terminal Adapter (AliExpress: https://bit.ly/3vPj6OQ) - OR: https://www.printables.com/de/model/200596 - Some wires - 2x M5x8mm - 2x M5x12mm - 8x M4x5mm melt-in threads (If you use the controllerbox_melt version) - 4x M4x25mm screws to mount the cleanerbox - 3x M4x5mm screws for the iron stand - 1x M8 nut for the iron stand - On/off switch - Brass wool for the cleaner Additional:

- T12 Handle (AliExpress: https://bit.ly/379PiQg ) - T12 Tips (AliExpress: https://bit.ly/33lPRoG) I used this part from Gary Platek :https://www.thingiverse.com/thing:352094. Thanks!
