converting a wiper motor into a strong servo motor

Model details

Platform
Printables
Price
Free
License
CC-BY
Print, modify and use commercially — credit the author.
Formats
STL
  • 10 Likes
  • 49 Downloads
  • 0 Makes
  • 1 Comments
  • 1 072 Views

Author:freedom2000

Published

Download on Printables

Description

I had an old wiper motor made by Bosch.

They are very powerful, they draw 2 to 3A, do not run very fast but have really a lot of torque, much more than what I would ever need to rotate a solar tracker (even a big size one !).

However these motors are DC ones without any solution to control their position.

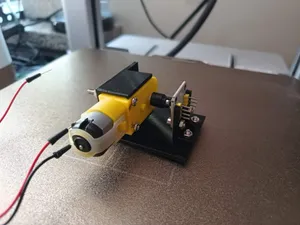

So I decided to add a cheap 12bits magnetic encoder AS5600 and transform this motor into a servo motor

Full details are on hackaday : https://hackaday.io/project/187675-converting-a-wiper-motor-into-a-strong-servo-motor

Print Settings

Printer Brand:

Prusa

Printer: i3 MK2S

Rafts:

No

Supports: No

Resolution:

.3mm

Infill: 20

Filament: no brand PET

Notes:

printed with plastic bottle filament : https://hackaday.io/project/185196-pullstruder-from-plastic-bottle-to-pet-filament

Category: Electronics
