Stepper motor covers with Prusa logo for i3 MK3S+, MMU2S/3 and MINI/+

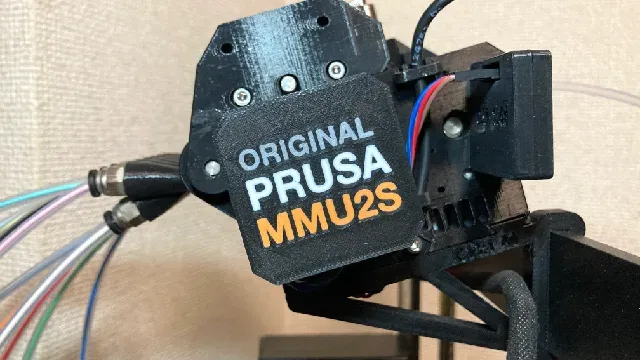

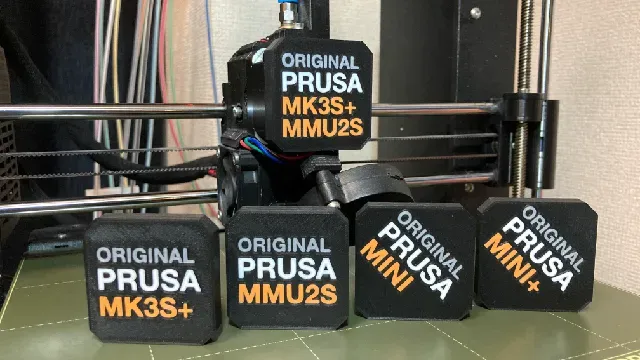

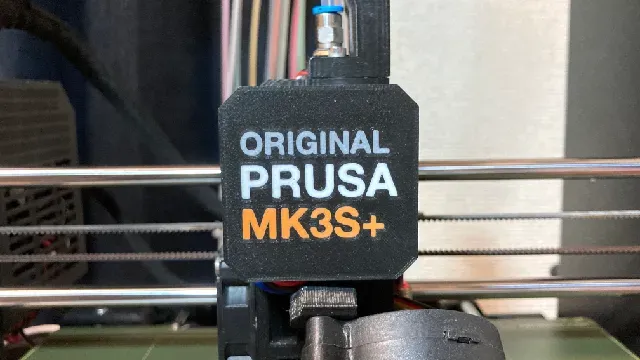

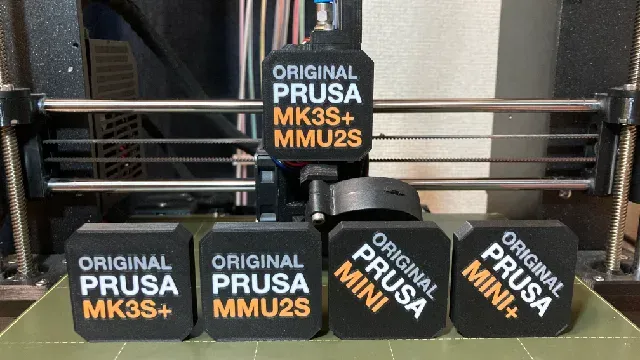

I designed covers to attach to stepper motors on the Prusa i3 MK3S+ , MMU2S and MINI/+ . The name of these printers are written on the bottom, so you can choose the suitable cover for your printer.

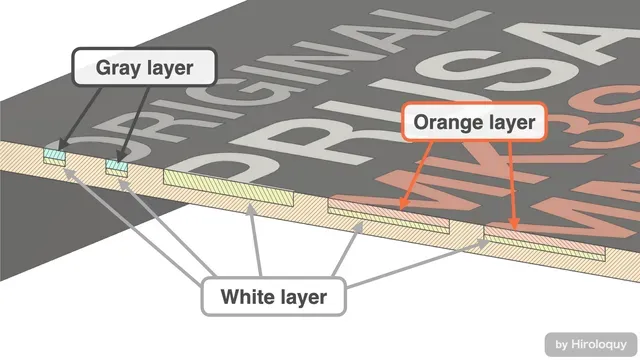

These covers were printed with Prusa MMU2S, using four colors. I added several white layers behind the orange and gray letters. This avoids the black darkening the other colors.

Print settings

- Slicer: PrusaSlicer 2.5.1 - Based preset: 0.15mm QUALITY @ 0.25 nozzle - Layer height: 0.15 mm - Infill: 20 % grid - Temperature: nozzle 195℃ / bed 65℃ - First layer speed: 16 mm/s - Rafts: No - Supports: No - Wipe tower: Yes 3D printer & filaments

- Printer: Prusa i3 MK3S+ & MMU2S - Nozzle: 0.25 mm (kaika625) - Z height: -1.495 mm (very low) - Sheet: Textured (Trianglelab) - Filament: PolyTerra PLA (Polymaker) - Color: Charcoal Black, Cotton White, Sunrise Orange, Fossil Grey Remix

I remixed these covers to be printable without MMU. You can print them by manually changing the filament . ≫ Stepper motor covers with Prusa logo for i3 MK3/S/+ and MINI/+

Acknowledgement

This design is inspired by the x-carriage-cover of the Original Prusa XL .

Update

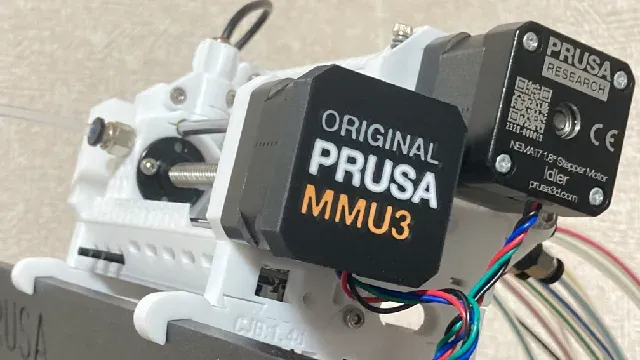

2024.11.17: I have just published 3D models of the MK3.5/S and MMU3 covers. Please print them and post your make!
