Blocky Trophy / Nearly-Voxel Trophy

This is a small trophy with a blocky design. At full-size, the trophy cup inserted into the base is 12 cm tall.

The cup of the trophy fits into the base with 0.2mm gaps on all sides, for a total of 0.4mm X and 0.4mm Y. Glue is optional, but may be needed if the gaps are too wide.

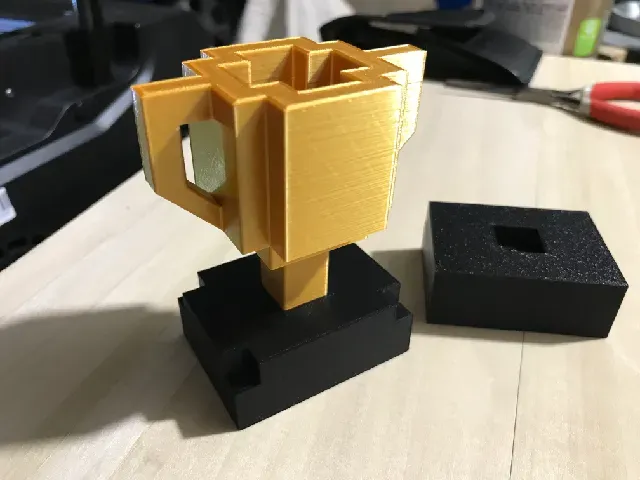

The sample photo was printed at 70% size, which still allows enough clearance for a good fit on my printer. If you print at less than 100% size, the fit between the trophy and base may be too tight on some printers.

I originally wanted to use true voxels, but I included some 45 degree angles so that it does not need supports.

I recommend printing the parts in the orientation used in the .stl files. The trophy cup and one base print upside-down, while the other base is right-side-up. Some bridging is used inside the hole in the simpler base and inside the bottom of the trophy cup.
