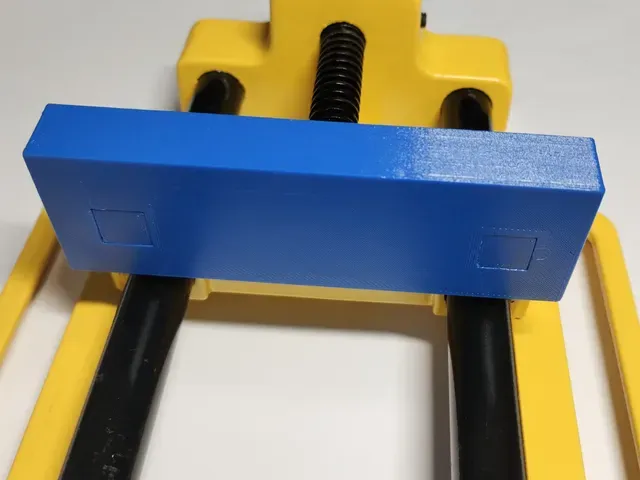

TOPEX Vice Jaws for fine parts — Image 2 of 4
TOPEX Vice Jaws for fine parts — Image 3 of 4
TOPEX Vice Jaws for fine parts — Image 4 of 4
3D model · Printables

TOPEX Vice Jaws for fine parts

Model details

Platform
Printables
Price
Free
License
CC-BY-SA
Print, modify and sell with credit; share remixes under the same license.
Formats
3MFSTLSTEPGCODE
  • 3 Likes
  • 25 Downloads
  • 0 Makes
  • 0 Comments
  • 250 Views

Author:Zbyněk Král

Published

Download on Printables

Description

Print instructions:

I recommend printing from PETG. To strengthen the area around the nut, I modified the print using modifiers. Please see the attached 3MF file for detailed print settings. Supports recommended.

Parts list:

- Printed Jaws [x2] - Printed Nut Caps [x4] - Hexagon Socket Head Cap Bolt M6x14 DIN 912 (optional stainless steel) [x4] - Square Thin Nuts M6 DIN 562 [x4] - Felt inserts 100x33x2 mm [x2] - Contact adhesive

Assembly Instructions:

Custom modification:

If you want to modify the model, I am attaching the STEP file and a link to my OnShape.

OnShape Link

Note:

Please don't forget to leave a rating or a comment. Feedback is important for me Thank you very much.

Happy printing!
