Ender 3 S1 Pro C270 Camera Mount

I remixed three camera mounts to make them work with the Ender 3 S1 Pro. You need 6-7 M3 20mm screws, the two screws that are in the corner of the printer and the hinge + screw from the c270.

What you need to print:

1x camera mount print

1x camera mount 1st part

1x camera mount 2nd part

1-2x tripod arms (depends on how long you want it)

1x tripod top

1x c270 hinge

First Source: https://www.thingiverse.com/thing:1228521

- use tripod_arms.stl, tripod_top.stl and c270_hinge_M3_screw.stl from the original source - I remixed a tripod arm which is the connection to the horizontal arm piece, it's the Camera_Mount_2nd_Part.stl Second Source: https://www.thingiverse.com/thing:3095730

- Remixed the swivel arm to make it fit with M3 screws (the hole for the bolt is still for M5. It can be a bit tricky to make the screw fit tightly but it works) - Used the extrusion base, remixed it together with the third source and made it fit with a M3 screw Third Source: https://www.thingiverse.com/thing:5560285

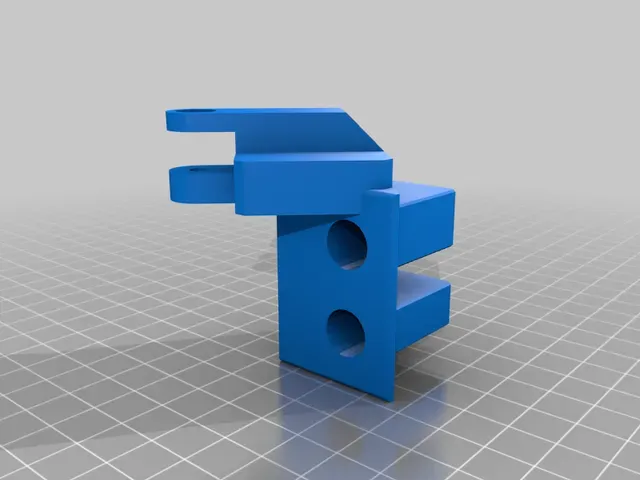

- Used the bottom part that fits into the corner of the printer - Made the holes for the screws a little bit larger because the stock screws wouldn't fit in my case - added the extrusion base from the second source on top Print Settings

Printer Brand:

Creality

Printer:

Ender 3

Rafts:

No

Supports:

Yes

Resolution:

0.2

Infill:

25%

Filament: Anycubic PLA Black

Category: Camera
