Logitech C920 Original Prusa Enclosure Mount

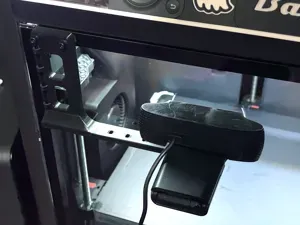

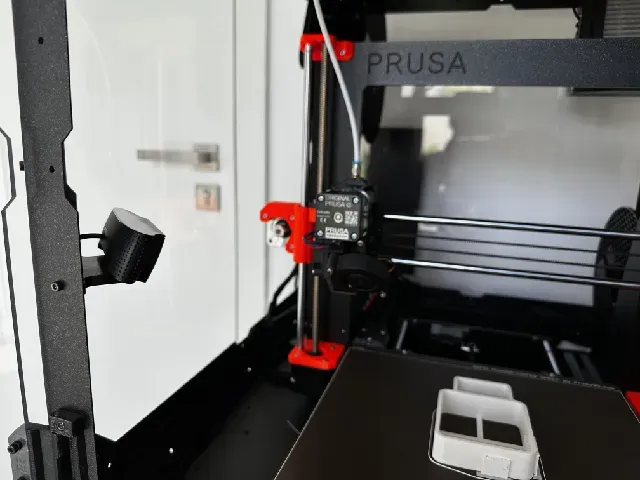

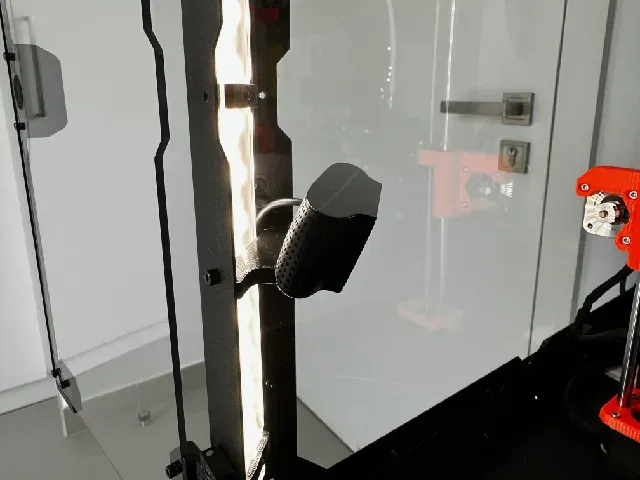

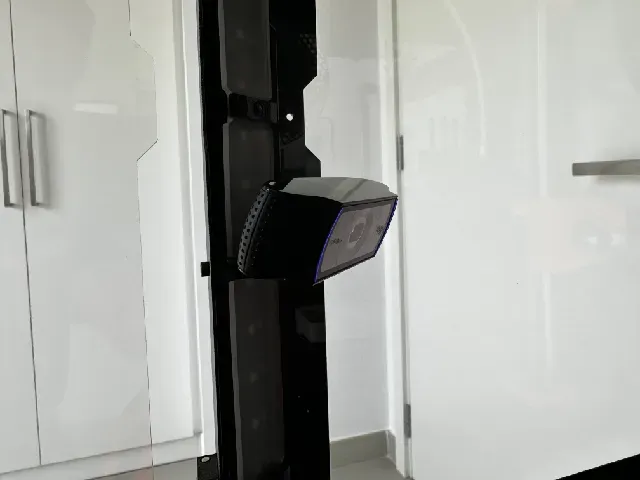

I was looking for a way to mount the Logitech C920 Pro inside the Original Prusa Enclosure . With the help of Markus and his Slim Mount Base , I modeled up a corner mount in front of the LED strip of the Original Prusa Enclosure . It is low profile to block as little light as possible while still being rugged enough to hold the camera.

Hardware needed

- 2x M3nS Nut - 1x M3x8 Bolt - 1x M3x12 Bolt I had all of them in my spare parts.

Assembly

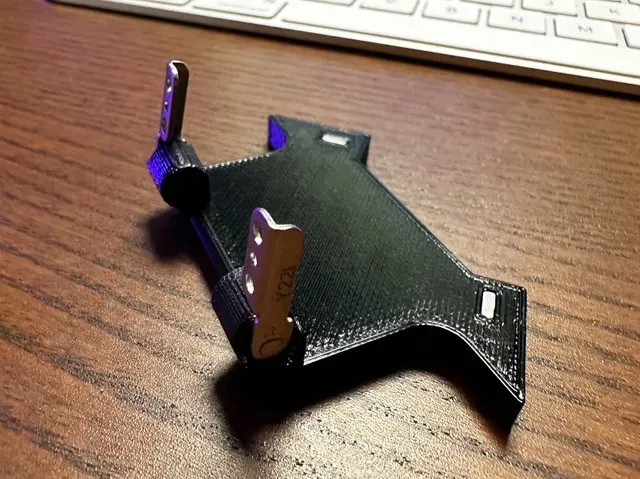

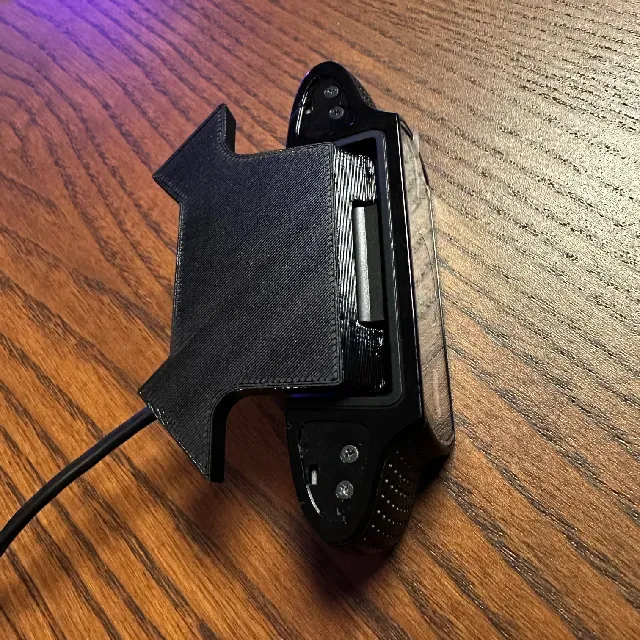

- Follow Steps 1 to 5 of the iFixit disassembly instructions for the Logitech C920 Webcam - Pull the two metal guides out of the old mount. - Put the two metal guides into the newly printed mount (you might need to use some pliers to press fit it in) - Follow the iFixit guide backward from Step 5 to 1 - Insert the two M3nS nuts into the slots (see picture) - Install the mount in the corner of your Original Prusa Enclosure (it is best to tug the cable behind the mount, next to the LED strip) Feedback is always welcome! Also, let me know if you got any questions.
