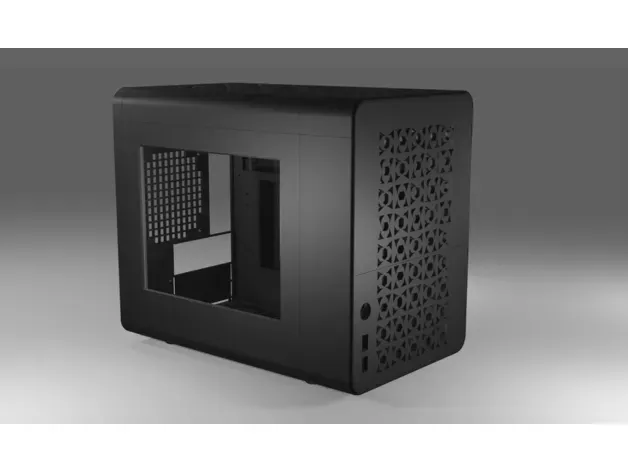

mATX / ITX PC case

IMPORTANT: Keep in mind that this project is now several years old, and will have more inaccuracies than my more recent designs. No more updates will be done to this design.

Watch the full build video here: https://youtu.be/yp67qvfYZVM

Please make sure your printer is properly calibrated before even attempting to print this, otherwise part might not fit as intended. I recommend a 100x100x100mm calibration to get most accurate results. Proper calibration is key to a nice looking case. Check the files for the calibration STL that I like to use.

Required print volume: 300x300x300mm.

KEY FEATURES:

- Support for both mATX and ITX motherboards - GPU up to 320mm - Support for one 240mm AIO cooler - SFX Power supply - 4x 2.5 HDD or 2x 3.5 HDD - 3 intake fans and 3 exhaust fans Do you enjoy my work and want to support me? Buy me a coffee! https://www.buymeacoffee.com/makerunit

SCREWS AND OTHER REQUIRED TO BUILD CASE: 8 • 5x30mm wood screw (for attaching main chassis both sides) 14 • 3.5x16mm wood screw (for magnet mounts, usb bracket, upper front chassis) 13 • M4x12 machine screw (for motherboard, frame brace, gpu) 11 • M4 nut (for motherboard, frame brace, gpu) 12 • 8x3mm Neodymium magnets (for magnetic front panels)

TO MOUNT HARD DRIVES: 4 • "6-32" computer screw (mounting brackets to motherboard plate) (found in screw kit) 4 • M3-0.50 screw (mounting bracket to HDD) (found in screw kit)
