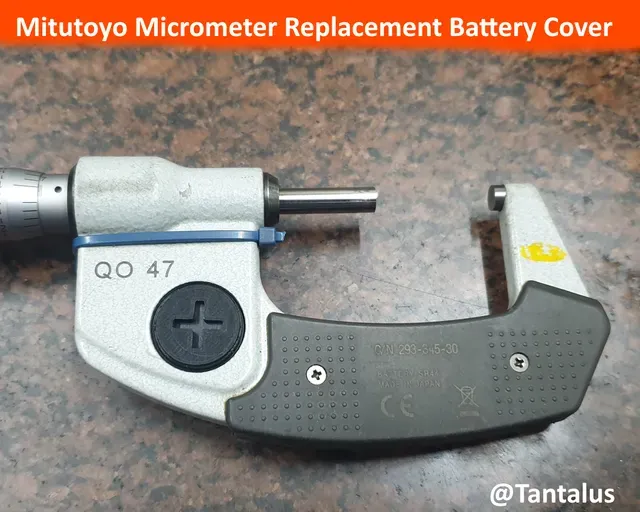

Mitutoyo Micrometer Replacement Battery Cover

This is a remixed project of the Mitutoyo Micrometer Battery Cover by GreatOldOne .

After printing the original design by GreatOldOne, to replace a broken Battery Cover for our 1-2” Mitutoyo Mic. I noticed that the fit was not as I expected as it was recessed and didn’t sit flush with the body of the mic.

About the Design:

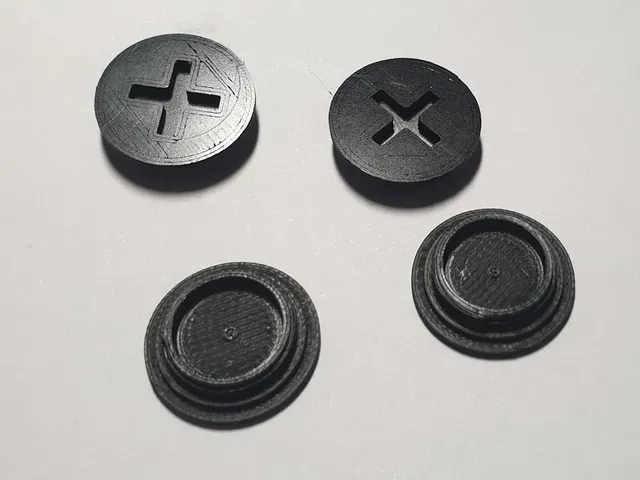

I completely remodelled the part in Fusion 360, taking direct measurements from the original broken battery cover I have also included a dimensional drawing reference. I made a few improvements first; I cleaned up the start Thread (Fig.1) I also reduced the interference fit between the body and insert.

If you have any questions, please feel free to contact & if you print it, please share your make and let me know the model of your micrometer.

Compatibility List:

Series 227 - Should be compatible but not confirmed.

Series 293 - Confirmed.

Series 314 - Should be compatible but not confirmed.

Series 317 - Should be compatible but not confirmed.

Series 323 - Should be compatible but not confirmed.

Series 326 - Should be compatible but not confirmed.

Series 329 - Should be compatible but not confirmed.

Series 340 - Should be compatible but not confirmed.

Series 343 - Should be compatible but not confirmed.

Series 350 - Should be compatible but not confirmed.

Series 369 - Should be compatible but not confirmed.

Series 395 - Should be compatible but not confirmed.

Series 406 - Should be compatible but not confirmed.

Series 422 - Should be compatible but not confirmed.

Printing requirement:

Layer Height 0.15mm.

Perimeters 2.

Top & Bottom Layers 4.

Infill can be set to 0% or left unchanged.

Supports Required No.

Filament:

I used Prusament PLA Jet Black worked fine I am confident that it could be printed in other Materials.

Post Production:

Remove support press-fit together if loose a small amount of glue can be used.
