Odroid H2 Blade rack

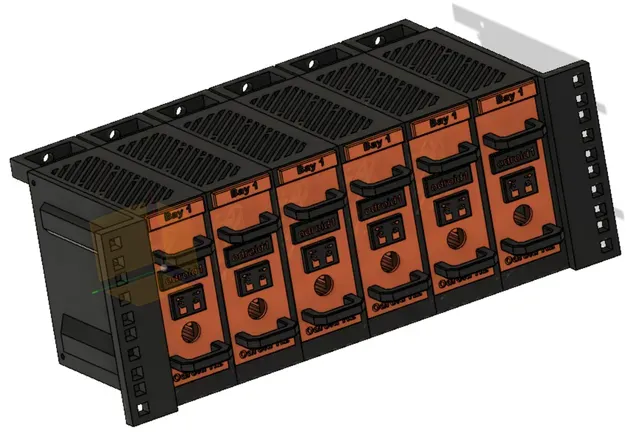

This is my design of a blade rack for Odroid h2 https://www.hardkernel.com/shop/odroid-h2/ .

It is 4U high including about 1cm above and below for airflow, each bay has a 40mm fan, I used ( http://www.fractal-design.com/home/product/casefans/silent-series-r3/silent-series-r3-40mm ), spacing of fan holes should be 32x32mm.

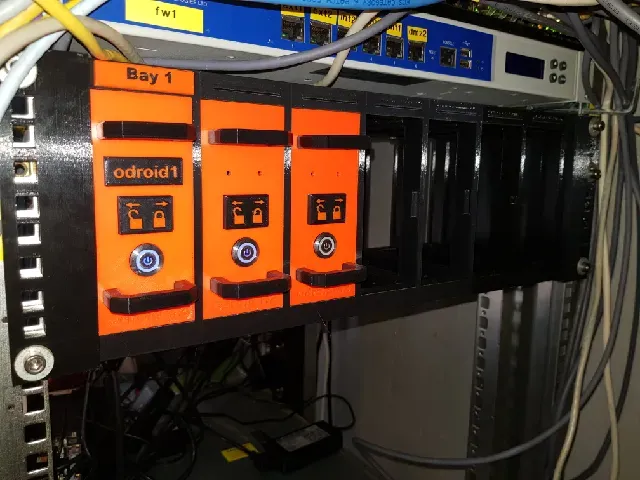

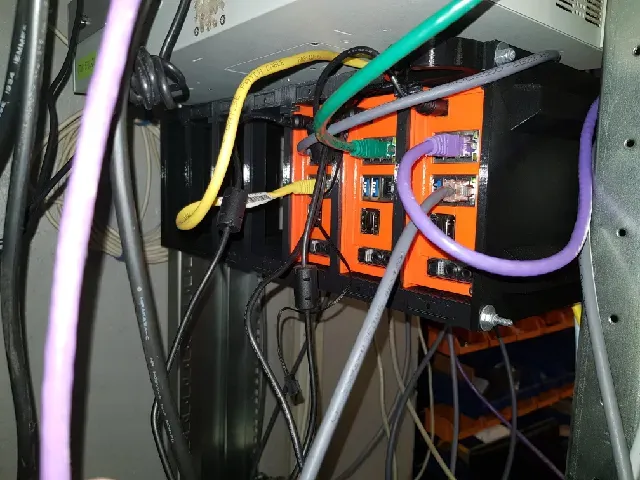

It will host 7 Odroid H2 units. In future releases I might replace one of the bays to mount power supplies for the fans and maybe the H2's.

I use them for virtualization with Ovirt ( http://www.ovirt.org ).

Blades are designed to use hardkernels power button ( https://www.hardkernel.com/shop/led-power-button/ ).

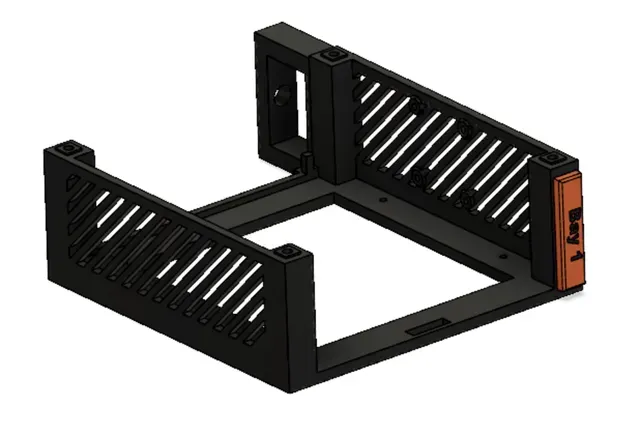

Bay Parts

Bay.stl 7

Bay-Cable-Holder.stl 7

Bay-Slider.stl 14

Bay-Tag.stl 7

Bay-Tag-1.stl Used for MMU printing with Bay-Tag.stl

Bay-Tag-2.stl Used for MMU printing with Bay-Tag.stl

Bay-Tag-3.stl Used for MMU printing with Bay-Tag.stl

Bay-Tag-4.stl Used for MMU printing with Bay-Tag.stl

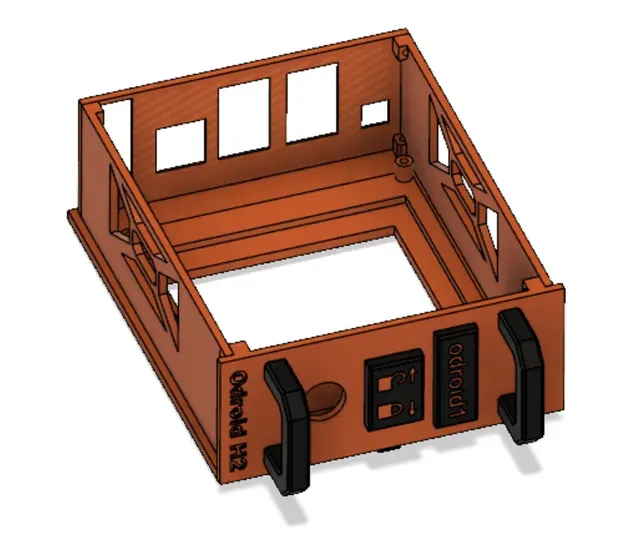

Blade Parts

Blade-Base.stl 7

Blade-Back.stl 7

Blade-Bottom.stl 7

Blade-Front.stl 7

Blade-Top.stl 7

Black-Lock-Peg.stl 7

Blade-Lock-Button.stl 7

Blade-Lock-Button-1.stl Used for MMU printing otherwise

Blade-Lock-Button-2.stl Used for MMU printing otherwise

Blade-Lock-Button-3.stl Used for MMU printing otherwise

Blade-Lock-Button-4.stl Used for MMU printing otherwise

Blade-Tag.stl 7

Blade-Tag-1.stl Used for MMU printing otherwise

Blade-Tag-2.stl Used for MMU printing otherwise

Blade-Tag-3.stl Used for MMU printing otherwise

Blade-Tag-4.stl Used for MMU printing otherwise

Blade-Tag-5.stl Used for MMU printing otherwise

Blade-Tag-6.stl Used for MMU printing otherwise

Blade-Tag-7.stl Used for MMU printing otherwise

Blade-Tag-8.stl Used for MMU printing otherwise

Blade-Handle.stl 14

Rack Ears

Rack-Ear.stl 2 (They are symmetric so just flip them around no need to flip in slicer)

Hardware

4pc M4 threaded rods length 440mm
