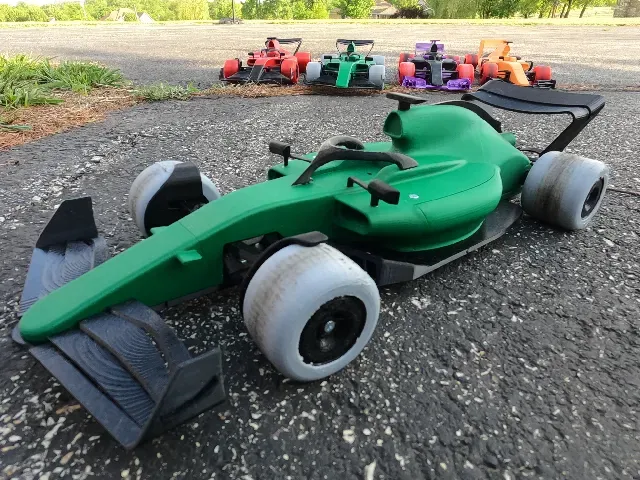

OpenRC F1 2023 Car - Full Part Set

STEP Files added!

Original Designs by Daniel Noree

Remix based on OpenRC F1 2022/2018/2017/2015

OpenRC F1 AERO Package: https://www.printables.com/model/469356-openrc-f1-aero-2223

For hardware needs please look here: http://danielnoree.com/the-openrc-f1-build-guide/

Key Differences to 2022 parts

- Wheel Rims have increased details - Rear Wing Mount more in line with 2022/23 spec - Front Floor now with more detail - Mirrors updated to match 2023 spec - Updated Center Body Section to help with retention of Lid - Drill Hole through Groove in Lid down into center body for 2mm screw on either side and use to retain lid - Updated Front Wheel Hubs for stability - Minor Updates to Shark Fin so it more easily interfaces with the lid

--Recommendations--

Print the Front Wheel Axle on its side, included print file shows recommended orientation

Use M3x20 bolt to secure Front Wheel Hub to Front Wheel Axle, this improves Strength!

If Parts come in not properly scaled (ie to small), scale all parts by 2540% (This is the Metric to English Conversion)
