Wall Mounted Graphics Card

Model details

Platform
Printables
Price
Free
License
CC-BY-SA
Print, modify and sell with credit; share remixes under the same license.
Formats
F3DSTL
  • 15 Likes
  • 108 Downloads
  • 0 Makes
  • 0 Comments
  • 767 Views

Author:Natpie

Published

Download on Printables

Description

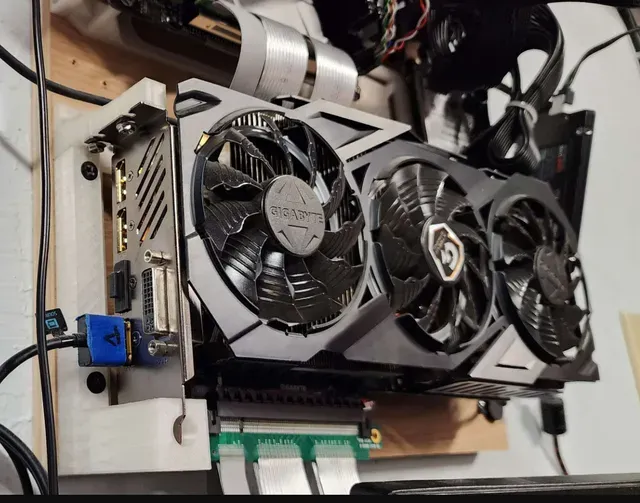

This video card mount is designed to hold a graphics card horizontally on the wall. It is intended to use a PCI Ribbon cable such as this one. http://www.newark.com/3m/8kc3-0726-0500/cable-assembly-ribbon-164-position/dp/44W6104

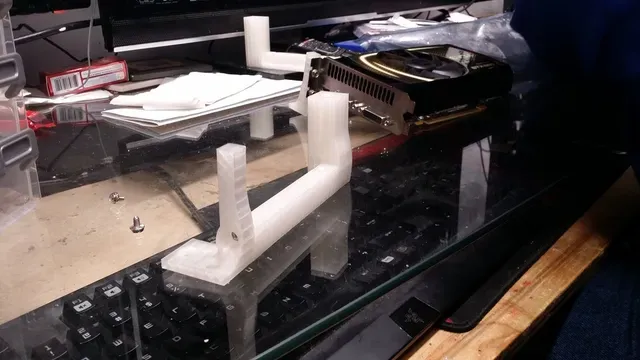

The part is broken into two pieces to print at different orientations so the torque is parallel to the layers. All threaded screw hols are standard #6-32 computer case screws.

There is one screw to connect the two pieces. This is not intended to hold the weight of the card, just a way to get it pulled together when mounting the bracket to the wall.

The card mount slides into the bottom portion of the bracket and underneath the top. There are two screw holes on the top portion of the mount to hold the card in place.

Print Settings

Supports:

No

Resolution: .1

Infill:

20%

Category: Computer
