S-360-12 PSU cover with voltmeter, switch and XT60 plugs

Platform: Printables
Price: Free
License: CC-BY-NC-SA; Non-commercial use only, with credit; share remixes under the same license.
Formats: STL

13 Likes
103 Downloads
1 Makes
1 Comments
764 Views

This model on other platforms

Thingiverse

Author:CrooksUSA

Published 2023-04-18

Download on

Printables

Description

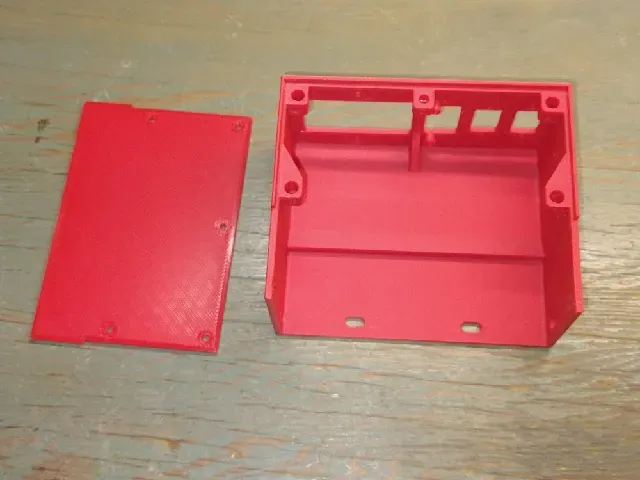

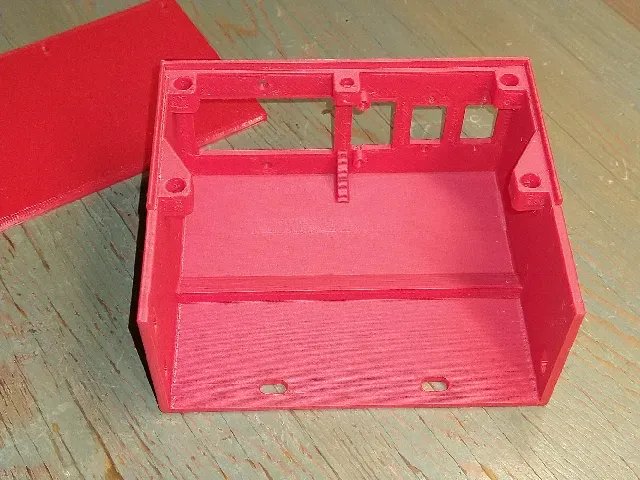

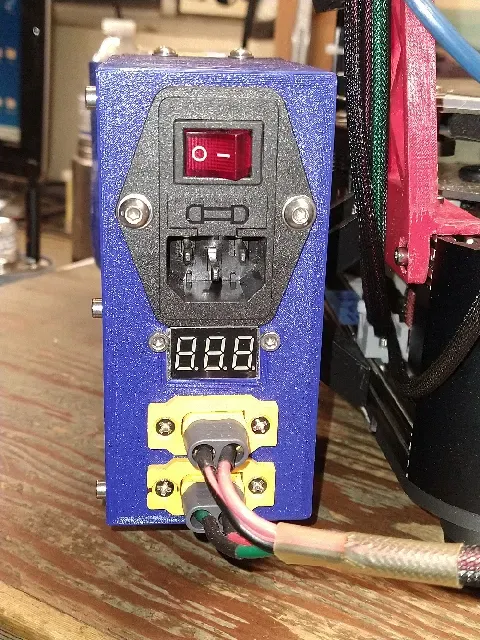

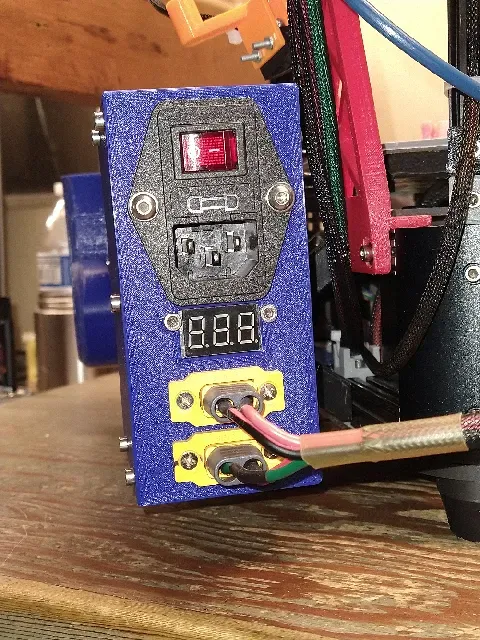

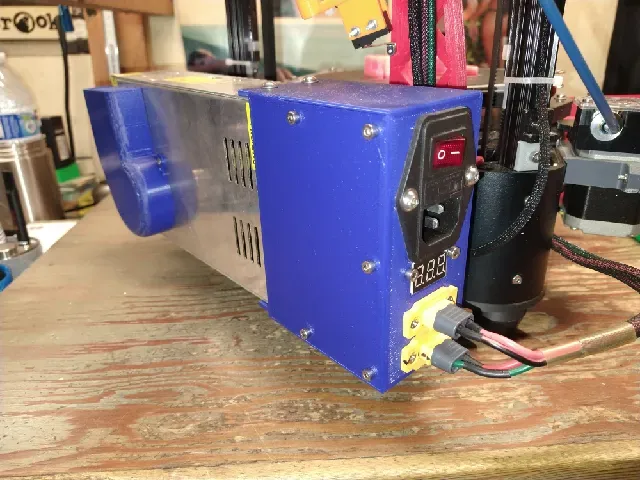

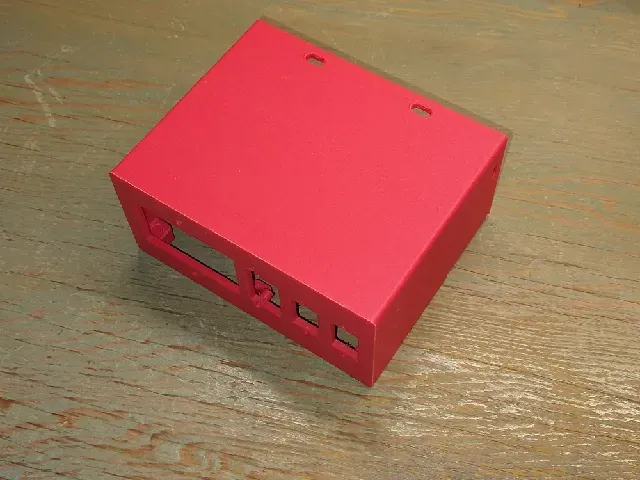

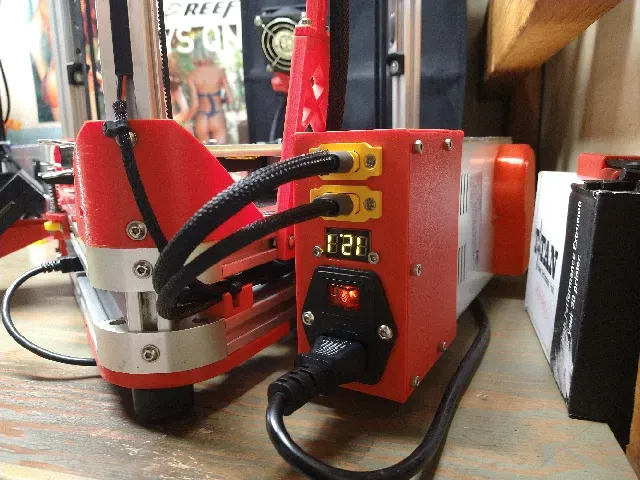

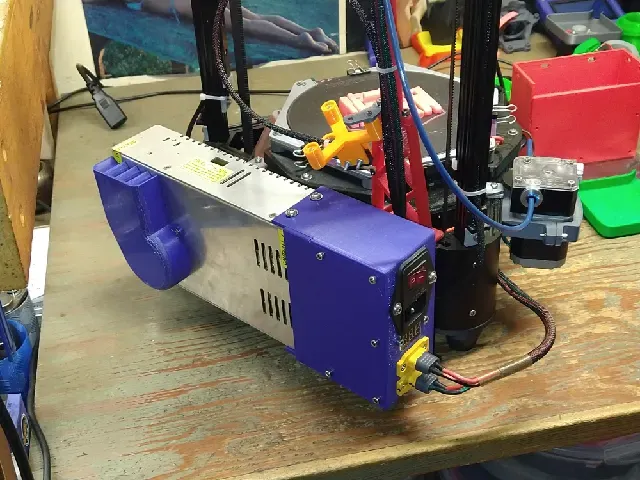

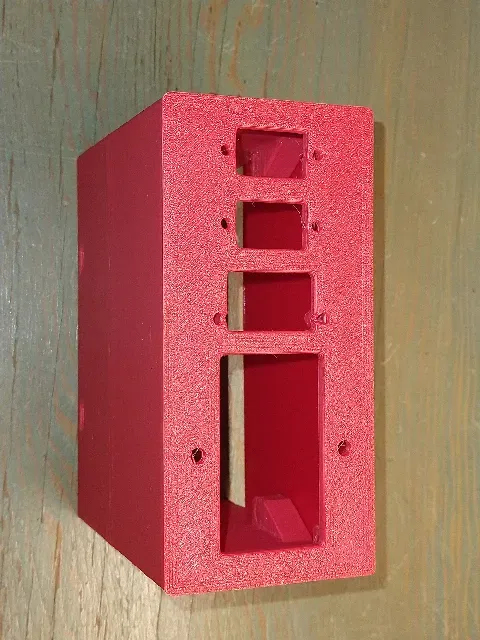

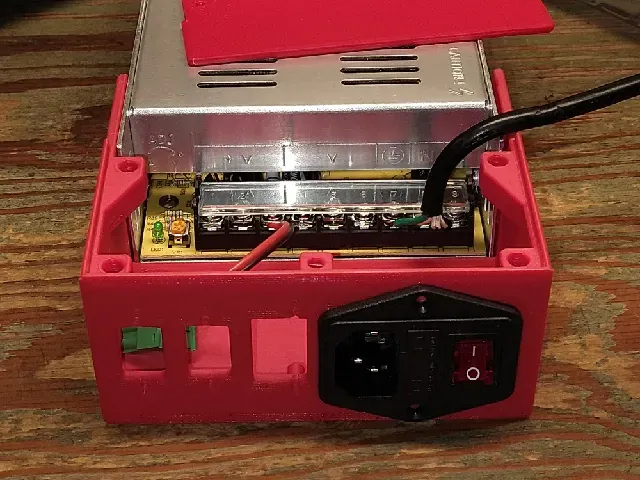

An S-360-12 PSU cover with voltmeter, switch and xt60 plugs ; with removable access cover.

Uses M3 screws and heat-serts for the cover. Note: I designed this to fit an older voltmeter I had that has the two mounting tabs offset towards the top of the display (see photos of where the screws are located). The common voltmeters available have the mounting tabs centered on the sides of the display.

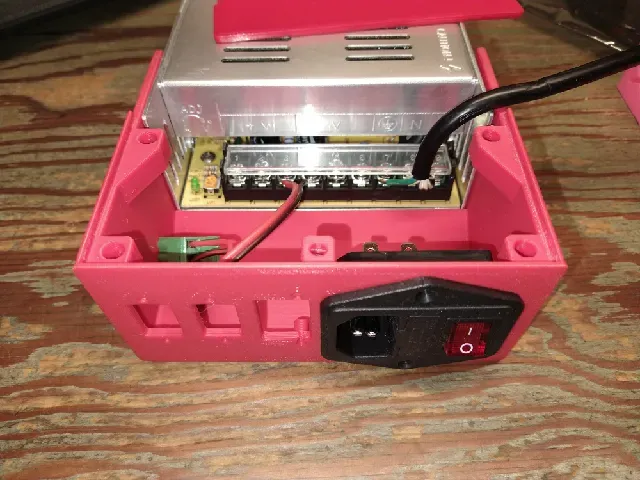

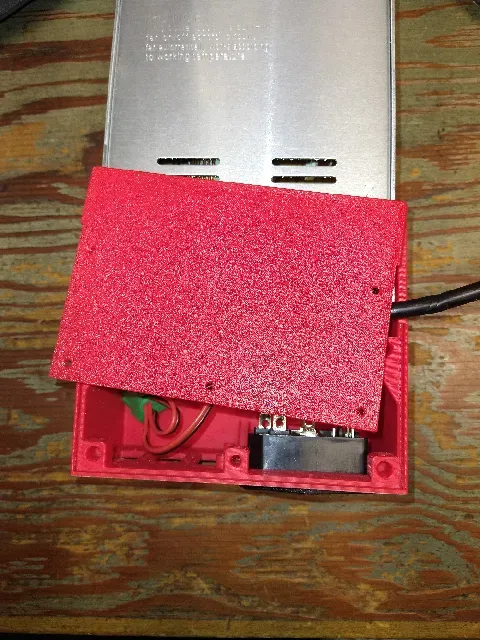

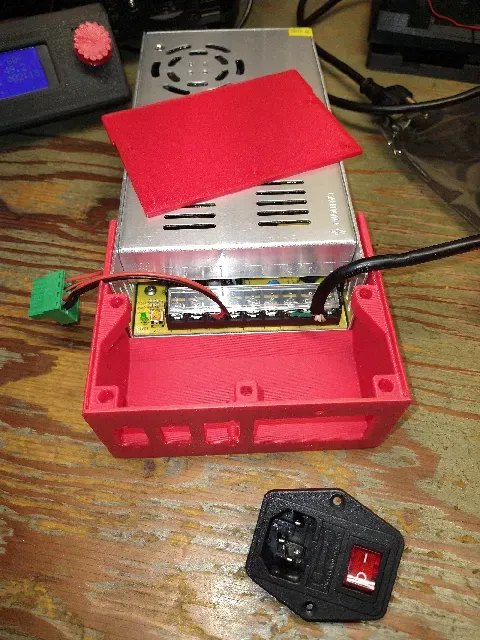

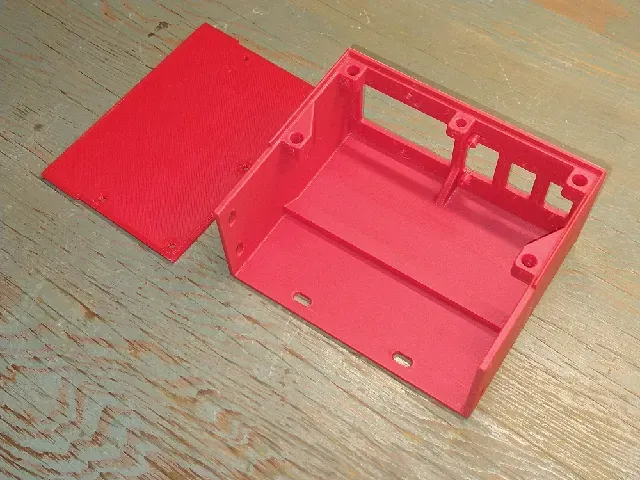

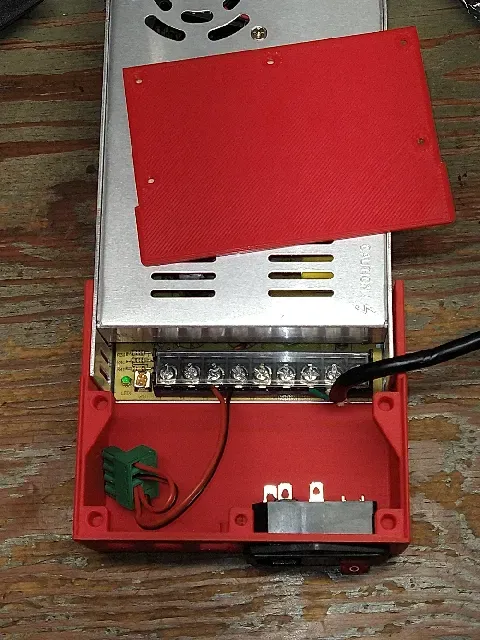

I designed this with a removable cover so that connecting the wires is much easier and allow access without having to remove any connections. Prints without supports.

Parts / Hardware Needed:

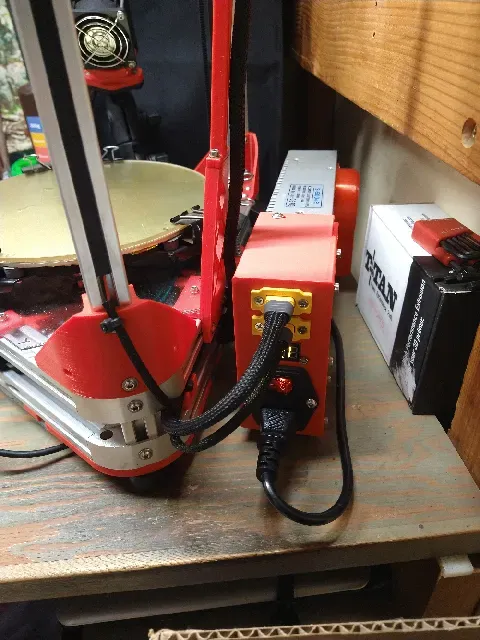

XT60E-F Female Plugs with XT60h / XT60 Male Bullet Connectors leading to the printer.

Fused Power Socket / Switch 10A 250V AC 3Pin

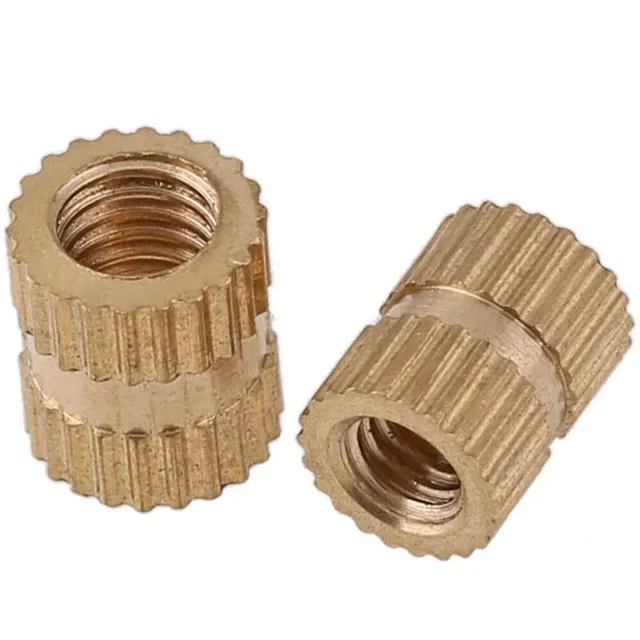

Center heat-sert (optional): M3 Outer Diameter 4mm Brass Knurled Threaded Round Insert

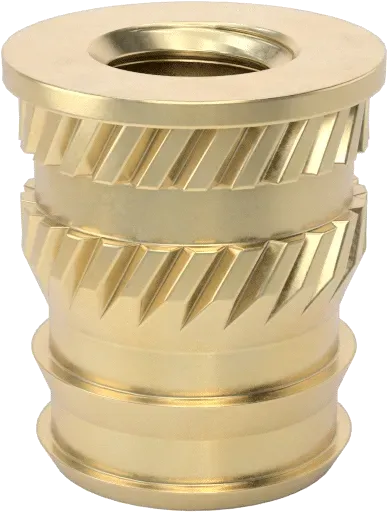

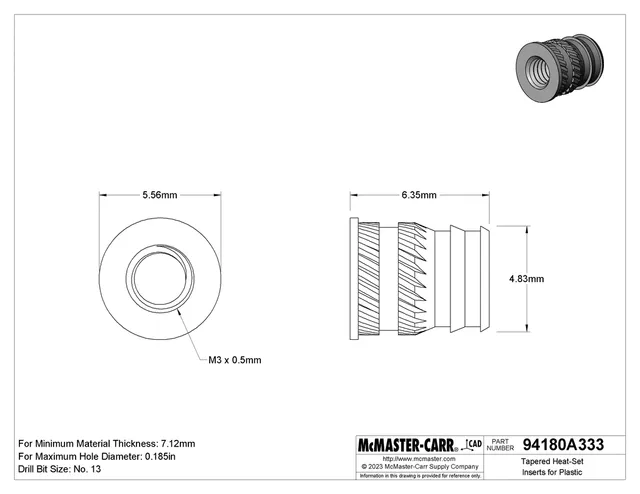

4 Corner heat-serts: M3 Tapered Heat-Set Inserts for Plastic

5x M3-8mm screws for the cover

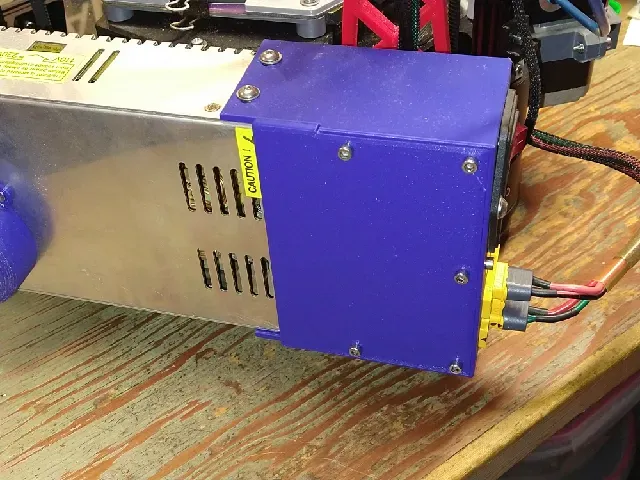

5x M4-6mm screws to attach the cover to the PSU (8mm may work, make sure they don't contact or short anything inside the PSU)
