Sidewinder X2 Fanduct 5015 and BLTouch Mount

Model details

Platform
Printables
Price
Free
License
CC-BY-NC
Print and modify for yourself with credit; no selling the model or prints.
Formats
STLGCODE
  • 18 Likes
  • 100 Downloads
  • 3 Makes
  • 9 Comments
  • 1 135 Views

This model on other platforms

Author:freakyDude

Published

Download on Printables

Description

A mount for a 5015 fan in combination with a correct adjusted fan duct. Its made for Artillery Sidewinder X2 (maybe it is also compatible for X1 and Genius Pro).

It's made of 2 parts - a front and a back part. Both are easy to print (but your printer must be well calibrated)

What you need: - 2x M3x20 → Fan - 3x M3x6 → BLTouch+Backplate - 1x M3x8 → Backplate

I used - 4x M3x3x4.5 Brass thread knureld nuts inserts -> (Fan+BLTouch) instead of screw nuts (but they should also work, increase screw length)

Print it with ASA or ABS . PETG may be heat resistant enough, PLA prints fine ... but deforms from heat over the time.

For your setup, the BLTouch offsets are around: x: 0, y: -30, z: 2.2

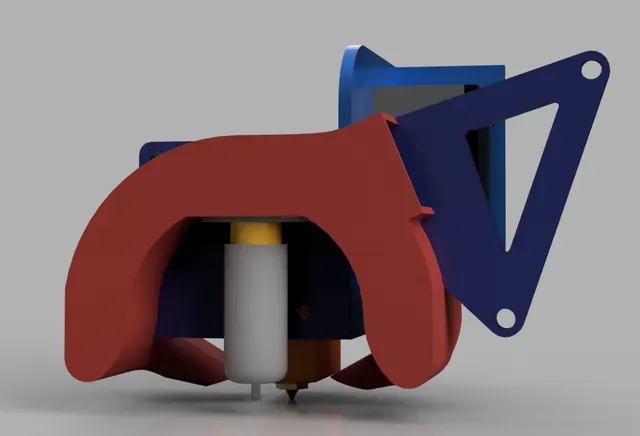

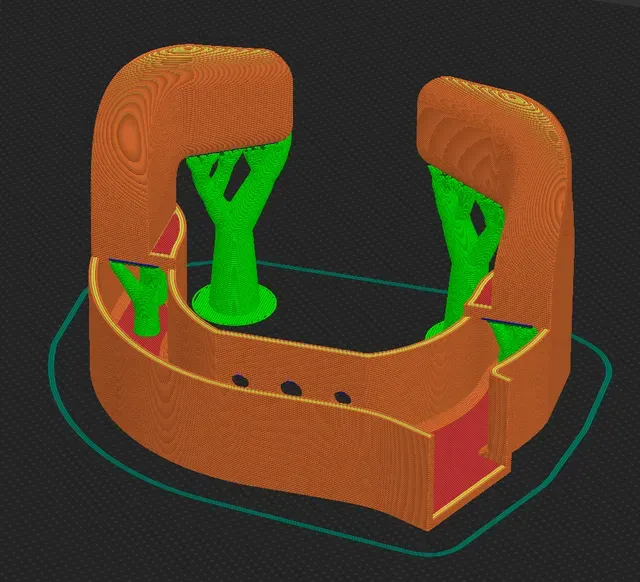

See pictures for more details
