Camper fridge rail Thetford (and others)

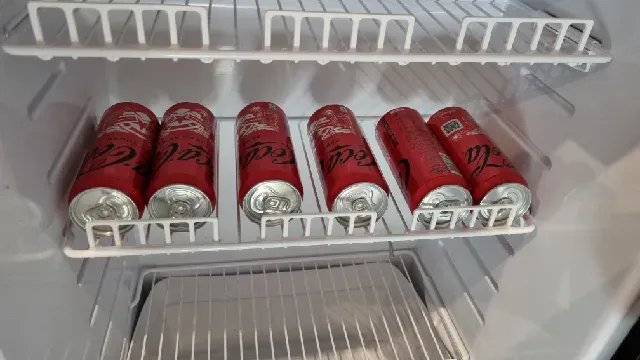

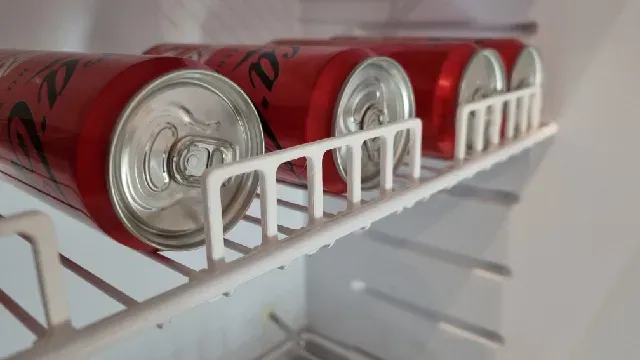

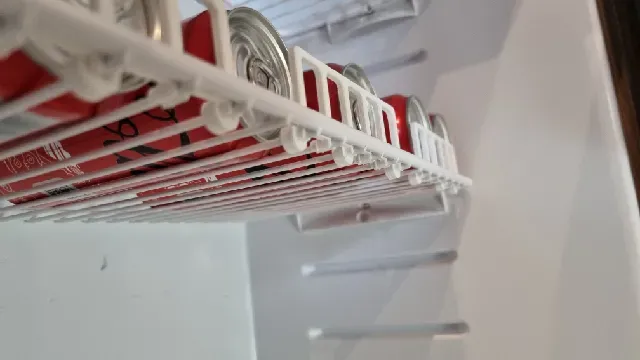

When you drive around with a fridge filled with food, the food tends to fall out when you open the fridge. With these rails most of the food stays in place.

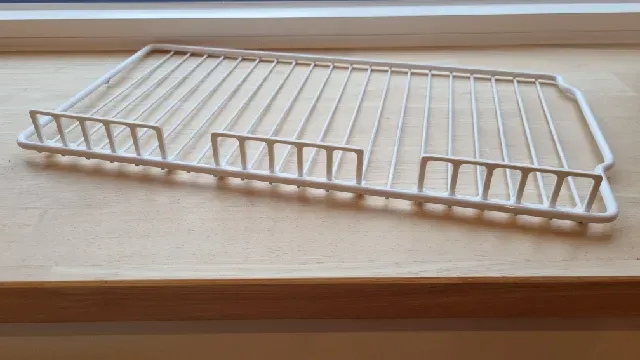

The rails clip on to the shelfs of a Thetford fridge and freezer where the center-to-center distance of the bars is 19.25mm and the diameter of the bars is +-2.75mm.

The standard height of the rails is 30mm.

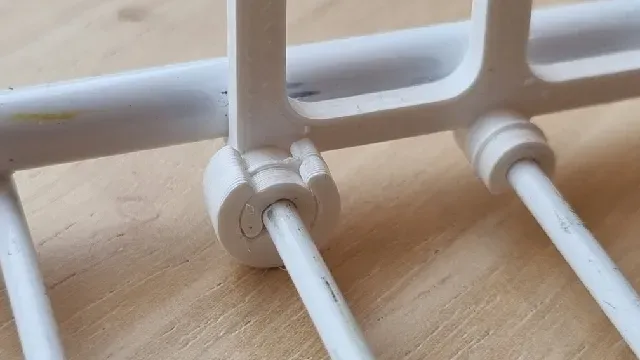

There are also optional locks (I recommend 3 locks/rail) to secure the rails to the bars.

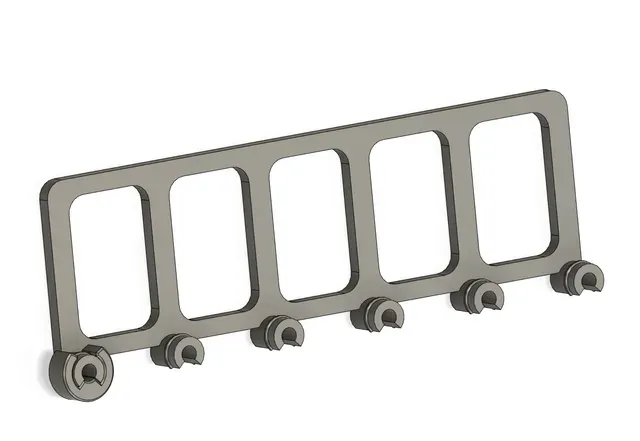

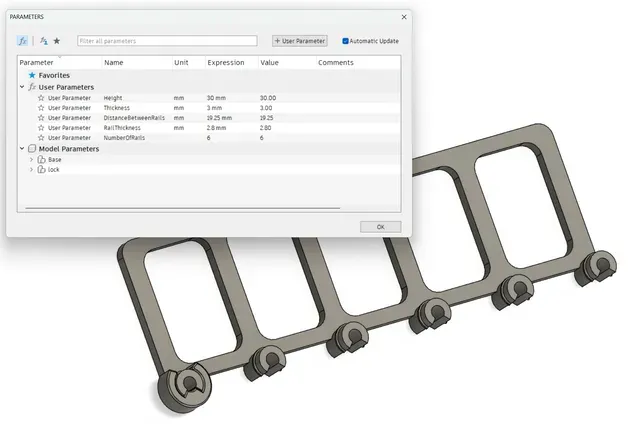

I also provided the parametric fusion360-file where you can adapt the center-to-center distance between the rails to adapt the model to other fridges.

You can also specify the number of clips, diameter of the bars, etc.
