Airsoft AK-47 AEG Zenitco Style Handguards

Model details

Platform
Printables
Price
Free
License
CC-BY-NC
Print and modify for yourself with credit; no selling the model or prints.
Formats
3MFSTEP
  • 63 Likes
  • 431 Downloads
  • 1 Makes
  • 3 Comments
  • 4 151 Views

Author:Twxii

Published

Download on Printables

Description

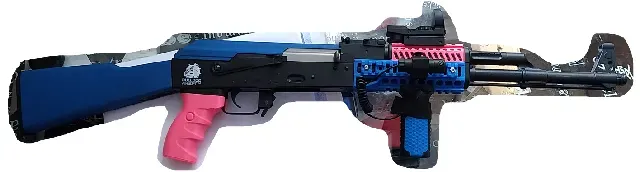

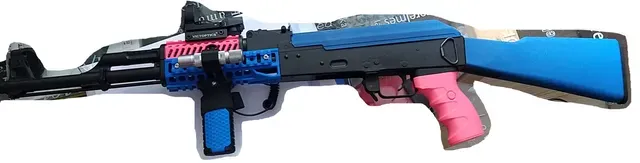

Designed these from pictures to fit my Bulldog AEG AK-47. No idea if they're dimensionally accurate to the real thing, I just designed these in proportion to my AK. Take a look at the models and check if they will fit your model.

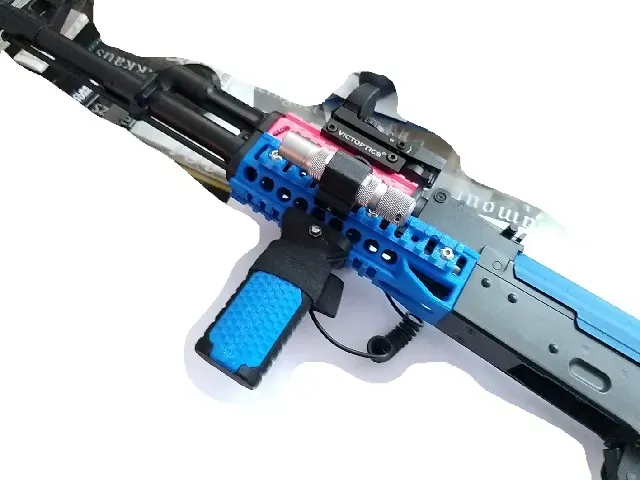

The lower handguard is designed like a B10U with slots for thin M5 nuts to mount the separately printed rails.

To mount each rail, you need:

- 6x thin M5 nuts. The ones I used are 2.6mm thick. - 6x M5x10 Countersunk bolts.

It doesn't sit straight enough to use a laser properly, not sure if that's the mounting method, the print itself or the mounts for the laser I made.

The pictures were also taken before I got the countersunk bolts.

step files included so you could change the mounting hardware if you wanted to.

The foregrip in pictures is https://www.printables.com/model/138866-shade-vertical-foregrip
