Diy Mini Cnc Router / Mill Plans

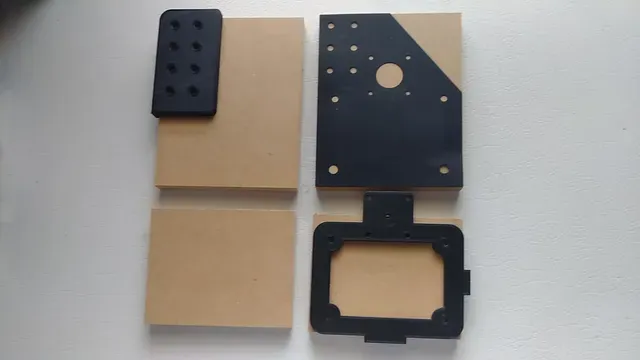

Updated on 7-29-23 - Y Axis plates & drill guide (.stl .dxf .pdf)

It can be made with (Mdf, 3d Printed or Laser Cut)

"Just Follow This Post For Updates"

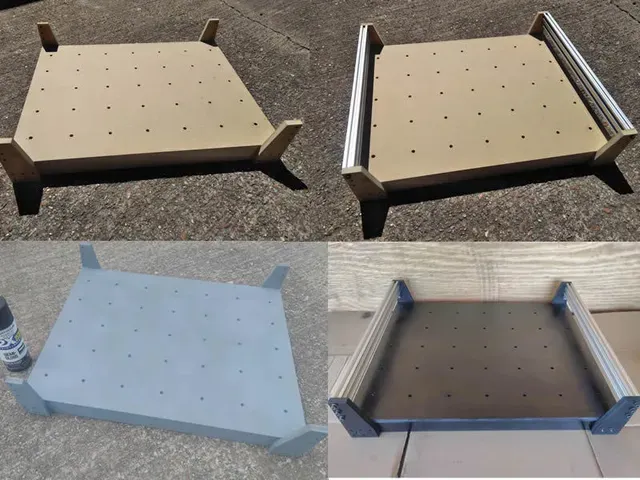

I will have all the plans done soon but for now i will upload the end plates (.dxf .stl .pdf ) a template cutout sheet

I need to make some tweaks to the Y & X axis plates

just leave a comments on this post if you need any help on any mods on the parts (Glad to

Print the end plates with ( 50-55% Infill )

I go the profile hole drill guide from here

https://www.printables.com/model/454936-drill-guide-for-v-slot-and-t-slot-jig-template

https://www.facebook.com/groups/lowcostcnc

Print Settings

Printer Brand:

Creality

Printer:

Ender-3 v2

Rafts:

No

Supports:

No

Infill:

55

Filament:

other PLA Or PETG

Category: DIY
