Yaesu FTM-400 Desk Stand

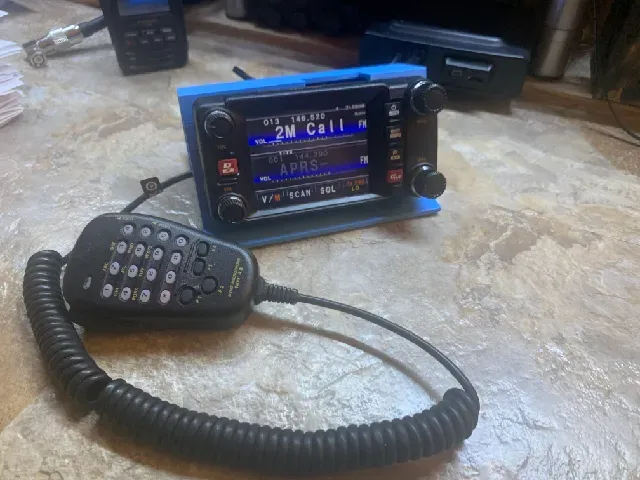

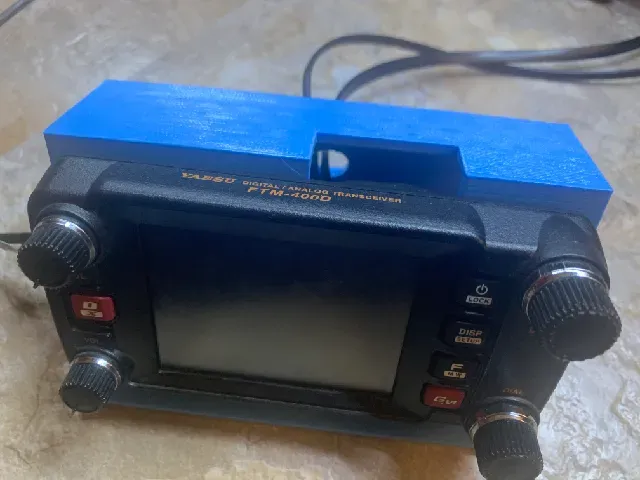

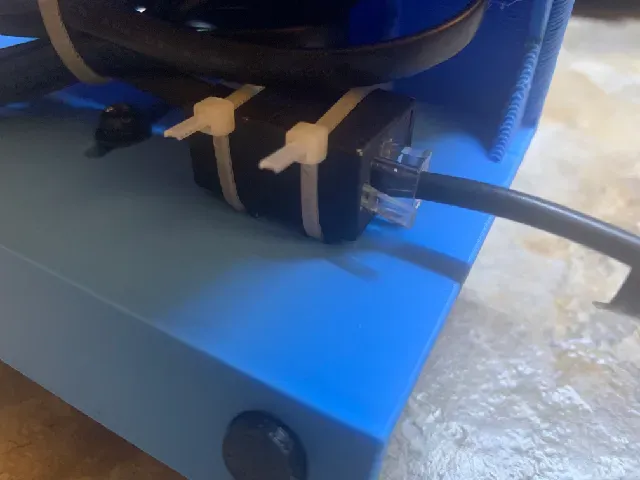

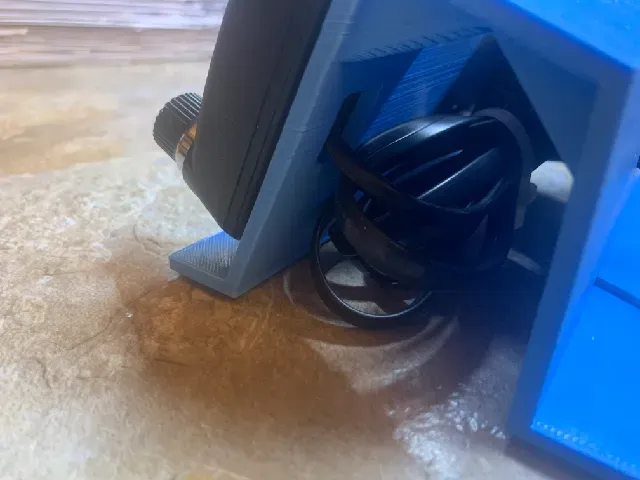

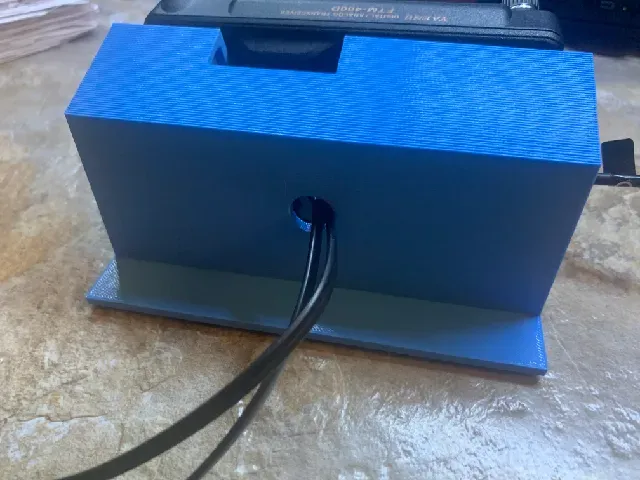

3D printable desk stand for the remote display of a FTM-400 transceiver. This simple desk stand has various features. The front is angled for a good viewing angle. There is a large hole in the back to pass cables through. A square hold on the right side to pass through the display cable. A opening at the top to allow plenty of room for the GPS antenna hump on the back of the display. A center hole that is elongated to allow a screw to pass through to mount the display at various heights. Four small holes and indentations for zip ties to pass through to hold a modular plug coupler to allow the mic to be remote from the radio as well. Also on the bottom there are four indentations for four rubber feet. You can buy or 3D print the rubber feet out of a flex material. Files included for the feet too.

No supports needed angles/overhangs have reinforcement built into the model for no waste

. For the stand I used a .3 layer height 10% infill. I used a light blue PLA+ and Inland TPU for the feet. Feet were printed at .2 layer height with 25% infill.

73 and happy printing
