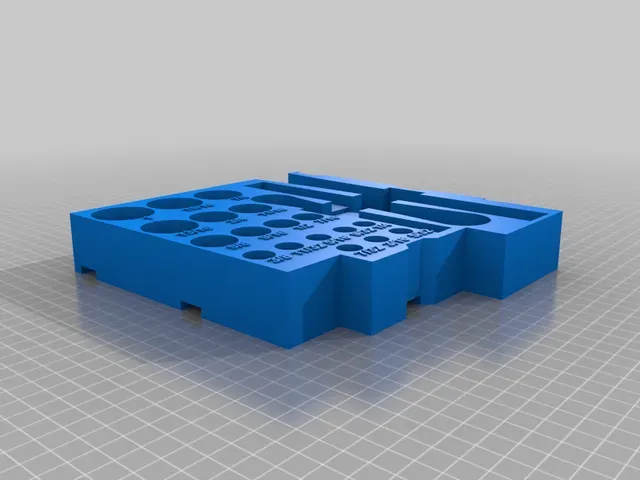

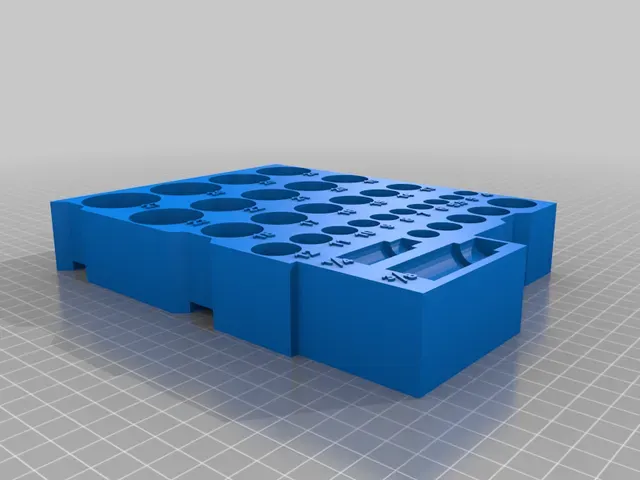

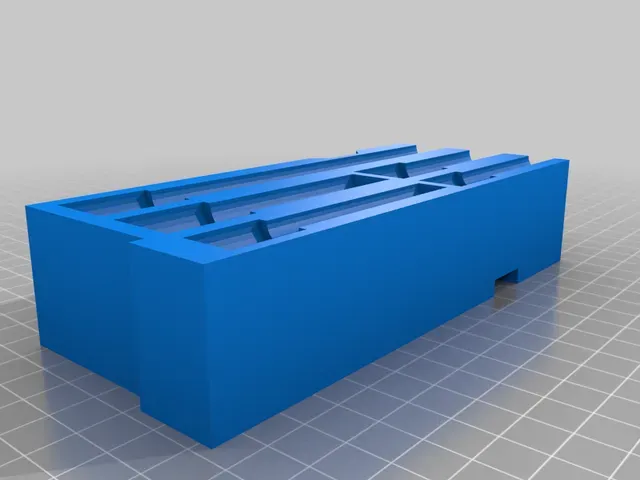

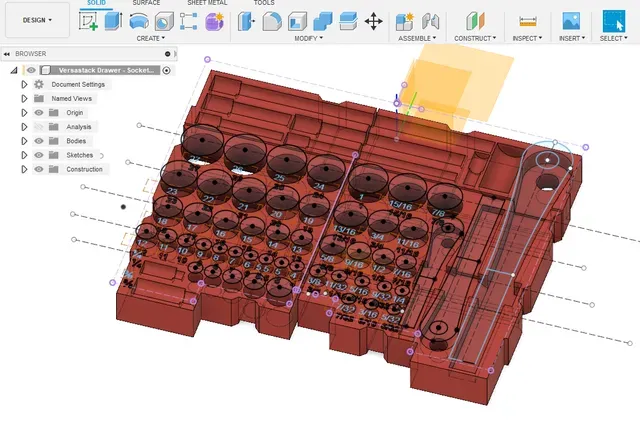

Craftsman Versastack/Dewalt TSTAK Drawer Inserts

This inserts should work with the Craftman Versastack 2 Draw Tool Box (#CMST17804).

https://www.craftsman.com/products/storage-garage/tool-storage/tool-boxes/cmst17804--versastack-double-shallow-drawers

I think it should also work with the Dewalt TSTAK IV (#DWST17804), but I do not have this exact model to test. From the photos they look identical aside from the color.

https://www.dewalt.com/products/storage-and-gear/tool-storage/tstak-iv--double-shallow-drawers/dwst17804 .

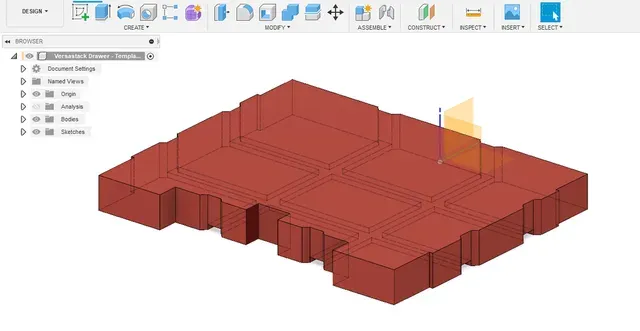

I've also included a STEP file of the blank inserts if anyone wants to use this to make a remix. I found that the tools can not sit higher then 46mm above the very bottom surface for the drawer to close correctly.

I'll be working on inserts for other tools, and will post the here when they are complete.

Print Settings

Printer Brand:

Creality

Printer: Ender 3 Pro

Rafts:

No

Supports: No

Resolution:

0.24

Infill: 5% Rectilinear

Filament: Overture PLA Black

Notes:

I used the color change feature of Prusa Slicer to switch to red filament for the text layer.

How I Designed This

Category: Tool Holders & Boxes
