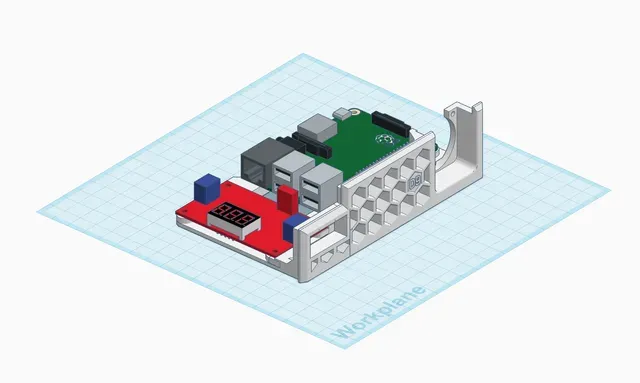

Ender 3 V2 Raspberry Pi & LM2596 Draw

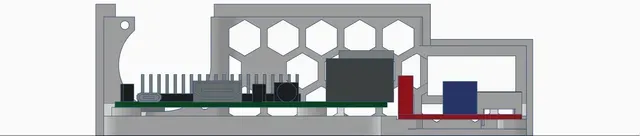

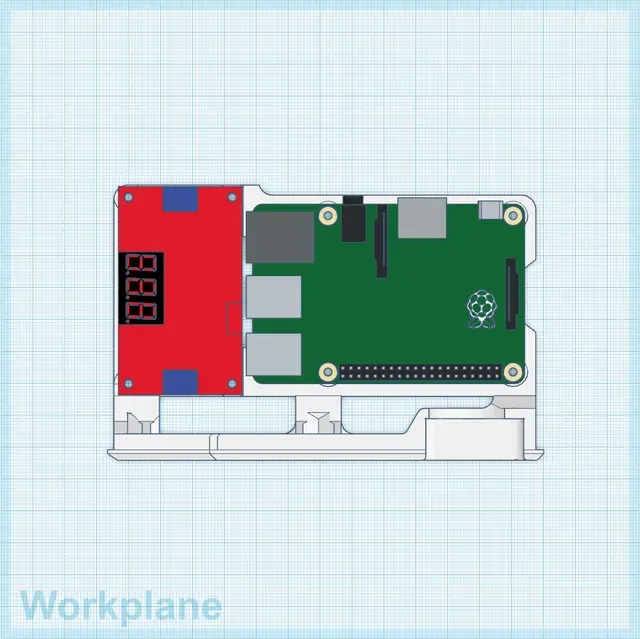

Remix of Thingiverse model, Original does not support DC to DC converter and the only remix that does, doesn't allow for the USB ports to be used unless using a stubby design plug or some sort of right angle USB. Rotated Pi to allow for both Pi and DC Converter to fit in the draw with ample space left in draw for extra cables. Only top 2 USB ports on the Pi are usable which is fine for my purpose needing only webcam and connection to printer. Also added cutout for USB passthrough on front of the draw

Pi runs at about 45c while printing (No heatsinks installed)

Hole spacing for LM2596 used are 58mm x 32.5

Hardware required

8 piece M3x6mm (Pi and Converter can use 2 each if you haven't got 8)

2 Piece M3x16mm (Fan)
