CR-10 FANG W/ BLtouch (Micro Swiss Direct Drive)

Model details

Platform
Printables
Price
Free
License
CC-BY
Print, modify and use commercially — credit the author.
Formats
STL
  • 0 Likes
  • 14 Downloads
  • 0 Makes
  • 0 Comments
  • 172 Views

Author:madbuda

Published

Download on Printables

Description

EDIT 2/18/2020 Added wire guide to support clip (v3) If you have already printed this you can either drill a 3mm hole in the original base or just leave it. Seems stable enough without the extra screw

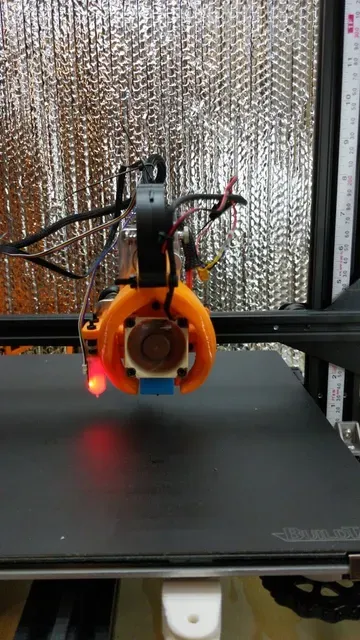

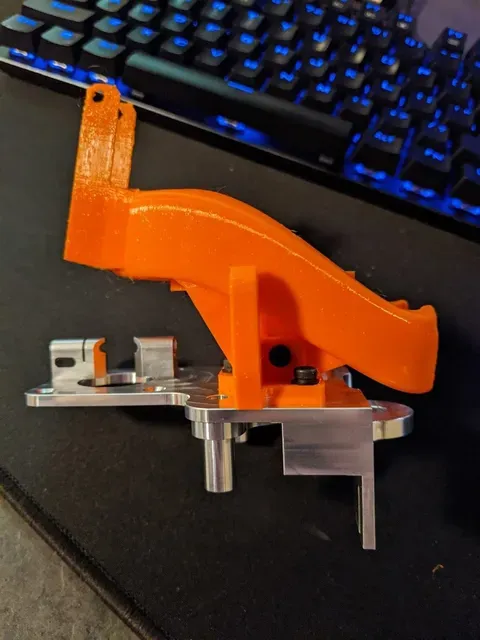

Fang mount for Micro Swiss Direct Drive

This base is for the micro swiss hot end

You will need to print the fan and 40mm fan duct from https://www.thingiverse.com/thing:2763931

I ended up needing t m3 nuts as spacers for the bltouch. I added a washer for good measure. All in all it is performing well

x_offset: -40

y_offset: -10

Print Settings

Printer Brand:

Creality

Printer: CR-10S

Rafts:

Doesn't Matter

Supports: No

Resolution:

.2

Infill: 30%

Filament: Overture PETG Orange

Category: 3D Printer Parts
