Kenny Mod for the BTT Knomi Display

There is a newer\improved version of this design here:

Kenny Mod 2 for the BTT Knomi Display by boothyboothy | Download free STL model | Printables.com

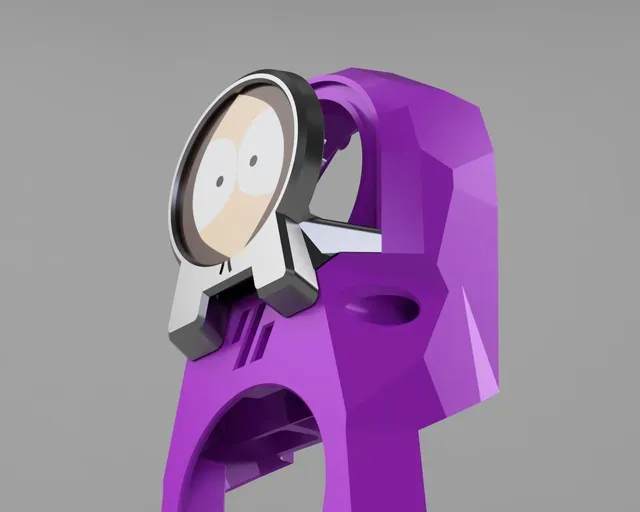

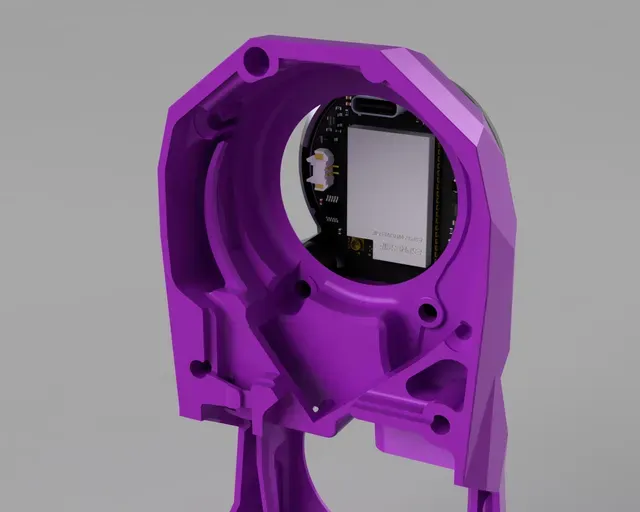

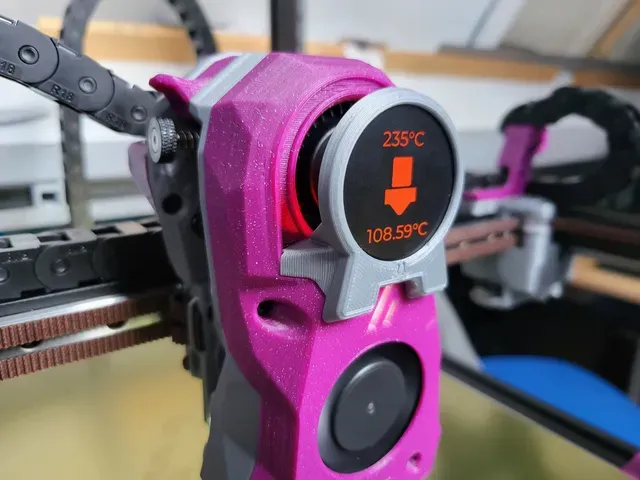

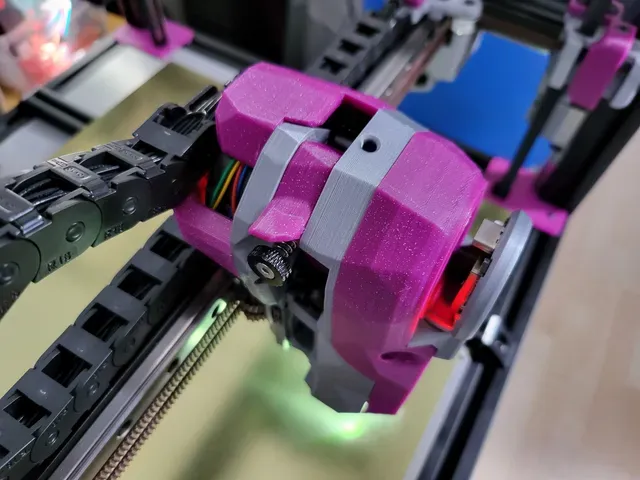

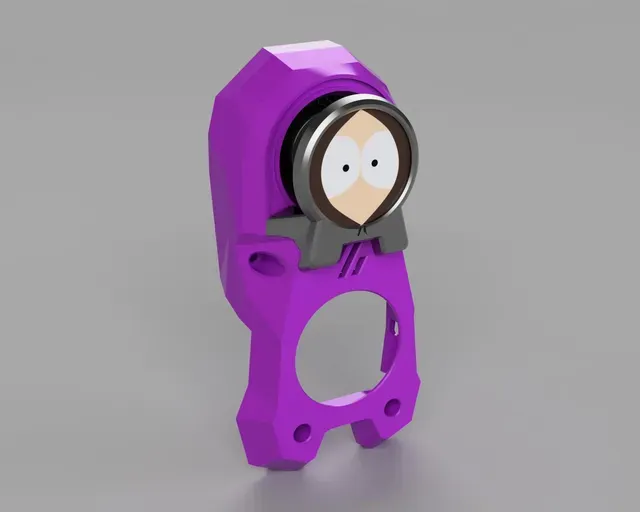

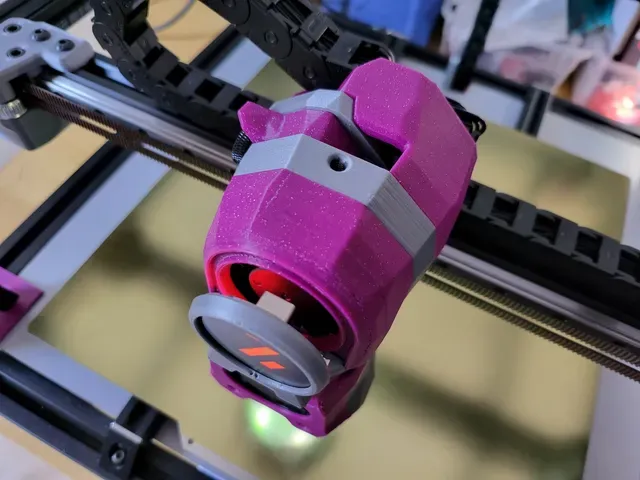

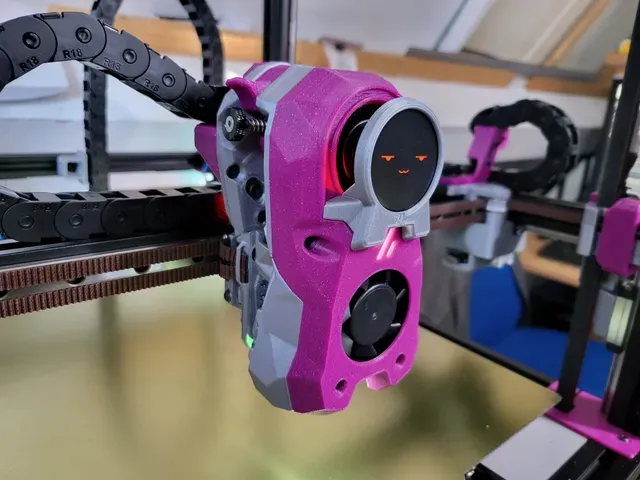

This is a alternative Stealthburner display mount for the Big Tree Tech Knomi Display.

This mod provided much improves air flow (in comparison to the BTT stock design) to the PCF and a much more rigid mount for the display.

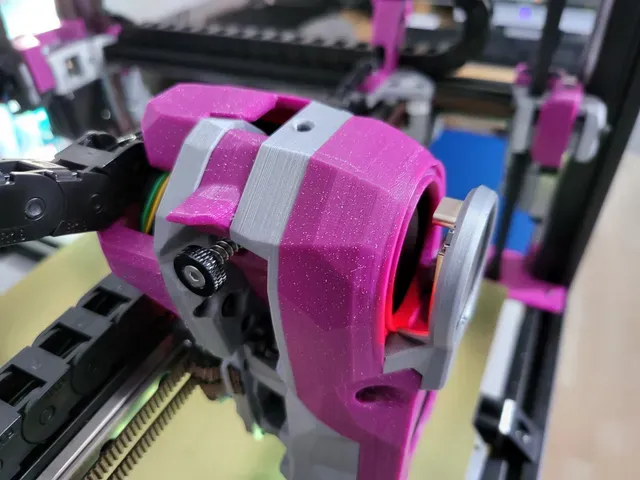

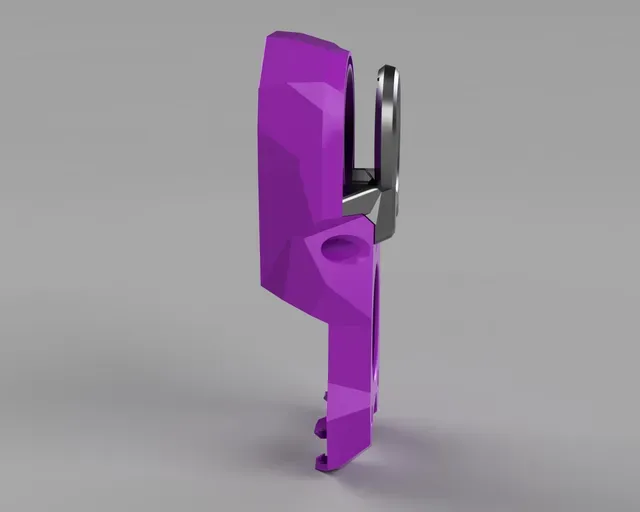

The display mount does protrude at the front of the SB by 6 mm, this therefore may effect the Y axis build volume in some cases.

Step or Fusion files included with upload.

Short video here:

The Stealthburner Main Body requires supports.

Installation Guide included in the upload.

Update 16\05\23: Uploaded STL files including a cut down part of the Main Body for custom support testing. Updated CAD files & Hoody Mount.
