Voron V0 Umbilical - V0.2 Hex Frame Mount

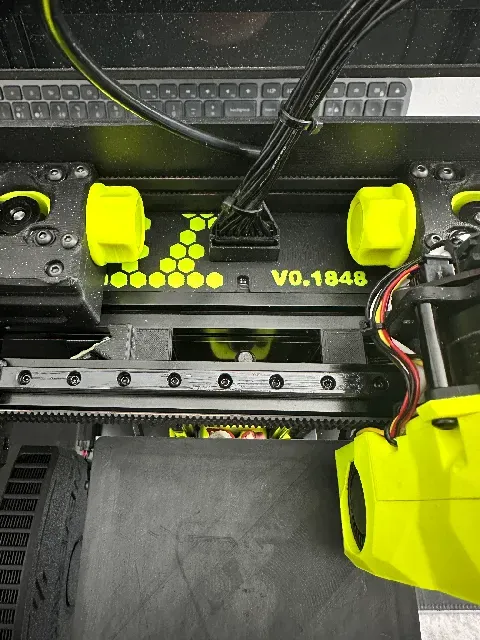

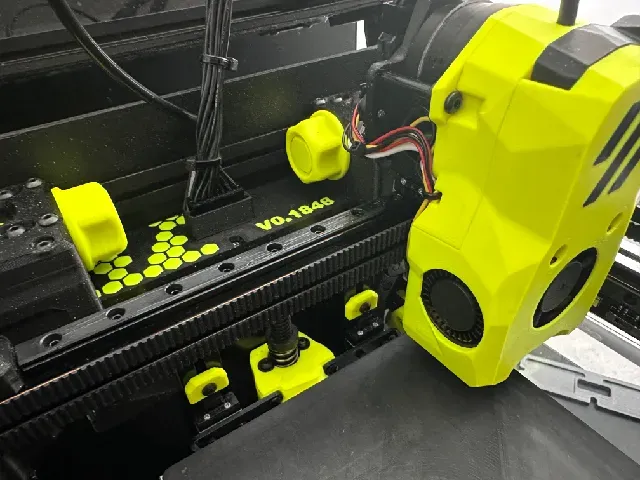

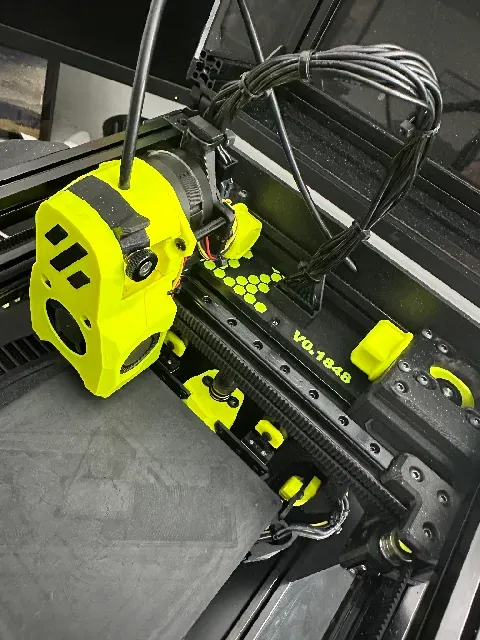

Since the V0.2 is now sensorless, there was a hole in the frame mount that lets precious chamber temp out… not any more with added hexagons and serial number!

If you don't have access to CAD to change the “Voron V0.2” to your serial number, there is a blank version that you can either print with no text, or use something like Tinkercad to customise it? or just have Voron V0.2 if you that tickles your fancy.

Instructions for dual colour printing with a single nozzle are here.

Text is slightly off centre to account for the motor covering the end of the print.

There are 4x versions:

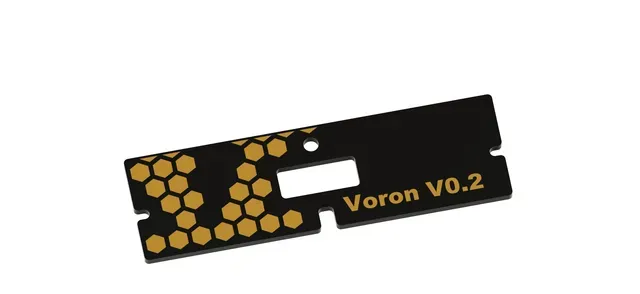

V0.2_Umbilical_Frame_Hex - Use this for the stock Bowden setup on a v0.2 as it has the hole to let the reverse Bowden pass through.

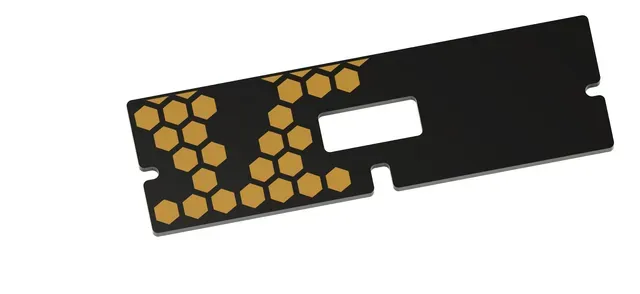

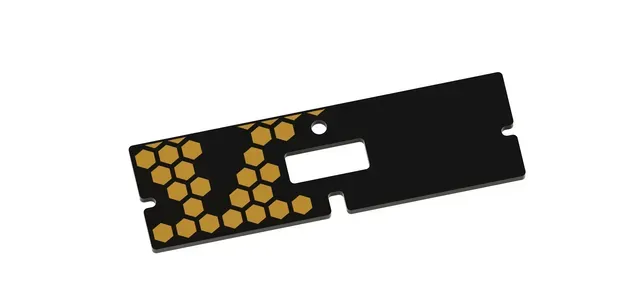

V02_Umbilical_Frame_Hex_Only - As above, without the text, hex only.

V0.2_Umbilical_Frame_Hex_No_Bowden - Use this if you're using a non stock Bowden set up, such as URBI from Maple Leaf Makers, there is no hole in this one for reverse Bowden to pass through.

V02_Umbilical_Frame_Hex_Only_No_Bowden - As above, without the text, hex only.

Completely Blank version can be found here

Don't forget to post your makes for free Prusament!
