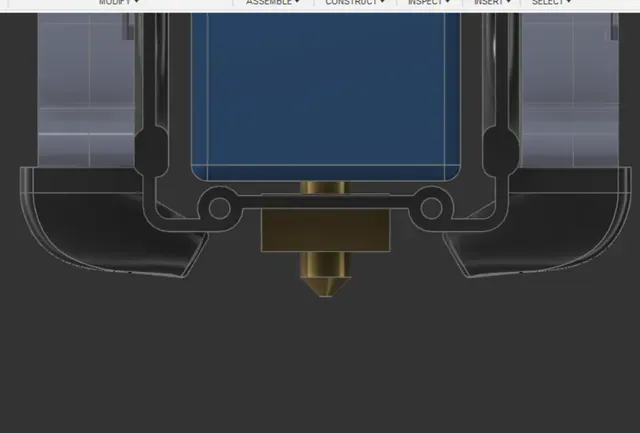

ELEGOO NEPTUNE 3 PRO/ PLUS/ MAX HIGH PERFORMACE COOLING FAN UPGRADE

MY TAKE ON HIGH PERFORMANCE AIR FLOW FOR THE NEPTUNE 3 PRO/PLUS/MAX.

I WOULD RECOMEND THIS FOR ANYONE USING A .6MM+ NOZZEL AND NEEDS SOME EXTRA COOLING.

I WONT GO INTO THE SCIENCE FOR THIS ONE.

IF YOR LOOKING INTO THIS, YOU PROBABLY ALREADY KNOW YOU NEED IT AND WHY.

USES 2 5015 BLOWER FANS

https://a.co/d/6iPVarf

USES TWO M4x20 SCREWS FOR FANS

https://a.co/d/fT4I6h2

USE THE FACTORY SHROUND MOUNTING HARDWARE OR TRY THESE ULTRA LIGHTWEIGHT TITANIUM ONES.

https://a.co/d/2fGuEuL

2.0 PIN CONNECTOR FOR FANS SO YOU DONT HAVE TO CUT YOUR STOCK ONES LIKE I DID.

https://a.co/d/by60ijS *

*IMPORTANT NOTE ABOUT THE CONNECTORS LISTED ABOVE:

RED AND BLACK ARE BACKWARDS COMPARED TO ELEGOOS WIREING! MUST SWAP RED AND WHITE TO GET FANS TO WORK WHEN USING THESE CONNECTORS

START OUT AT 50% MAX FAN AT FIRST AND TUNE IT TO YOUR ENVIRONMENT.

I DO RECOMEND RUNNING ANOTHER PID TUNE FOR NOZZEL TEMP AFTER INSTALL TO MAKE SURE NOT TO TRIP THE THEMAL RUNAWAY OF YOUR MACHINE FIRMWARE DUE TO THE INCREASED COOLING.
