Hotwheels start gate

Model details

Platform
Printables
Price
Free
License
CC-BY-NC-SA
Non-commercial use only, with credit; share remixes under the same license.
Formats
3MFSTL
  • 17 Likes
  • 66 Downloads
  • 0 Makes
  • 2 Comments
  • 1 932 Views

Author:matthew s

Published

Description

I made a few changes to a really cool project, take a look at the remote raceway project.

Changes

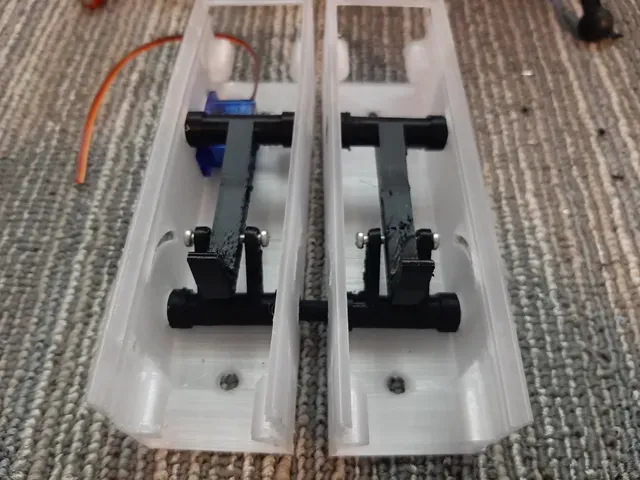

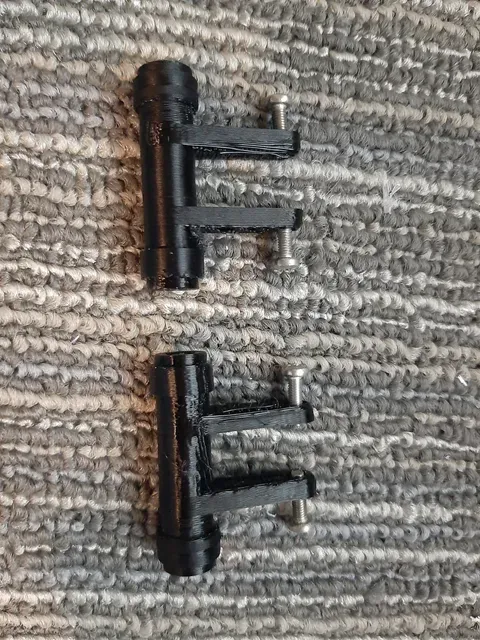

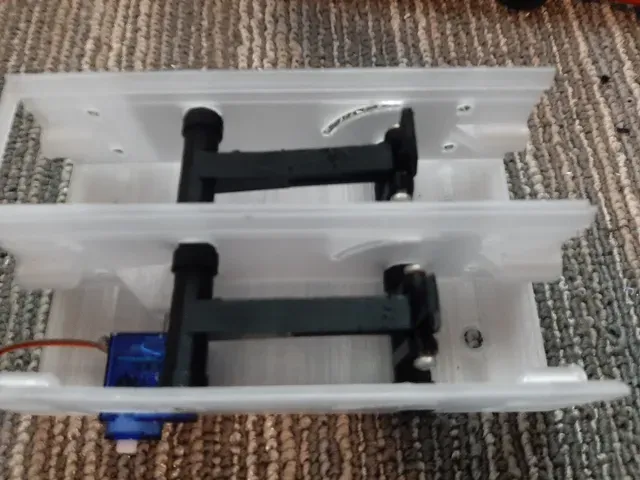

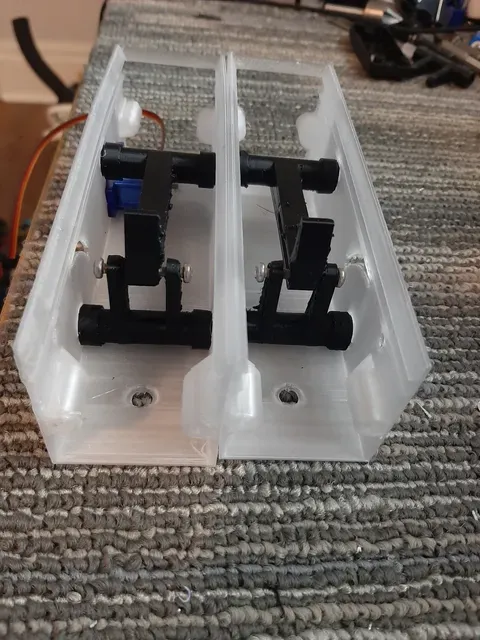

- Removed the need for M4 heat set inserts, I changed to holes so a M3 bolt with self tap in - I added two screw holes to the lifter, once internal pieces are installed, tighten the screws and it will make a good connection to the starter. I found that more than one connection between lanes would cause binding, So I just use the stick between each of the lifters. - I redesigned the track piece, I prefer the connectors built into the printed track pieces - I redesigned the front and back plate for a 2 lane setup, makes this much easier to build if all you make are two lane sets. - I changed the servo mount, now uses a M3x20 set screw. - I changed how it can mount to a Hotwheels mount, I combined the parts from several Thinginverse Hotwheels clamps in this set. - 3mf files showing the print orientation I used. I have given away each build as birthday presents, so currently don't have any complete pictures.
