Hello people,

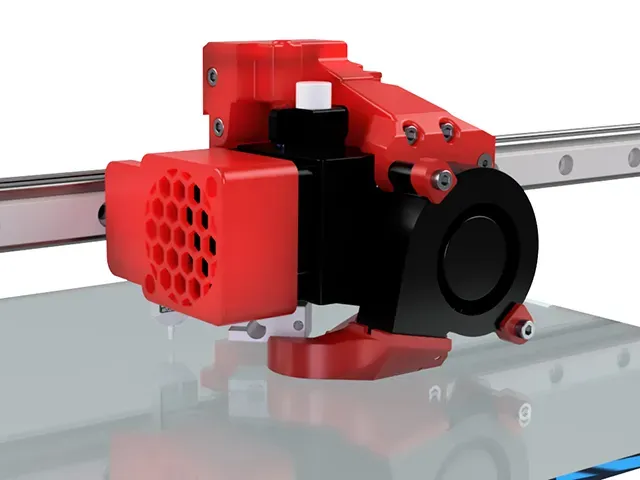

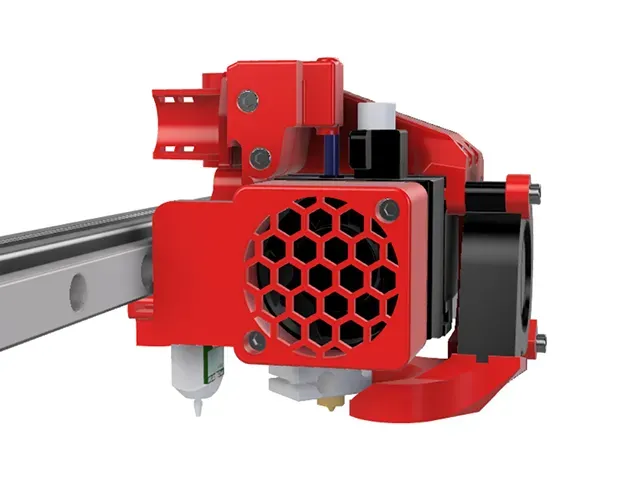

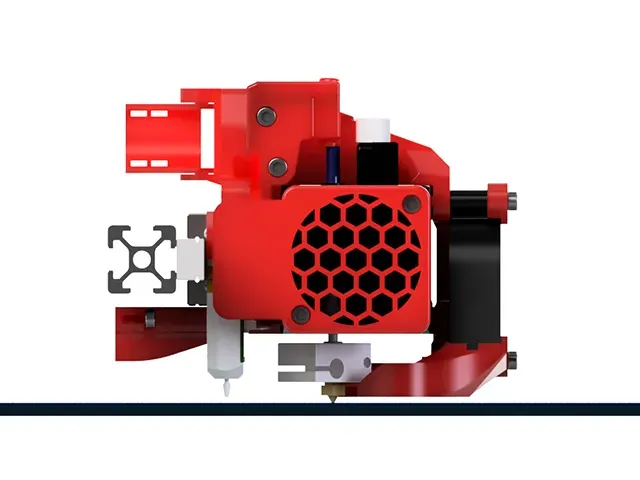

in this project I have installed the E3D Hemera Hotend on a Creality CR-20 Pro / Ender 3. In addition, the x-axis was upgraded with a Linear Rail System. Furthermore the BLTouch of the system was moved accordingly.

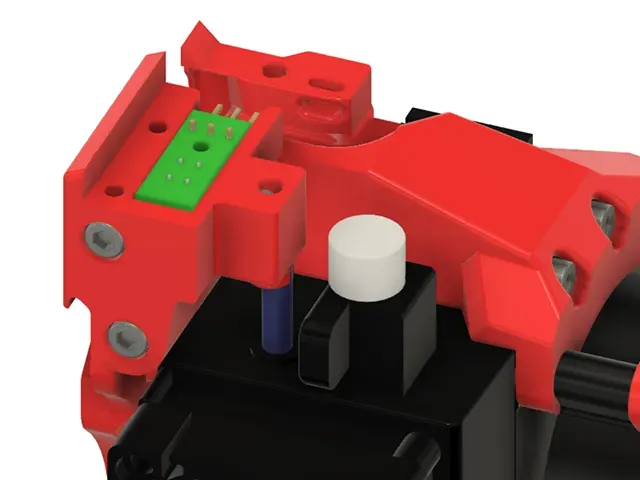

As a filament sensor, the original Prusa IR filament sensor was integrated into the system, which can be purchased at the following address:

https://shop.prusa3d.com/en/mk3mk3s/921-ir-filament-sensor.html?search_query=filament+sensor&results=93

These modifications result in a solid and well-functioning direct drive system, which I have now been using for a long time and which works reliably.

The conversion is a remix of the following link:

https://www.thingiverse.com/thing:4387833

A detailed manual will be published soon
