BTT Pad 7 bracket (Neptune 3 Pro)

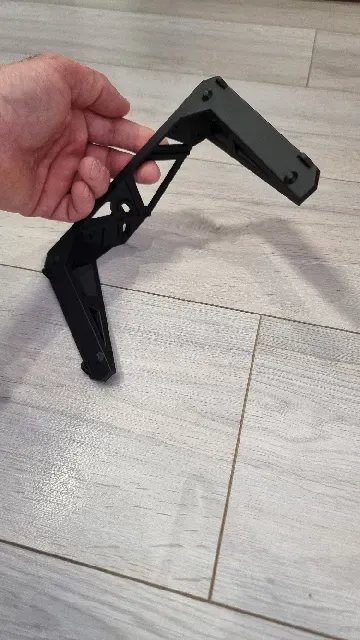

This model is made of three parts:

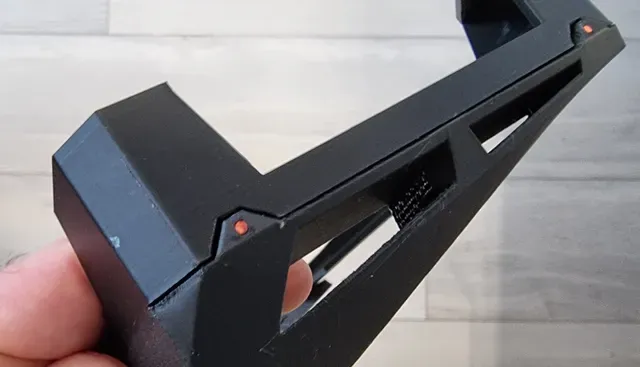

- BTT Pad 7 Bracket. Simply slide the pad in the bracket, tight fitting but still removable. - Square part for attaching to Neptune 3 Pro. This part allows to adjust viewing angle within 15°. - Duck Throne. BigTreeTech sends rubber duck with the Pad. It stands proudly near the bracket. You can also adjust Throne angle according to pad angle. Bracket and Square have locating holes. I suggest using a few cyanoacrylate drops to hold them together. I also use 4 1.75mm filament bits as dowels to ensure assembly.

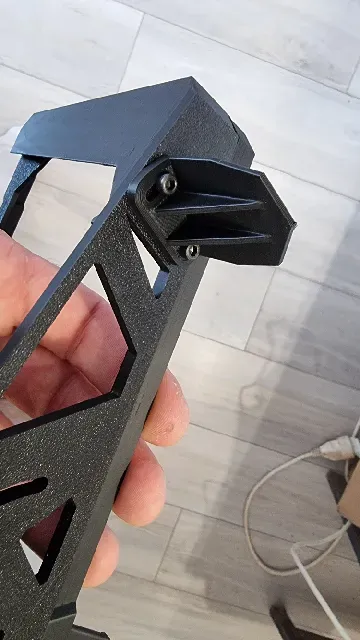

Square has two M3 threadings for duck throne. It may be hard to print precisely. You can simply drill the holes and add M3 screws+nuts.

STEP file is included, feel free to use the bracket and design your own square to fit your printer

Printing parameters:

- PLA, 200°C - Supports required
