SBox for MK2/3/4 - Double cantilever box

Model details

Platform
Printables
Price
Free
License
CC-BY-NC
Print and modify for yourself with credit; no selling the model or prints.
Formats
STL
  • 5 098 Likes
  • 10 529 Downloads
  • 77 Makes
  • 121 Comments
  • 75 297 Views

Author:Michal Fanta

Published

Download on Printables

Description

Support me & Buy a T-shirt

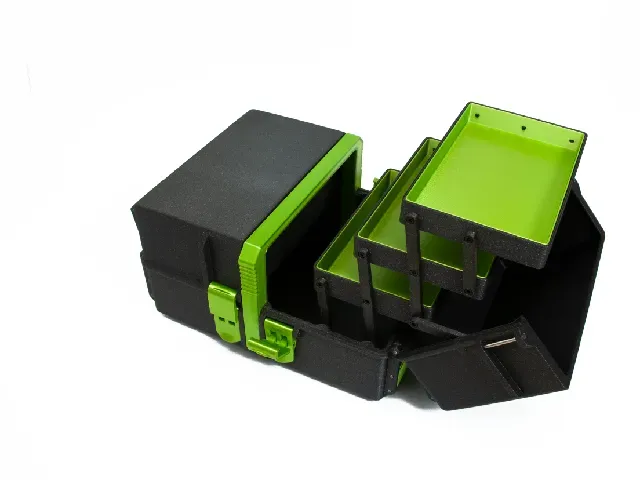

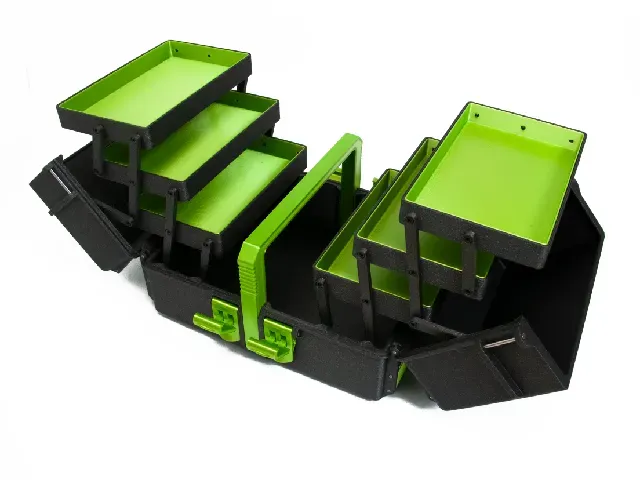

The Cantilever box is compatible with SBox for MK2/3/4 - stackable toolbox system and is intended for printing on the Prusa MK4 size 3D printer.

Assembly

list of non-printed parts

- 16 pcs - metal axis 36( 35 )mm x (2.8 - 3)mm or M3 screw with internal hex head - 8 pcs - metal axis 39( 40 )mm x (2.8 - 3)mm or M3 screw with internal hex head - 2 pcs - metal axis 24( 25 )mm x (2.8 - 3)mm or M3 screw with internal hex head (for top with handle) - 40 pcs - 6mm M3 screw with internal hex head - 4 pcs - 10mm M3 screw with internal hex head

You can use Locating Dowel or Cylindrical Pins or Stainless Steel Shafts in M3 diameter (lengths 35mm, 40mm, 25mm), as metal axes.

T-shirt

Support me & Buy a T-shirt Extensions

All parts of SBox - stackable toolbox system

Cantilever box for MK2/3/4

Crate for MK2/3/4

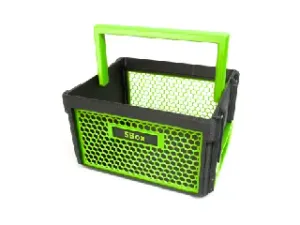

Perforated Crate for MK2/3/4
