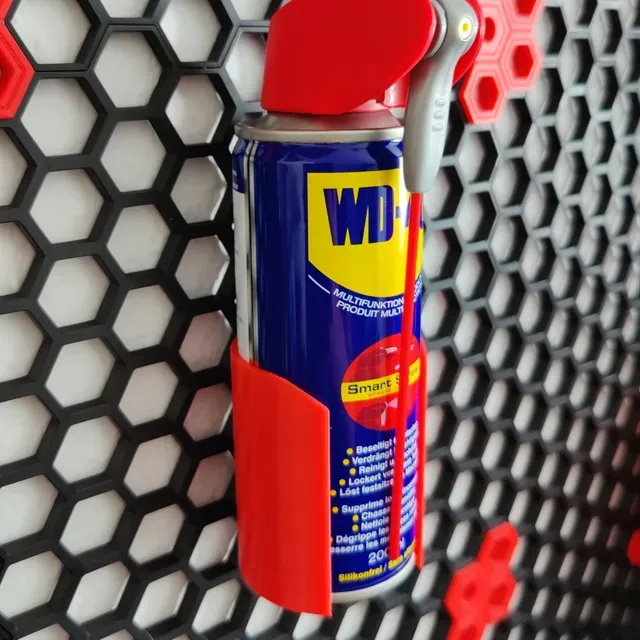

Honeycomb Wall Holder for WD-40 Can (200ml)

This is a cup-holder style holder keeping your WD-40 oil can nicely on your Honeycomb Storage Wall (HSW) for easy retrieval. The model was designed for the 200ml bottle (diameter 53mm).

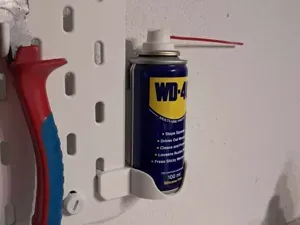

If you own 100ml bottles, have a look here - my design is inspired by Andre's model for the smaller bottle: WD40 Holder for Honeycomb Storage Wall

What is needed?

- 1x print file ‘hsw_holder_for_wd40_200ml_can’ - 2x ‘insert-empty’ (from original Honeycomp Storage Wall ) How to print

Use support for the upper insert attached to the holder model - I used manual tree support in the Bambu Studio slicer to minimize material required for the support structure.

I suggest to stick with the original suggestions for printing holders and inserts for the honeycomb wall: Use any material you like (I used red PETG), with layer height of 0.2mm, 4 perimeters and 20% infill .

The inserts attached to the holder model will fit very tightly into the empty inserts - I used a hammer to press them into place.
