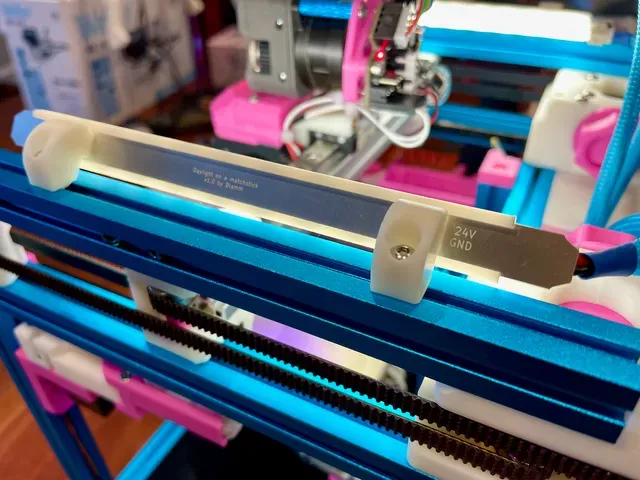

Voron v0 / v0.1 / v0.2 Daylight on a Matchstick LED Strip Mounts

This is a remix of chirpy2605's Daylight on a Matchstick LED strip mounts for the Voron v0.x line of printers.

The original uses a snap-in design, whereas this remix uses M3 screws and nuts for a more rigid mounting solution.

Installation

Print four mounts using standard Voron settings.

Install four ‘standard Voron’ (M3x5x4mm) heatset inserts into the mounts.

The LED strips use M3x6mm screws (button heads make for a nicer look) to attach to the mounts.

To attach the mounts to the Y brace extrusions, slide two M3 nuts into the top of each of the Y brace extrusions.

Attach the mounts to the M3 nuts in the Y extrusions with M3x12mm screws.
