Y Connectors For 100mm Pipe

Model details

Platform
Printables
Price
Free
License
CC-BY-SA
Print, modify and sell with credit; share remixes under the same license.
Formats
3MFSTLSKPSTEP
  • 80 Likes
  • 627 Downloads
  • 3 Makes
  • 8 Comments
  • 2 003 Views

This model on other platforms

Author:Fyrby Additive

Published

Download on Printables

Description

🟩 🟦 🟦 🟪 🟥 🟧 🟨

Design

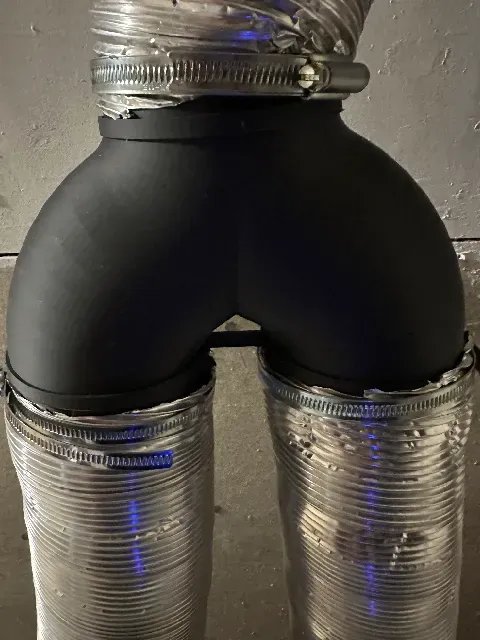

This model is designed to fit 100mm aluminium ventilation pipe, but will fit any 100mm flexible pipe that you can fix a clamp over to attach to these connectors.

Model Variants

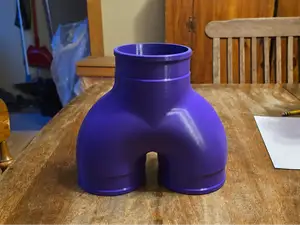

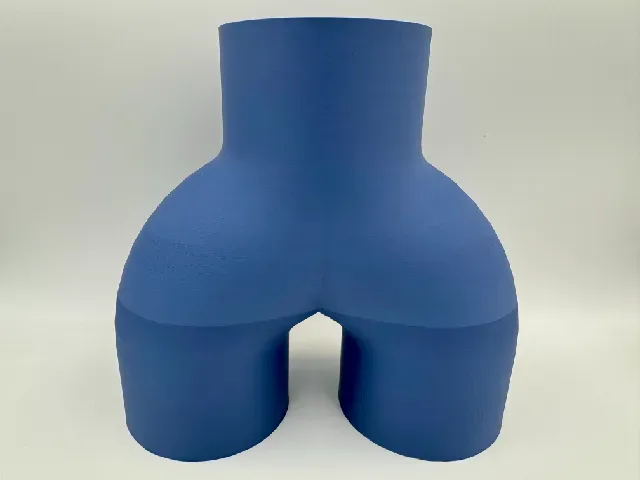

Style 1 - 150.5mm long.

Style 2 - 210.7mm long and provides slightly easier fitment than Style 1 although uses more plastic.

Style 3 - 220mm long.

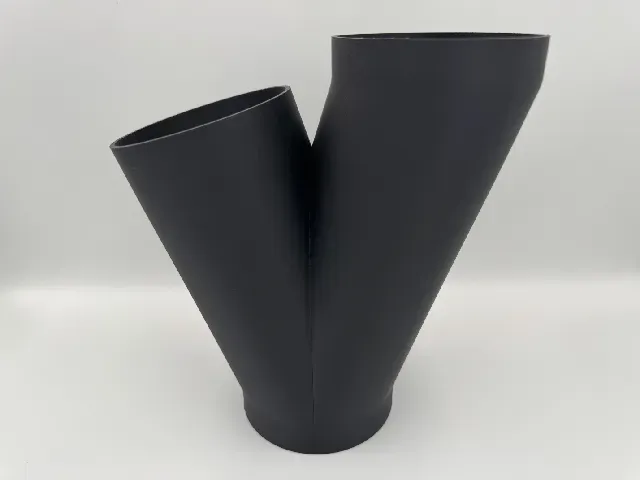

Style 4 - 220mm long, but with one side shorter to make it easier to join pipes at an angle.

If you like my designs or find them useful it would be great if you can support me by joining my club on Printables for at least a month, which gives you access to various extra models for the duration of membership. Another alternative is to buy me a coffee over at ko-fi via this link . Thank you!

🟩 🟦 🟦 🟪 🟥 🟧 🟨

Tags

pipeventilation100mmsplitterpipefittings100mmductypipe
