Filament Hanger for Wire Shelves (and vacuum bagged spools)

I had a hanger bar that came with wire shelving and I wanted to have multiple bars on one shelf, so I created this bar hanger and filament holders. If you already have a bar, you can just print the hangers that you need.

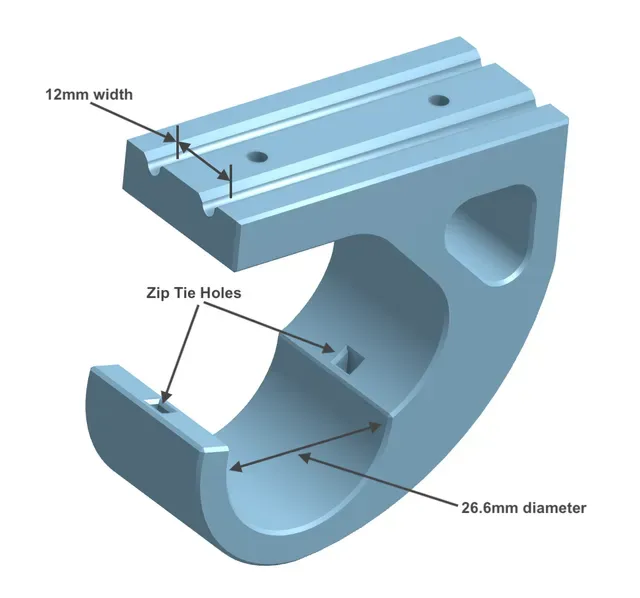

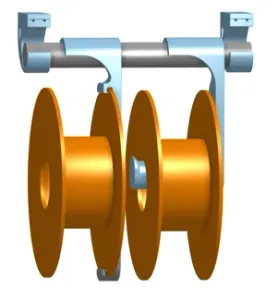

Wire Shelf Bar Hanger (Top and Bottom) - use this to mount to a wire shelving to hang a bar onto it. There is a zip tie hole to tie the bar to the hanger if you want.

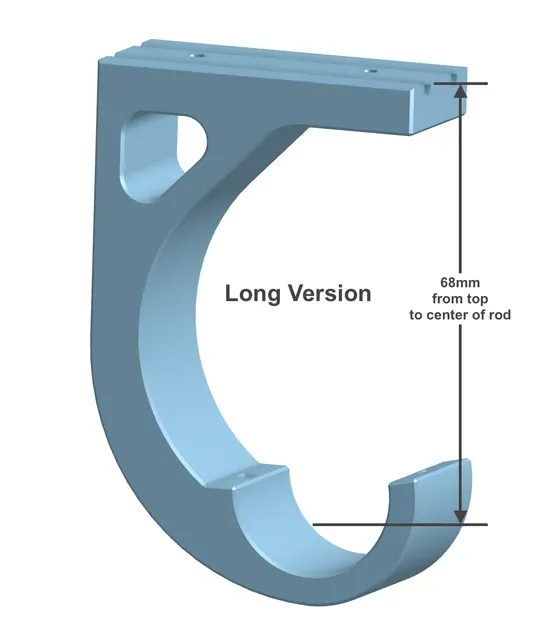

Wire Shelf Bar Hanger Bot Long - addition 30mm longer so bar hangs lower

Hanger Hook - holds open air spools. I use for PLA

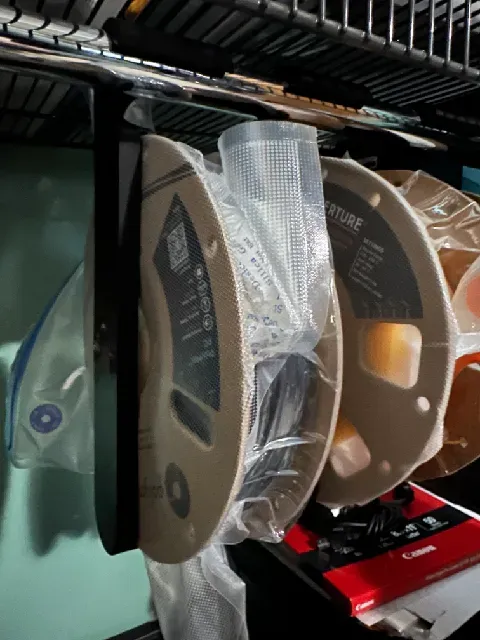

Hanger Slide - Two parts (so I can fit them on my Prusa Mini). I use this for my PETG filaments and NEW filaments still in a vacuum sealed bag. You just slide the top and bottom of the spool to hold it. Works well with vacuum bagged filaments. The Slide Hanger has built-in supports for the overhangs. You can just snap them right out after the print. They work great.

Hanger Slide Narrow - Use this with the skinner spools of filament. The top part that hangs on the bar is 40mm vs 50mm for the others.

Hanger Hook Holed - Just has a hole in the spool holder for printing less filament… plus it may be stronger because you have the perimeters on the outside and inside, but no testing was done.

Hanger Hook Holed Cutout - Just made some cutouts to save filament.

Hanger Slide Narrow Cutout - Just made some cutouts to save filament.

No Bag - This end is 1mm shorter and used to fit a spool without a vacuum bag. It holds a spool tightly. I would not glue these together. This is my go to holder now. I like the best.

Print Settings that I used - .30mm with 15% Gyroid infill. 2 or 3 perimeters is more than enough.

Created it OnShape. If you want to remodel, you can get a free OnShape account and copy the model or you can go to this link and download a STEP or any other kind of file you want - https://cad.onshape.com/documents/38dc3c5386b5a412814bc44e/w/55b2502b99010a7ab794e770/e/fb86a6c9f5b004e9054462a7?renderMode=1&uiState=64af5f7f5852282dd2ec9cb6

Check out Kerbers filament holder for wire shelves. Much simpler idea than mine. Good job Kerber - Filament Spool Holder for Wire Shelf by Kerber | Download free STL model | Printables.com
