SBox for MK2/3/4 - stackable toolbox system STEP

Sizes

All three sizes are fitted for Original Prusa i3 MK2/2.5/3

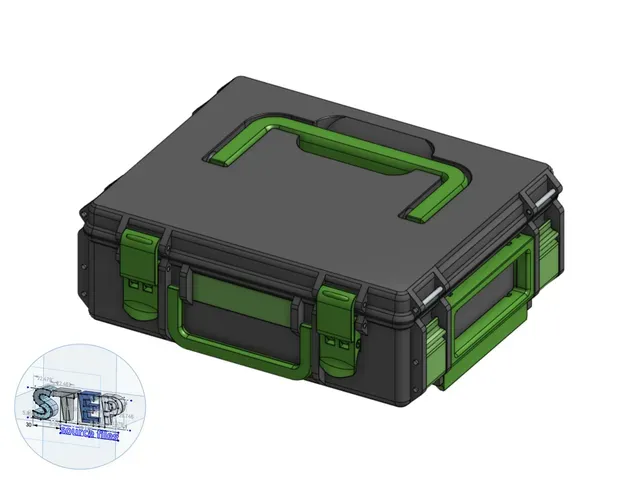

Small size - 245x205x80 mm

Medium size - 245x205x150 mm

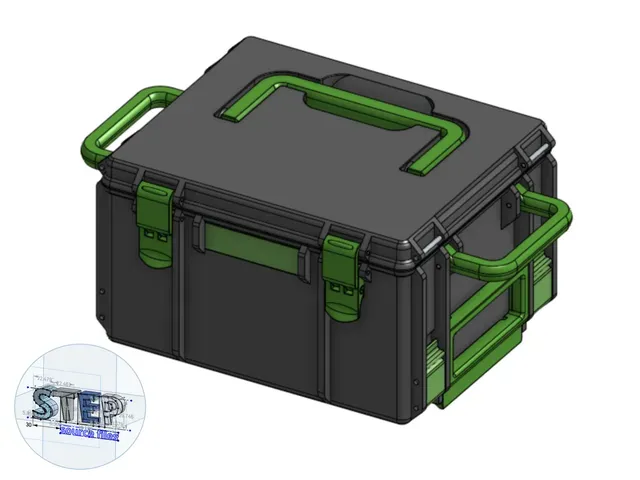

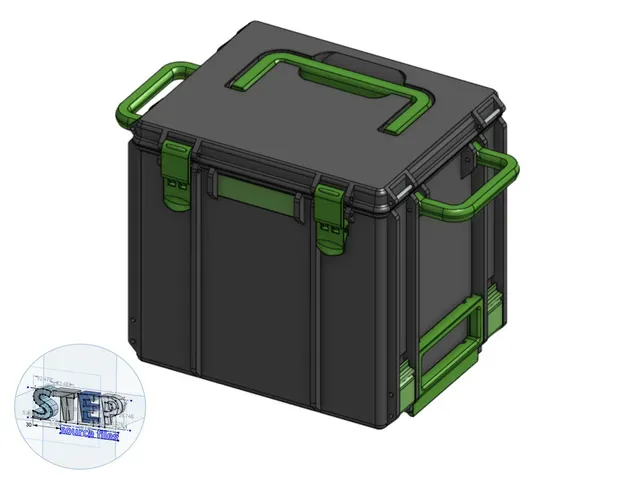

Large size - 245x205x220 mm

Only small size is equiped with front handle. Medium and large size can by optionally equiped with tiltable side top handles. All three sizes can be assembled with or without top handle (for medium and large size is recommended).

The smaller size of SBox for Original Prusa MINI is available - SBox for MINI - stackable toolbox system

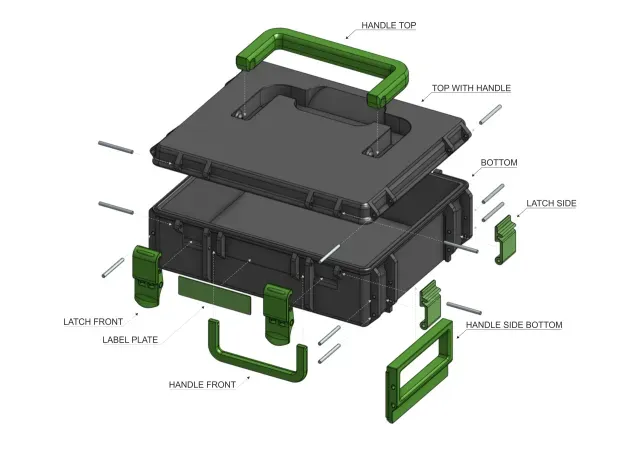

Assembly

list of non-printed parts

- 8 pcs - metal axis 36mm x (2.8 - 3)mm or M3 screw with internal hex head - 8 pcs - metal axis 39mm x (2.8 - 3)mm or M3 screw with internal hex head - 4 pcs - metal axis 22mm x (2.8 - 3)mm or M3 screw with internal hex head (for Medium and Large size) - 2 pcs - metal axis 24mm x (2.8 - 3)mm or M3 screw with internal hex head (for top with handle) - 2 pcs - metal axis 26mm x (2.8 - 3)mm (for hinges)
