Y.A.R.P.S (yet another raspberry pi stand)

UPDATED: 02/21/2019 - version 3 - with stand

STEP FILES INCLUDED! (please keep linking to source and remix if remixed!! i want to see what becomes of this group project) and please keep including your steps!

Added new version remixed 3.0 I recommend PETG .. stronger and more heat resistant.. but pla works fine

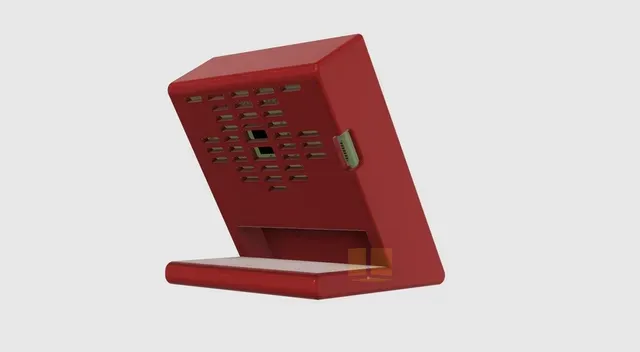

Removed some useless venting( tho it looked cool it wasted print time and the only ones needed were top row and heatsink punchout on the back)

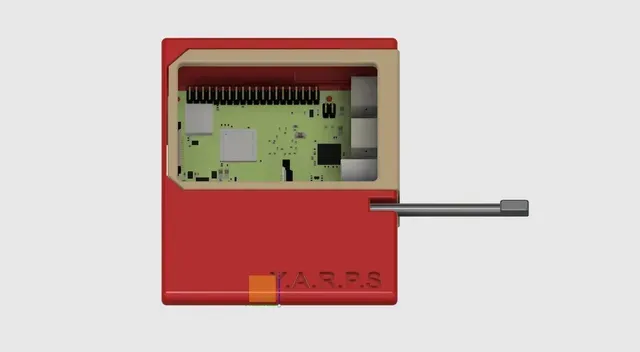

added Pen Slot (by request)

Added more room on base for wires

Added Punch out Hole in top for misc wiring needs ( requested)

Added YARPS name :)

Added passive cooling vents from underside to between screen and board to allow for convection airflow plan (heat rises causing cold air to be drawn in from underside)

(a small fan can be placed underside to move air faster if desired. but with the vents in the back top and the heat-sinks and the convection slot in the bottom it naturally makes airflow now.. )

Print instructions

Category: Electronics Summary

UPDATED: 02/21/2019 - version 3 - with stand

STEP FILES INCLUDED! (please keep linking to source and remix if remixed!! i want to see what becomes of this group project) and please keep including your steps!

Added new version remixed 3.0 I recommend PETG .. stronger and more heat resistant.. but pla works fine

Removed some useless venting( tho it looked cool it wasted print time and the only ones needed were top row and heatsink punchout on the back)

added Pen Slot (by request)

Added more room on base for wires

Added Punch out Hole in top for misc wiring needs ( requested)

Added YARPS name :)

Added passive cooling vents from underside to between screen and board to allow for convection airflow plan (heat rises causing cold air to be drawn in from underside)

(a small fan can be placed underside to move air faster if desired. but with the vents in the back top and the heat-sinks and the convection slot in the bottom it naturally makes airflow now.. )

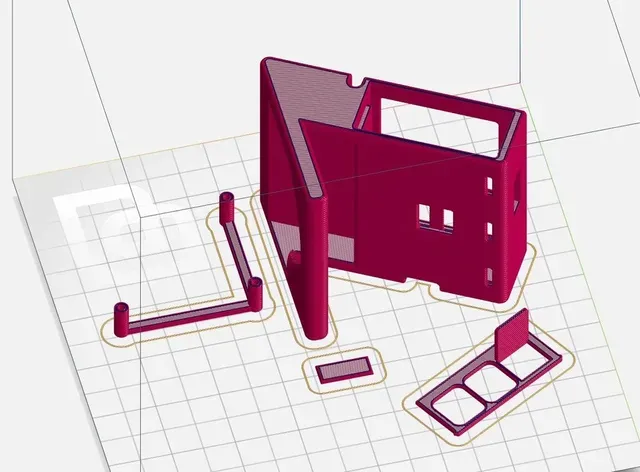

Print Settings

Printer:

p802ma

Rafts: Doesn't Matter

</div> Supports:

Doesn't Matter

Resolution: .1

</div> Infill:

15

Filament: Generic PETG red Notes:

should print fine without supports but i prefer to use tree supports and get a nice clean bridge....

Post-Printing

Use tree supports for a cleaner print.. and full fan on bridges.. shouldnt really need supports if you can bridge well
