Prusa MK4/MK4S X Motor Cable Protection

Model details

Platform
Printables
Price
Free
License
CC-BY-NC
Print and modify for yourself with credit; no selling the model or prints.
Formats
STL
  • 493 Likes
  • 1 792 Downloads
  • 130 Makes
  • 150 Comments
  • 7 538 Views

Author:dancan13f

Published

Download on Printables

Description

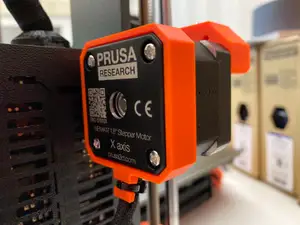

This is a cable protection for X motor on Prusa I3 MK4/MK4S.

The electrical wires are kept in good position.

Print Settings

1 x PrusaMK4_X_CableProtection : Layer:0.20mm Raft:no Support:no Infill:25%

1 x PrusaMK4_X_CableProtectionCover : Layer:0.20mm Raft:no Support:no Infill:25%

Accessories

1 x M3x18mm SHCS

2 x Rislan

Assembly

Fix the “PrusaMK4_X_CableProtection” with M3 screw on the X motor in the available threaded hole.

Fix the electrical wires (and the optional cover) with two rislans.

Update

27/07/2023

. New design for the “PrusaMK4_X_CableProtectionV2” file.

. Added the “PrusaMK4_X_CableProtectionCoverV2” file.
