Talon Fang U

Update 4-30-26: This blaster is now obsolete, as this is better in nearly every way https://www.printables.com/model/1699295-talon-fang-u-mk2-and-miniclaw-part-addons Though it does use parts from this.

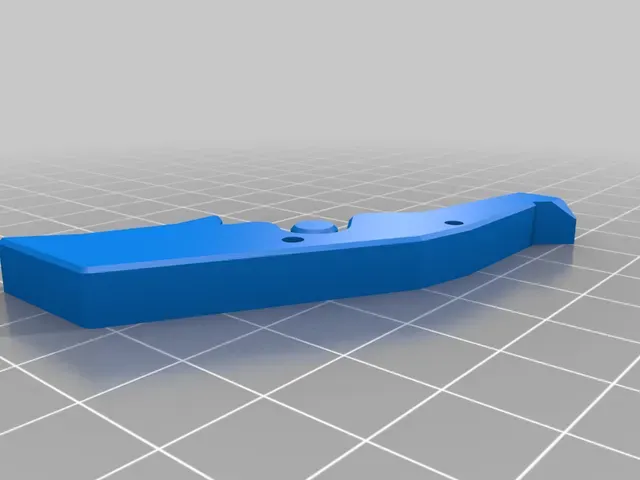

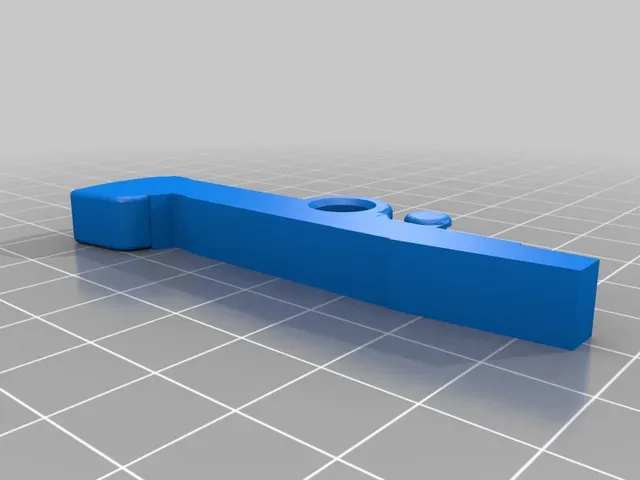

Update 1-29-20: Fixed trigger slop and wobble with Some Dingus's trigger remix dimensions.

Update 1-28-20: Added a 1 piece rifle u channel stl for people who have a super large printer.

Update 12-26-20: Removed TFU side grip as it doesnt work. Use the side grip from the talon fang short frontend. Removed 1 mm of material on Railback, aligned pic rail on Railback.

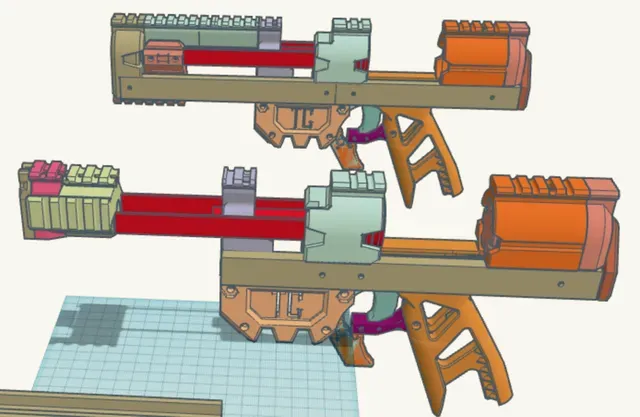

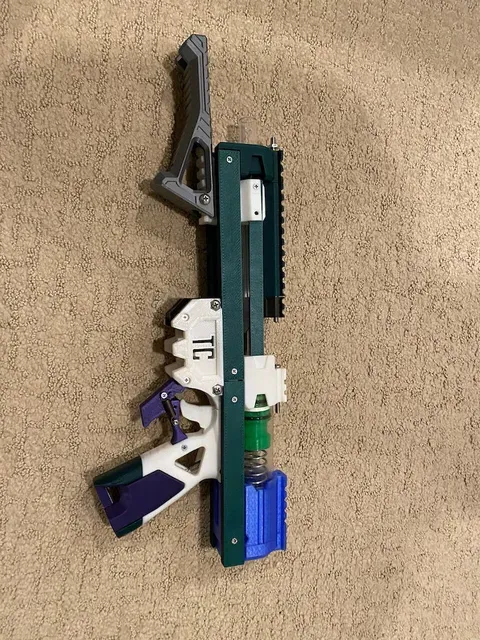

U-channeled my Talon Fang.

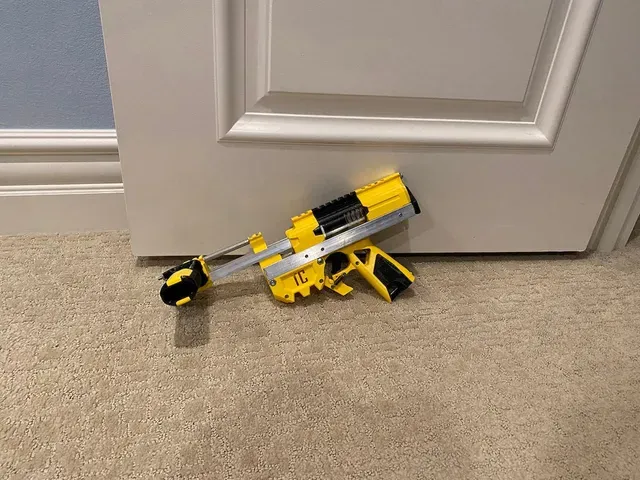

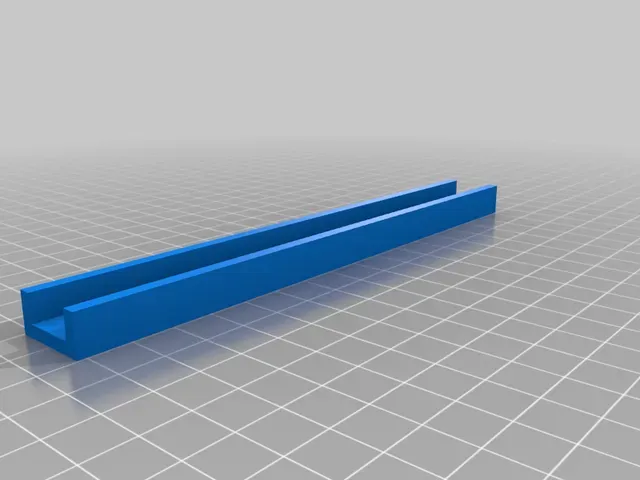

Highly recommended to use the printed channels to make an aluminum u-channel set. The pistol mode channel is for the shortened front-end setup. Uses the same hardware as the Talon Fang besides the U-channels and spring.

Springs are different due to a different backend and I used a 4.5 inch length of 788/k93 spring as a starter. I will update this section on springs that do or don't fit with what I have. Fit: K31 spring 788/k93 spring 4.5 inches, maybe 5 inches can work too.

Dont fit Retaliator spring, All types Kronos spring, All types

Remix of https://www.thingiverse.com/thing:4561938 https://www.thingiverse.com/thing:4584184 https://www.thingiverse.com/thing:3994669 https://www.thingiverse.com/thing:3230882

Print instructions

Print Settings

Printer Brand:

Prusa

Printer:

I3 MK3S

</div> Rafts:

No

Supports:

No

</div> Resolution:

.1-.32

Infill:

10-20

</div>

Notes:

Requires custom support for the mag back, on the overhang.

3-4 perimeters
