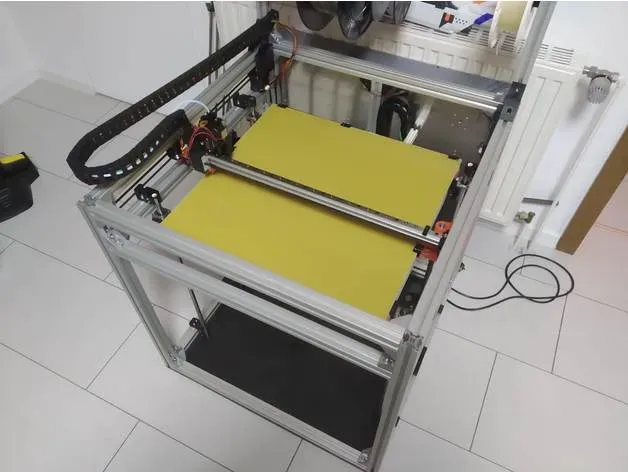

CoreBot - CoreXY 3D printer with linear rails
Model details
- Platform
Printables
- Price
- Free
- License
- CC-BY-SA
- Print, modify and sell with credit; share remixes under the same license.
- Formats
- STL
- 19 Likes
- 149 Downloads
- 0 Makes
- 0 Comments
- 6 827 Views
Description
I wanted to built a really reliable printer which is reade for the E3D tool changing mechanism, when it is finally realeased.
At first I planned to built a Hypercube / Hypercube Evolution but soon found I that the design was not stiff enough for the build area I was aiming for.
So I started optimising all parts and changed all linear guides to Hiwin Rails (MGN12 for y- and MGN9 for x-axis). While doing so I also added an "electronics compartment" on the back using 3060 aluminium extrusion.
The printer features a built area of roughly 500x500x500mm. The y-axis is optimised to allow space for the tool changing mechanism. I included an Excel Sheet so you may calculate the requiered length, if you aim for a smaller version.
For detailted instructions & bom have a look at the instructable:
https://www.instructables.com/id/CoreBot-CoreXY-3D-Printer/
