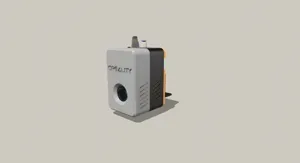

Tool head / Hot end Direct Drive BMG+ e3d V6 for Ernder 3 and similar printers
Model details
- Platform
Printables
- Price
- Free
- License
- CC-BY-NC-SA
- Non-commercial use only, with credit; share remixes under the same license.
- Formats
- STL
- 87 Likes
- 299 Downloads
- 2 Makes
- 11 Comments
- 3 401 Views
Description
Parts required :
Slim 23/20 mm thick stepper motor
BMG extruder /clone
E3D V6 hotend/clone
30x10 mm blower fan 24v recommend
M3x8mm bolts x 5
M3x16mm blots x2
M3x20mm bolts+nuts x2
M3 brass inserts x6
5x3 mm neodymium magnets
Modifications required:
Vent holes drilled in the aluminum carriage
One extra 3.5 mm hole drilled for fitting Body P1 to the carriage and Bracket P1 assembly
Offsets needed to be adjusted in firmware due to the nozzle changing position
