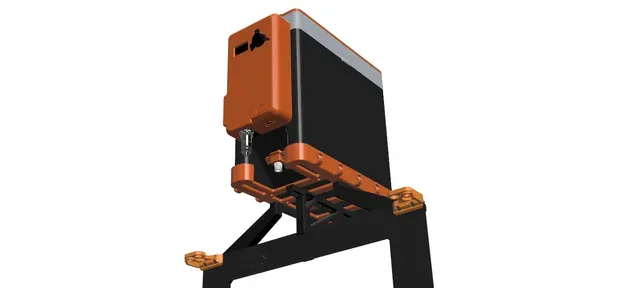

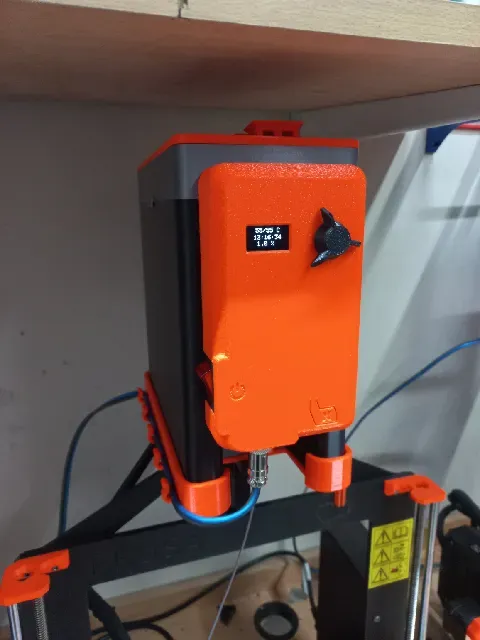

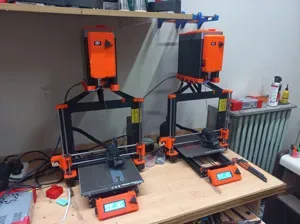

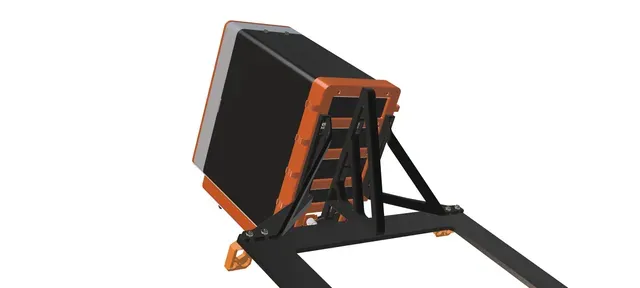

Filament diy dryer support for 3D printer

This support has been meticulously designed to seamlessly integrate with the "DIY Dehumidifier for 3D Printer Filaments" on an Original Prusa MK3S+ printer. Although I haven't had the opportunity to conduct a test run, I firmly believe that it can be equally compatible with an MK4 model.

Moreover, considering its dimensions, all the printed parts and components can be effortlessly fabricated utilizing an MK3S+ printer, employing either PLA or PETG filaments.

It is worth noting that some supplementary screws will be required for assembly; however, it is a noteworthy advantage that no modifications to the hardware are necessary.

Furthermore, this support boasts several strategically placed additional holes, facilitating its adaptability to other printer models through the utilization of T-nuts.

Currently, I am working on an additional support structure that will enable direct filament placement, when the filament dryer is not needed.

BOM

Description Reference Image Qty

1 printer_dryer_mount 1

2 bracket_center 1

3 bracket_left 1

4 bracket_right 1

5 M4 x 12 x 0,7 flat allen screw 6

6 DIN 912 M3 x 20 x 0,5 hex screw 4

7 M4 x 0,7 square nut 6

8 M3 x 0,5 hex nut 4

9 M3 x D8,2 x h1,3 mm washer (thick washer) 4

Assembly

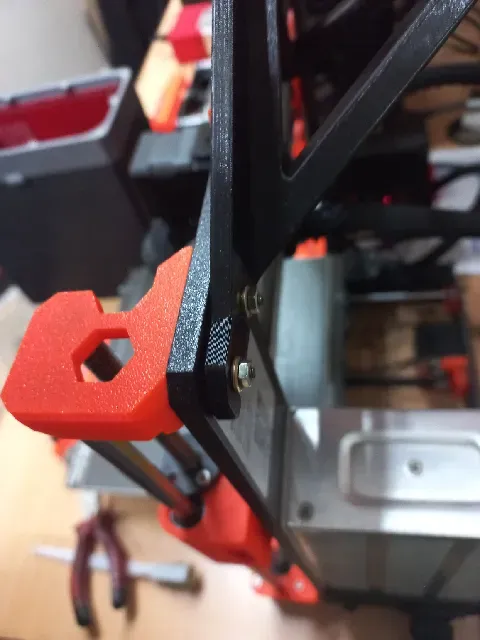

- One at a time, replace the 2 M3x12x0.5mm screws holding the "Z-axis-top-left" with 2 M3x20x0.5mm screws. - Using the M4 flat screws ant the M4 square nut, assemble the printed parts together. - Position the assembly over the frame and onto the M3x12mm screws, securing it using the M3 nuts and washers. - The power supply cable can be placed on either side of the bracket. I hope you find this useful.

Happy printing.

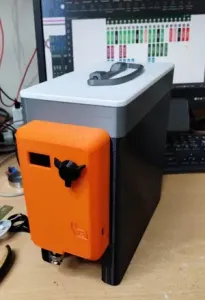

DIY Dehumidifier for 3D Printer Filaments

https://www.printables.com/model/494417-diy-dehumidifier-for-3d-printer-filaments

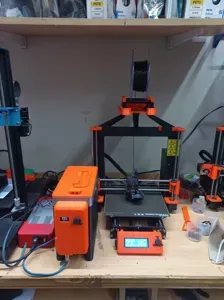

Filament spoolholder for dryer support (on 3D printer)

If you need to continue printing while drying filment at the same time, you can check this model:

https://www.printables.com/model/587294-filament-spoolholder-for-dryer-support-on-3d-print
