Darth Maul (split model)

Remix of the excellent Darth Maul model (also a remix).. The original has a complete model version and a piece part version (very tedious to glue together).. This is a two piece version for easier printing, with the left arm and saber separate from the body.

This model needs a LOT of support. The original complete model needs a ton of support under the left arm and light saber, causing a super long print time and a high chance of failure.

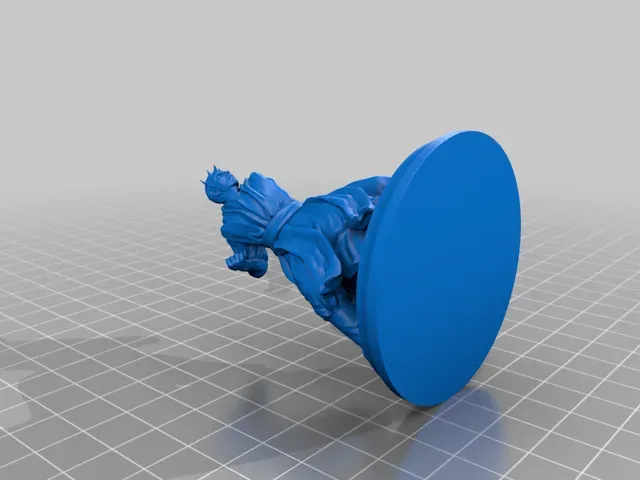

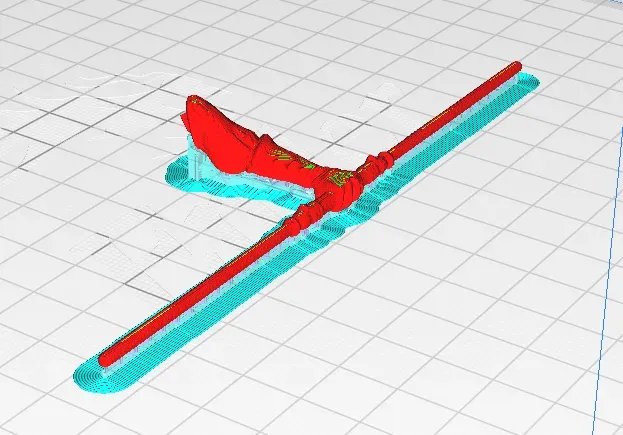

I split the arm and saber into a separate file (see image) that can be placed flat on the print bed (see screen grab of slicer) and printed with much less supports, and a much quicker print time. The main body should be printed flat on the base.

Be aware,, even split, the main body will need good supports under all the robes and right arm.

(note: the model has the full base, but I printed it (see image) with only the top of the base showing)

Print instructions

Category: People Summary

Remix of the excellent Darth Maul model (also a remix).. The original has a complete model version and a piece part version (very tedious to glue together).. This is a two piece version for easier printing, with the left arm and saber separate from the body.

This model needs a LOT of support. The original complete model needs a ton of support under the left arm and light saber, causing a super long print time and a high chance of failure.

I split the arm and saber into a separate file (see image) that can be placed flat on the print bed (see screen grab of slicer) and printed with much less supports, and a much quicker print time. The main body should be printed flat on the base.

Be aware,, even split, the main body will need good supports under all the robes and right arm.

(note: the model has the full base, but I printed it (see image) with only the top of the base showing)

Print Settings

Printer Brand:

Creality

Printer: Ender 3

</div> Rafts:

No

Supports: No

</div> Resolution:

.16

Infill: 20%

</div>

Filament:

[

Eryone pla ](http://www.amazon.com/s?url=search-alias&field-keywords=Eryone+pla&tag=tv-business-20) black How I Designed This

Mesh Mixer

Used Mesh Mixer to separate the model
