Description

Integrated camera and Endstop holder for Ratrig V-Core 3.0 and V-Core 3.1; very space efficient. Replaces the existing X-Endstop holder.

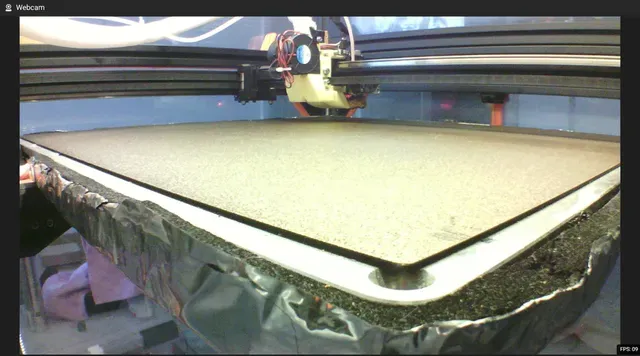

This one was developed for a cheap USB camera:

USB-Kameramodul 3-Megapixel HD Webcam Kameramodul Mini UVC USB2.0 Webcam Karte mit Kabelunterstützung 2048 x 1536 15 fps : Amazon.de: Computer & Zubehör

May be used for any PCBA based cameras with minimal adjustment.

May be mirrored for use on the other side.

1 heat sink M3 nut required for the camera holder. Fix the camera cable with 1 zip tie.

Fix with 2 M3 wing nuts (such as the attached ones).

BOM:

1 Camera_Endstop_Holder + Melted in Heat sink M3 nut

1 Unterlegscheibe

2 M3 Rotation nuts + Pressed in M3 Nuts

Fix Camera_Endstop_Holder to 3030 Profile: 1 Flathead M3 screw: 10 mm on the left and 1 M3 washer + M3 flathead screw: 12 mm on the right.

Fix Endstop to Camera_Endstop_Holder: 1 M3 washer + M3 flathead screw: 12 mm (tighten thoroughly).
